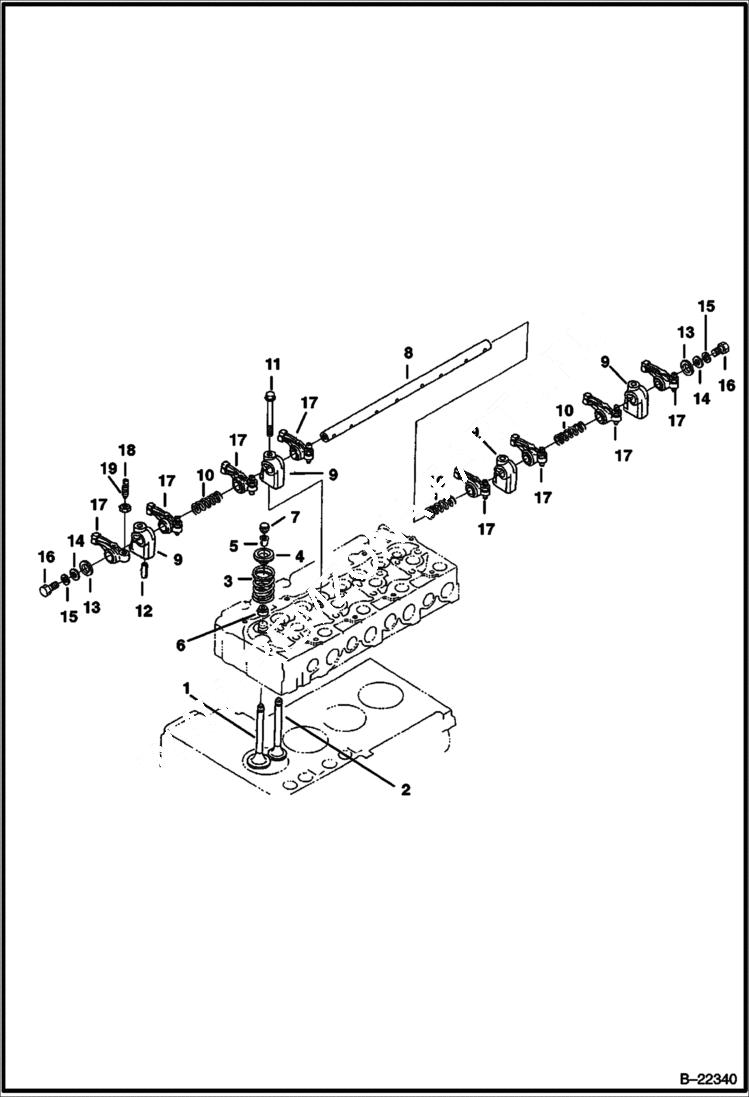

Запчасти Bobcat 435 VALVE & ROCKER ARM (S/N 562611001 & Above) POWER UNIT

1

6684872

VALVE inlet

2

7020386

VALVE exhaust - Was 6684873 - A

3

3974514

SPRING 5

4

3974515

RETAINER

5

6684874

COLLAR valve spring - set of 2

6

6653830

SEAL, STEM VALVE valve - Was 3974517 - A

7

CAP valve

8

6684875

SHAFT

9

3974521

MOUNT

10

3974525

SPRING, ROCKER ARM

11

6680685

BOLT

12

6667461

PIN

13

6680766

WASHER

14

WASHER NLA - Was 1EM000050B - A

15

6667422

WASHER spring

16

5CM812

BOLT

17

6655870

ROCKER ARM assy - W/Ref. 18 & 19

18

3974920

SCREW

19

2DM8

NUT Was 6680874 - A
