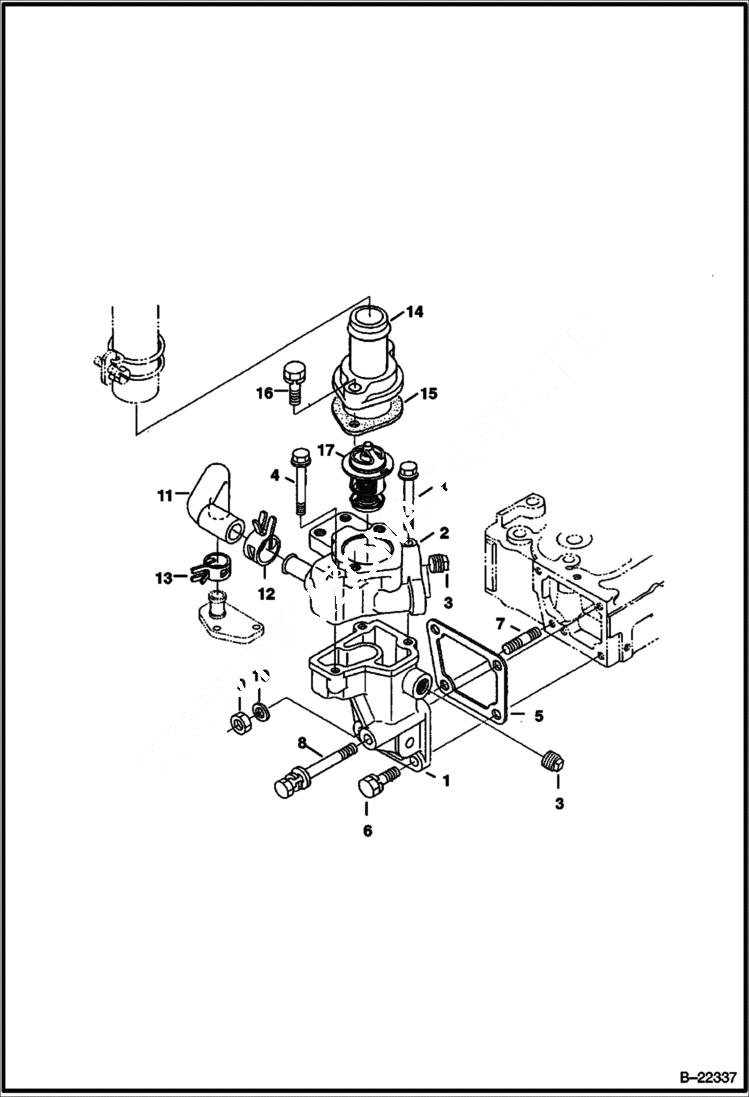

Запчасти Bobcat 435 WATER FLANGE & THERMOSTAT (S/N 562611001 & Above) POWER UNIT

1

FLANGE NLA - Order 6684854 - Was 6684855 - A

1

6684854

FLANGE ASSY water

2

FLANGE NLA - Order 6684854 - Was 6684856 - A

3

6684857

PLUG

4

6684859

BOLT flange

4

6684858

BOLT flange

5

6666802

GASKET Was 6684860 - A

6

4CM822

BOLT

7

6652670

STUD Was 3974916B - A

8

6684861

BOLT

9

6652792

NUT

10

6667422

WASHER spring

11

6684862

PIPE water return

12

6680903

CLAMP hose

13

6684889

CLAMP hose

14

6598118

COVER thermostat

15

6684863

GASKET

16

1CM835

BOLT

17

6684864

THERMOSTAT thermostat
