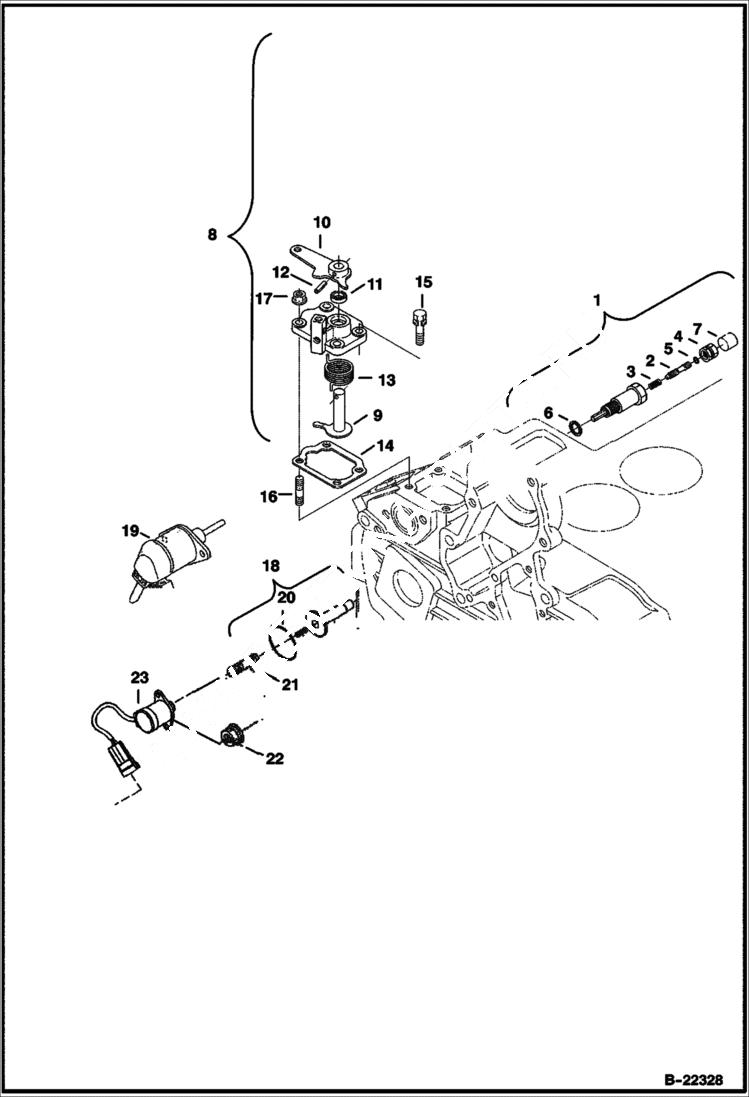

Запчасти Bobcat 435 ENGINE STOP LEVER (S/N 562611001 & Above) POWER UNIT

1

6684815

IDLING ASSY fuel - W/Ref. 2 - 7

2

6684816

BOLT, ADJUSTING

3

3974977

SPRING

4

6684817

NUT

5

6684891

SEAL

6

6684818

SEAL

7

6684819

CAP

8

6684820

LEVER W/Ref. 9 - 13

9

6684821

LEVER

10

6684822

LEVER

11

6685476

SEAL oil - Was 6598703 - B

12

6589098

PIN

13

6684823

SPRING

14

6684841

GASKET Was 6684824 - A

15

1CM620

BOLT Was 4CM620 - A

16

6652764

STUD Was 3974462B - A

17

6670533

NUT Was 6653561 - A

18

6684825

GUIDE, SOLENOID

19

SOLENOID NLA- fuel shutoff W/molded connector - Order Ref. 23 - Was 6684826 - A

20

6677915

SEAL

21

6652764

STUD Was 3974462B - A

22

6684827

NUT

23

6691498

SOLENOID, SHUTOFF FUEL 240 mm (9.45'') lead
