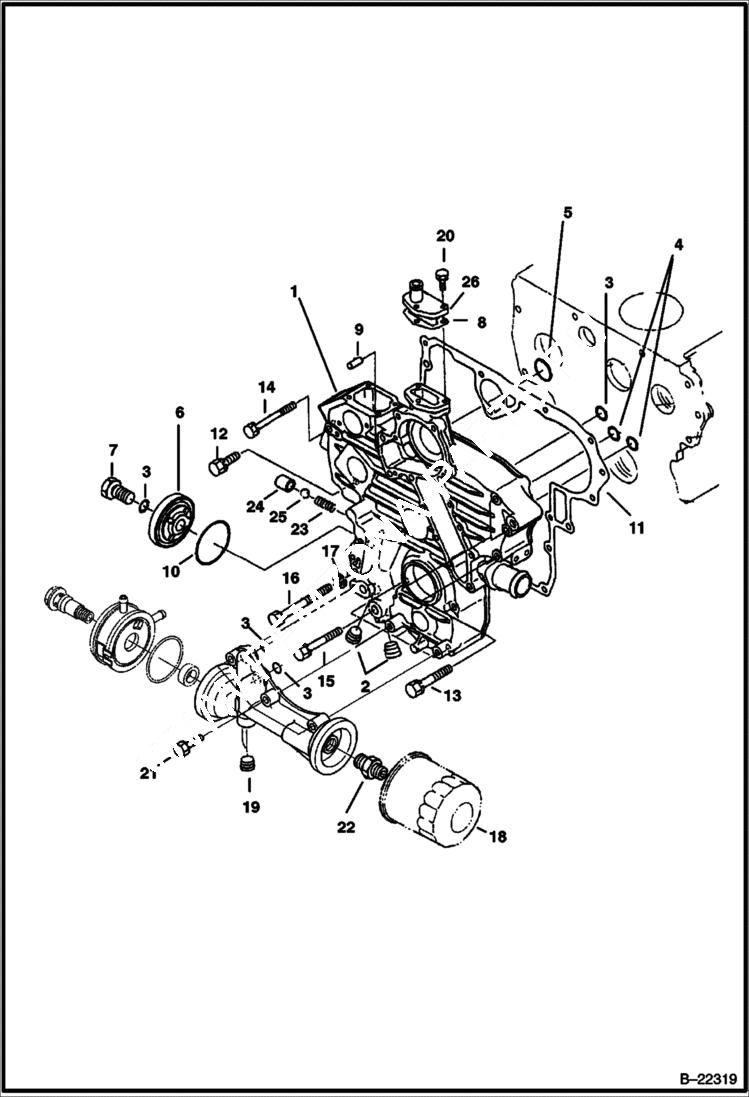

Запчасти Bobcat 435 GEARCASE (S/N 562611001 & Above) POWER UNIT

1

GEAR CASE NLA - Gearcase - Order (1) ea of 6689717, 6685466,6684766,6689718,6684769 & (2) ea of 6685467 & 3974395 - W/Ref. 2-10 - Was 6684764 - A

1

HOUSING NLA - gearcase - W/Ref. 2-10 - Was 6685523 - A

2

6672360

PLUG

3

6670769

O-RING

4

6680661

O-RING

5

6684765

O-RING

6

6684766

COVER

7

6684767

BOLT

7

6684768

BOLT

8

6666803

GASKET water return flange - Was 6684774 - A

9

3974395

PIN

10

6684769

O-RING

11

6684770

GASKET gearcase

12

1CM835

BOLT

13

6680562

BOLT

14

6684771

BOLT

15

6653807

BOLT

16

6684772

BOLT

17

6667422

WASHER

18

6675517

FILTER, OIL ENG 12 Was 6684783 - A

19

6672360

PLUG

20

1CM620

BOLT Was 4CM620 - A

21

6680593

BOLT

22

6653809

CONNECTOR pipe - Was 3974891 - A

23

6652652

SPRING

24

3974893

SEAT valve

25

10J13

BALL

26

3974894

FLANGE water return
