Запчасти Bobcat 435 SWING CYLINDER (692 mm - 27.23) HYDRAULIC/HYDROSTATIC SYSTEM

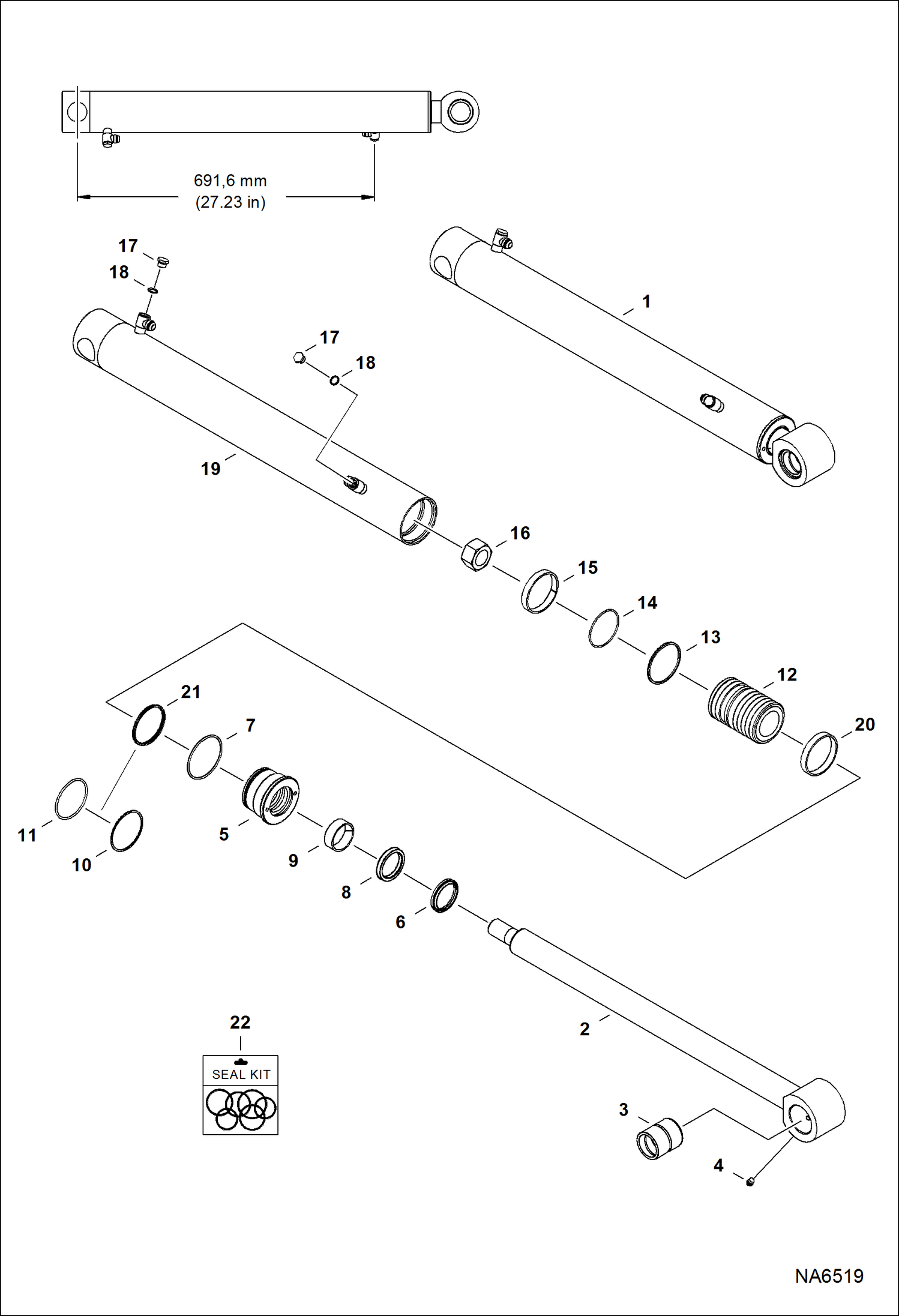

Схема запчастей Bobcat 435 - SWING CYLINDER (692 mm - 27.23) HYDRAULIC/HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7161469

CYLINDER, SWING Ref. 2, 4-20 - Also Order Ref. 3 & (2) 6669287 dust seals

2

7146690

ROD Also Order Ref. 3, 4 & (2) 6669287 dust seals

3

6812645

BUSHING

4

10H25

FITTING, GREASE 5 grease

5

6818158

HEAD

6

6686998

WIPER, ROD CYL

7

82K236

O-RING

8

6667328

SEAL

9

7000772

RING, WEAR Was 6698134 - A

10

73K234

BACK-UP RING

11

58K234

O RING 10

12

7147313

PISTON

13

25K30226

O RING 10

14

6513466

PISTON RG

15

7000777

RING, WEAR Was 6698179 - A

16

6810540

NUT

17

6812171

PLUG W/Ref. 18

18

75K6

O-RING

19

6812638

HOUSING Also Order Ref. 20

20

7161470

SPACER

21

7008354

SEAL, QUAD

22

7161903

KIT, SEAL Ref. 6-9, 13-16, & 21 - Was 7156129 - A

Выбрано товаров: 22
