Запчасти Bobcat 435 CONTROL VALVE (Blade Section) HYDRAULIC/HYDROSTATIC SYSTEM

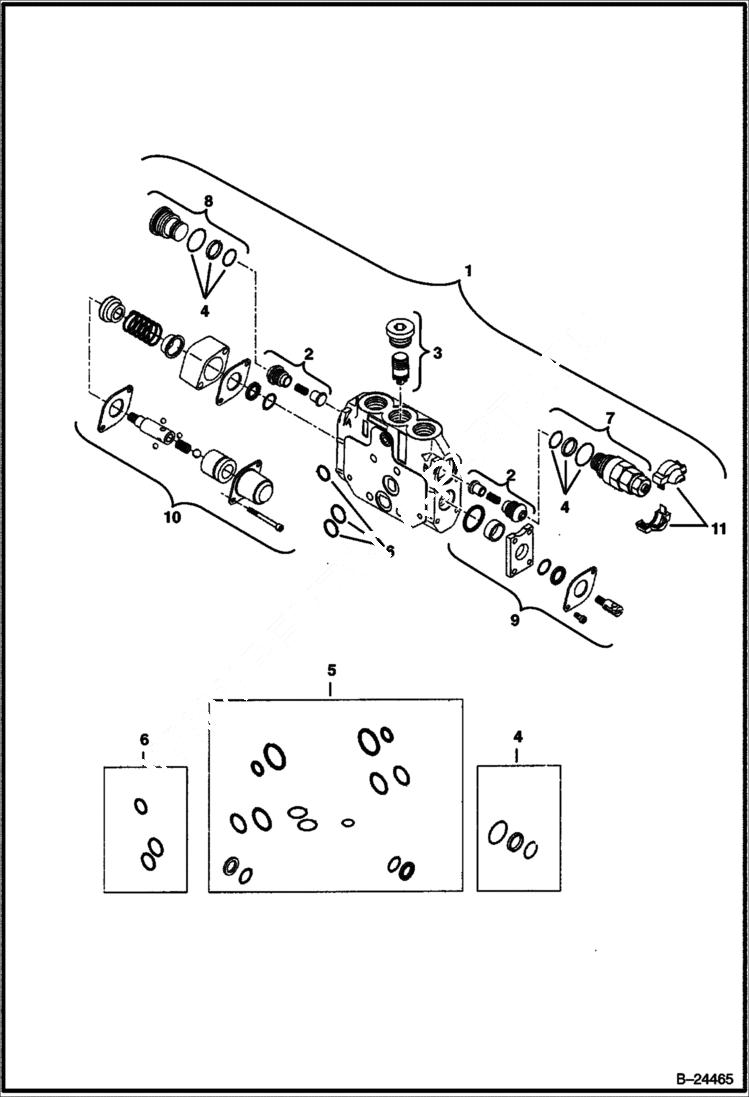

Схема запчастей Bobcat 435 - CONTROL VALVE (Blade Section) HYDRAULIC/HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

VALVE NLA - assy - blade - .875 press port - order 6686640 valve assy, 15KB1008 & 16KB1008 adapter

1

2

6677689

CHECK VALVE check valve - Was 6686595 - A

3

6677690

KIT, COMPENSATOR pressure - Was 6686896 - A

3

6685248

PLUG allen

4

6677468

SEAL KIT Was 6685256 - A

5

6677470

SEAL KIT assy - Was 6685264 - A

6

6677467

KIT, SEAL Was 6685259 - A

7

6685249

VALVE,RELIEF assy - Was 6686897 - A

8

6677471

PLUG ASSY Was 6685250 - A

9

6685253

END CAP assy (B port)

10

6686901

END CAP assy (A port)

11

6678023

COVER half

Выбрано товаров: 13
