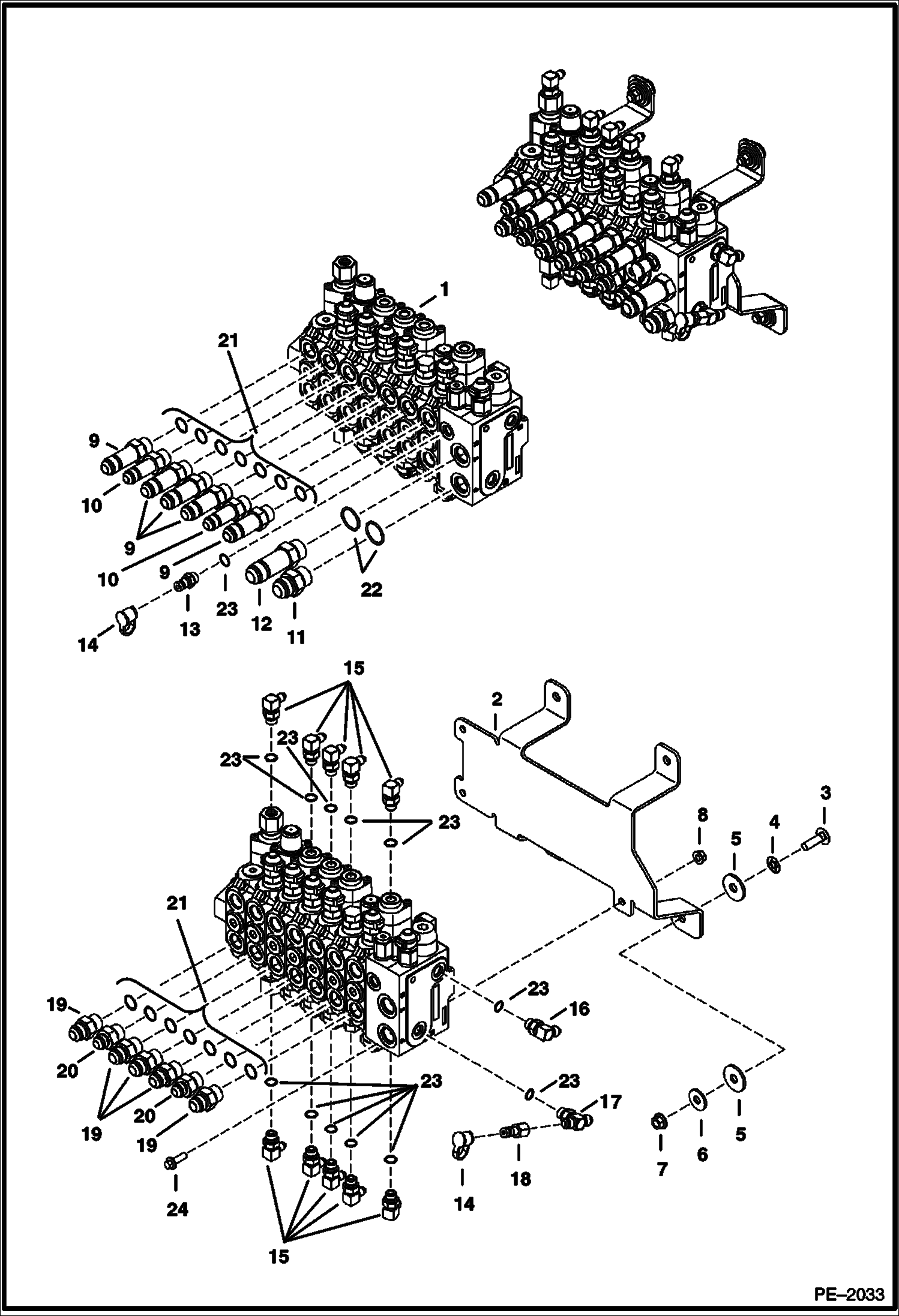

Запчасти Bobcat 435 CONTROL VALVE (S/N 562611001 & Above and 5628 11020 & Below) HYDRAULIC/HYDROSTATIC SYSTEM

1

VALVE See Illustration CONTROL VALVE/ PE2033A NLA - assy - Order 6685662 valve - Was 6682417 - A

2

6811362

MOUNT

3

21CM1035

BOLT

4

6674264

RETAINER NUT

5

6806720

INSULATOR

6

17EM100

WASHER

7

51DM10

NUT

8

43DM8

NUT

9

16K7

FITTING W/Ref. 21 - Was 16KB01010B - B

10

7101028

CONNECTOR W/Ref. 21 - Was 16KB00810B - B

11

15KB1212

FITTING, HYD CONNECTOR W/Ref. 22

12

16KB1212

FITTING, HYD CONNECTOR W/Ref. 22

13

6630168

COUPLER diagnostic - W/Ref. 23

14

6630367

CAP dust

15

17KB0406

FITTING, HYD ELBOW W/Ref. 23

16

17KB0606

FITTING W/Ref. 23

17

19KB0606

TEE W/Ref. 23

18

6661753

PLUG diagnostic

19

15K7

FITTING W/Ref. 21 - Was 15KB01010B - B

20

731794

CONNECTR W/Ref. 21 - Was 15KB00810B - B

21

79K10

O RING 10

22

79K12

O RING 10

23

79K6

O RING 10

24

29CM825

BOLT
