Запчасти Bobcat 435 SWING MOTOR (Modified Design)(R921810501) (S/N 562811001 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

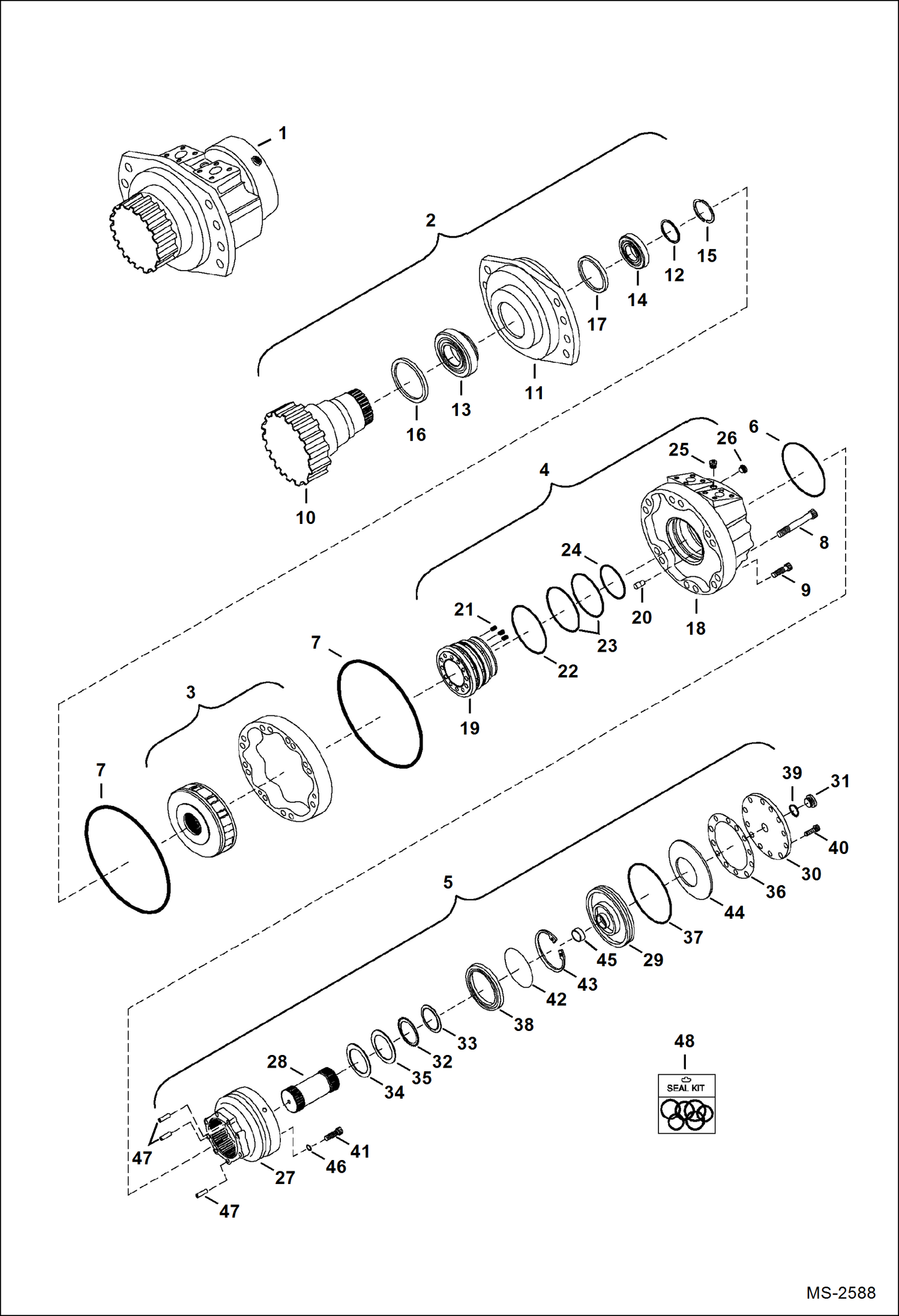

Схема запчастей Bobcat 435 - SWING MOTOR (Modified Design)(R921810501) (S/N 562811001 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6689391

MOTOR, HYD SLEW W/Ref. 2-47

2

6684715

CASE

3

6691250

ROTARY GROUP

4

6691251

CASE

5

6691252

BRAKE

6

6675195

SEAL

7

6674029

SEAL

8

6687080

SCREW Was 6691253 - A

9

6690039

SCREW

10

6687074

SHAFT

11

6684719

HOUSING

12

WASHER NLA

13

6684933

BEARING

14

6677865

BEARING Was 6686366 - A

15

6677849

RING

16

6684721

SEAL

17

6678135

SEAL

18

6691255

CASE

19

6674184

RING

20

6675189

PIN

21

6674037

SPRING

22

6674038

SEAL

23

6675228

SEAL

24

6674040

SEAL W/ O-ring - 87,15 mm I.D.

25

6689129

PLUG

26

6691256

PLUG

27

6691257

BRAKE

28

6674189

SHAFT

29

6676406

PISTON

30

6674199

COVER

31

6674707

PLUG

32

6674192

BRAKE DISC

33

6679780

DISC

34

6690089

SHIM 0,1 mm - Was 6674190 - D

35

6674191

SHIM 0,3 mm - Was 6674191 - D

36

6675892

GASKET

37

6684722

RING

38

6689088

QUAD RING

39

6687082

O-RING

40

6690095

SCREW

41

6684724

SCREW Was 6691258 - D

42

6689089

O-RING

43

6690094

CLAMP

44

6675897

WASHER

45

6674196

BUSHING

46

6674194

WASHER

47

6698076

PIN

48

6691254

SEAL KIT W/Ref. 6, 7, 16, 17, 22-24 36, 37, 39 & 42 - Also Order Ref. 38

Выбрано товаров: 48
