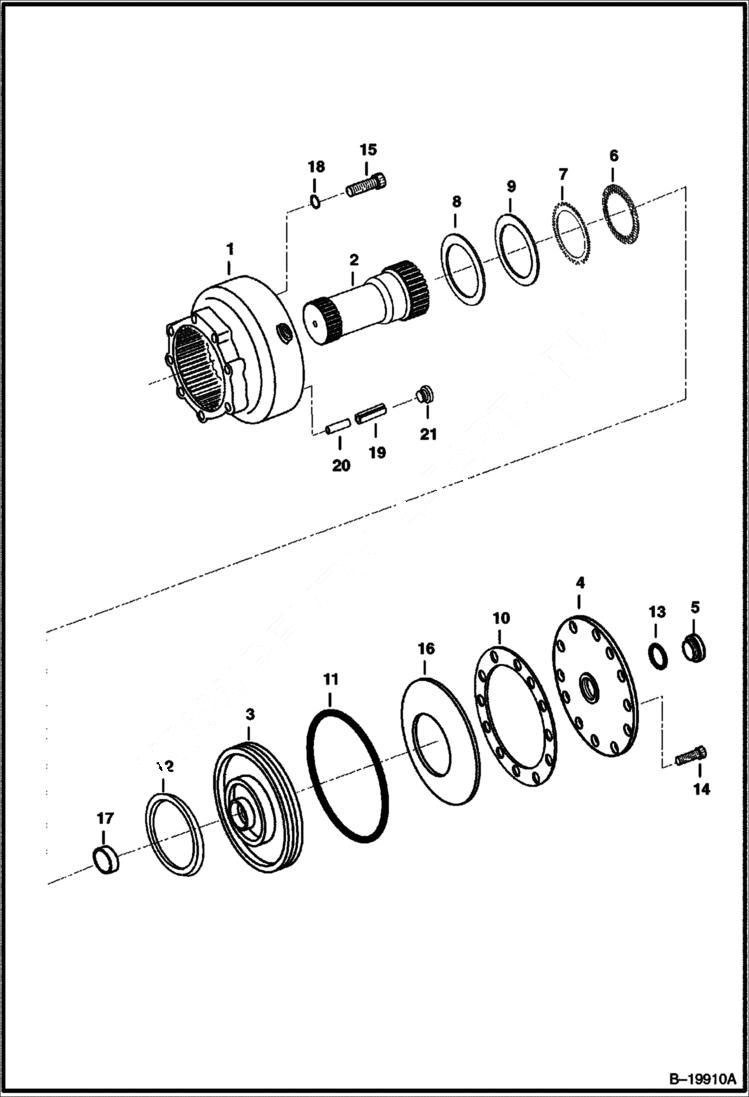

Запчасти Bobcat 435 SWING MOTOR (Original Design)(R921810277) (S/N 562811001 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

1

6679779

HOUSING

2

6674189

SHAFT

3

6676406

PISTON

4

6674199

COVER

5

6674707

PLUG

6

6674192

BRAKE DISC brake - outer

7

6679780

DISC brake - inner

8

6690089

SHIM 0,1 mm - Was 6674190 - D

9

6674191

SHIM 0,3 mm - Was 6674191 - D

10

6675892

GASKET

11

6684722

RING square

12

6675894

SEAL outer

13

6674705

O-RING Was 6687082 - A

14

6687083

SCREW Was 6675895 - A

15

6684724

SCREW Was 6687084 - D

16

6675897

WASHER

17

6674196

BUSHING

18

6674194

WASHER

19

6679781

PIN roll

20

6679782

PIN spring

21

6687085

PLUG
