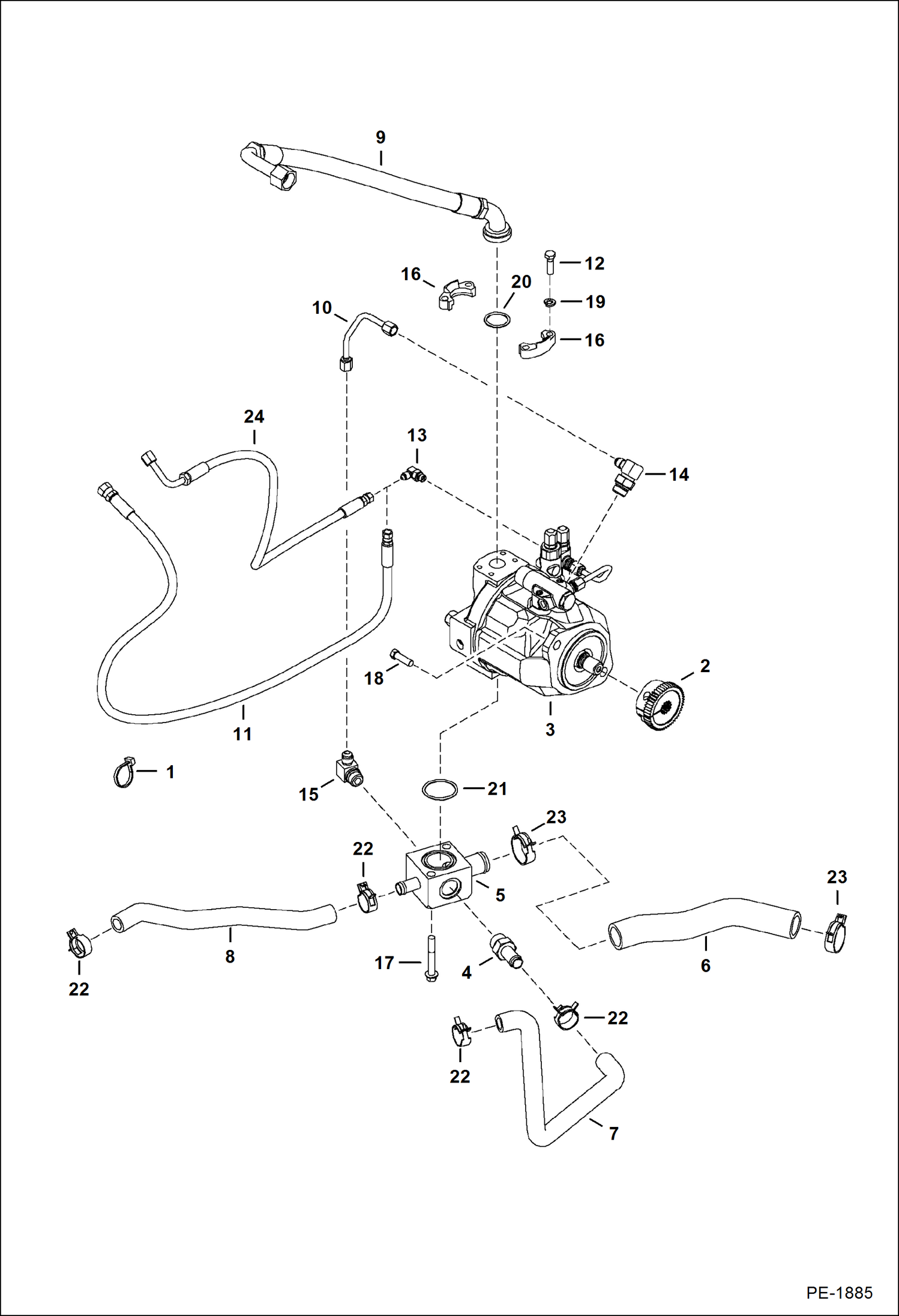

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Hydraulic Pump) HYDRAULIC/HYDROSTATIC SYSTEM

1

6624289

STRAP, TIE

2

6676535

COUPLER

3

6682414

PUMP

4

6812865

FITTING

4

79K12

O RING 10

5

MANIFOLD NLA - W/brazed tube - Order 6814414 manifold & 6812865 fitting

5

6814414

MANIFOLD - A

6

6814663

HOSE

7

6814810

HOSE

8

6814942

HOSE

9

6815429

HOSE

10

6815889

TUBE

11

7102584

HOSE

12

17C620

BOLT

13

17KB0404

FTG HYD ELBOW 90

13

79K4

O RING 10

14

17KB1010

FITTING, HYD ELBOW

14

79K10

O RING 10

15

17KB1012

FITTING, HYD ELBOW

15

79K12

O RING 10

16

19J16

FLANGE

17

17C848

BOLT

18

29CM1235

BOLT

18

29CM1435

SCREW

19

4E6

WASHER

20

58K219

O RING 10

21

58K225

O RING 10

22

5HM29

HOSECLAMP

23

5HM42

HOSECLAMP

24

6815428

HOSE
