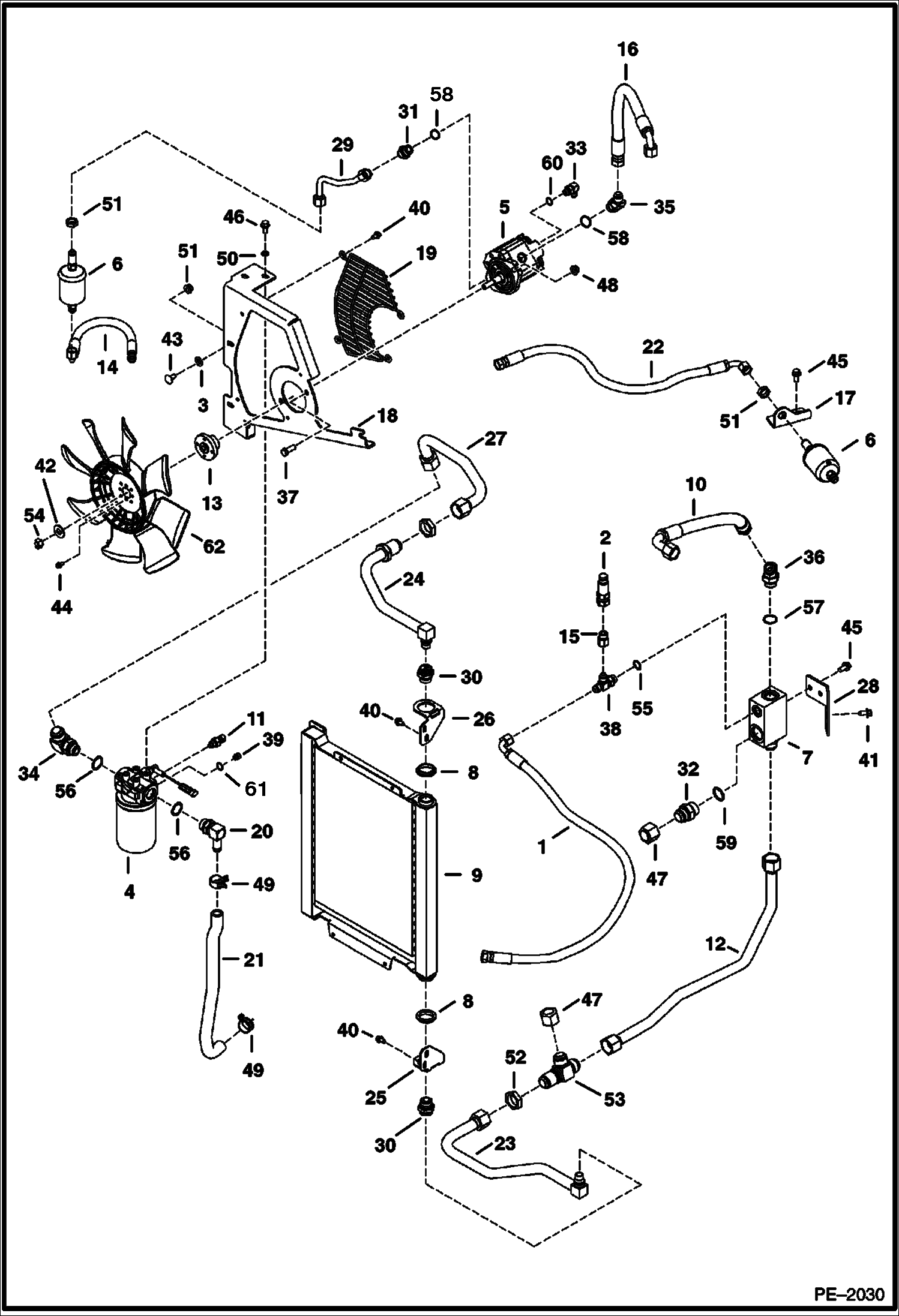

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Cooler/Filter) HYDRAULIC/HYDROSTATIC SYSTEM

1

6618216

HOSE

2

6667806

COUPLER

3

6674264

RETAINER NUT

4

FILTER NLA - assy - Order 6688385 filter assy & 6668819 filter - replace existing short filter (5.5'' long) with longer 6668819 filter (9'' long) - Was 6676969 - A

4

6668819

FILTER, OIL HYD hydraulic - 9.5 (241,3 mm) long

5

MOTOR See Illustration FAN MOTOR/ B24364 - Was 6686269 - A

6

6681012

FILTER, OIL HYD IN-LINE in-line

7

6681586

VALVE pressure build-up

7

6681968

SPRING

7

6681969

POPPET

7

6676044

ADAPTER

8

6681623

BUSHING

9

6683316

EXCHANGER heat hyd.

10

6815433

HOSE Was 6684365 - A

11

6727869

SENDER,HYD TEMP

12

6811696

TUBE

13

6812390

HUB 1.42'' (36 mm) long - Use W/ 6683810 fan

14

6812731

HOSE

15

6812828

ADAPTER W/Ref. 55

16

6813201

HOSE

17

6814286

BRACKET filter

18

6814287

MOUNT fan

19

6814288

GUARD fan

20

6814419

FITTING W/Ref. 56

21

6814421

HOSE

22

6814660

HOSE

23

6815879

TUBE

24

6815880

TUBE

25

6815881

BRACKET

26

6815882

BRACKET

27

6815883

TUBE

28

6815885

BRACKET

29

6815893

TUBE

30

10L1212

ADAPTER W/Ref. 57 - to std

31

15KB0810

FITTING, HYD CONNECTOR W/Ref. 58

32

15KB1616

FITTING, HYD CONNECTOR W/Ref. 59

33

17KB0406

FITTING, HYD ELBOW W/Ref. 60 - Was 17KB00606B - B

34

17KB1612

FITTING, HYD ELBOW W/Ref. 56

35

18KB1010

FITTING, HYD ELBOW W/Ref. 58

36

18KB1212

FITTING, HYD ELBOW W/Ref. 57

37

1CM1030

BOLT

38

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 55

39

24K2

PLUG W/Ref. 61

40

26GM8016

SCREW

41

26GM10020

BOLT

42

27E8

WASHER 10

43

28CM1020

BOLT

44

29CM616

BOLT

45

29CM1020

BOLT

46

35C612

BOLT

47

36K10

CAP

48

51DM10

NUT

49

5HM29

HOSECLAMP

50

6E6

WASHER

51

86F6

NUT

52

86F10

NUT

53

91K10

FITTING

54

95D8

NUT

55

79K8

O RING 10

56

79K12

O RING 10

57

78K12

O-RING

58

79K10

O RING 10

59

79K16

O RING 10

60

79K6

O RING 10

61

79K3

O RING 10

62

6683810

FAN 8 blade
