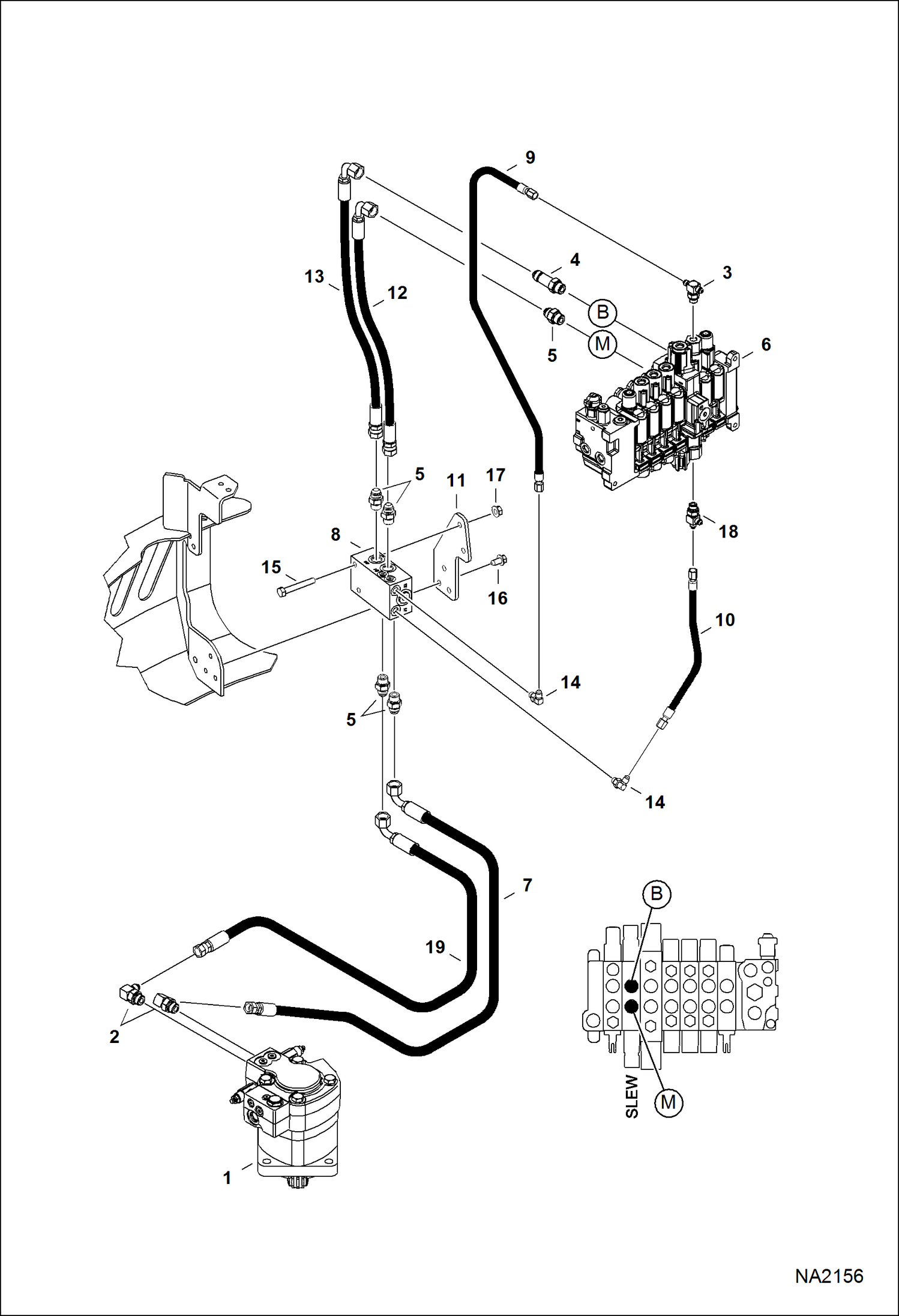

Запчасти Bobcat 430 EUROPEAN ACCESSORIES (Slew Lock) ACCESSORIES & OPTIONS

1

7001957

MOTOR, DRIVE HYD SLEW See Illustration SWING MOTOR/ MS1847 - bearing not included with motor - Also Order (1) 6513681 bearing - Was 6687118 - A

2

17KB0608

FITTING, HYD ELBOW

2

79K8

O RING 10

3

19KB0406

FITTING, HYD TEE

3

79K6

O RING 10

4

16KB0808

FITTING, HYD CONNECTOR

4

79K8

O RING 10

5

15KB0808

FITTING, HYD CONNECTOR

5

79K8

O RING 10

6

6689572

VALVE See Illustration CONTROL VALVE/ MS1476

7

6817819

HOSE

8

7003480

VALVE, LOCK SLEW See Illustration EUROPEAN ACCESSORIES/ NA1334

9

7106611

HOSE

10

7107657

HOSE

11

7171170

BRACKET, VALVE

12

7173177

HOSE, HYD ASSY

13

7173178

HOSE, HYD ASSY

14

17KB0404

FTG HYD ELBOW 90

14

79K4

O RING 10

15

1CM1070

BOLT

16

26GM10020

BOLT

17

51DM10

NUT

18

21KB0406

FTG HYD STRAIGHT TEE

18

79K6

O RING 10

19

6815033

HOSE
