Запчасти Bobcat 430 BOOM WORK EQUIPMENT

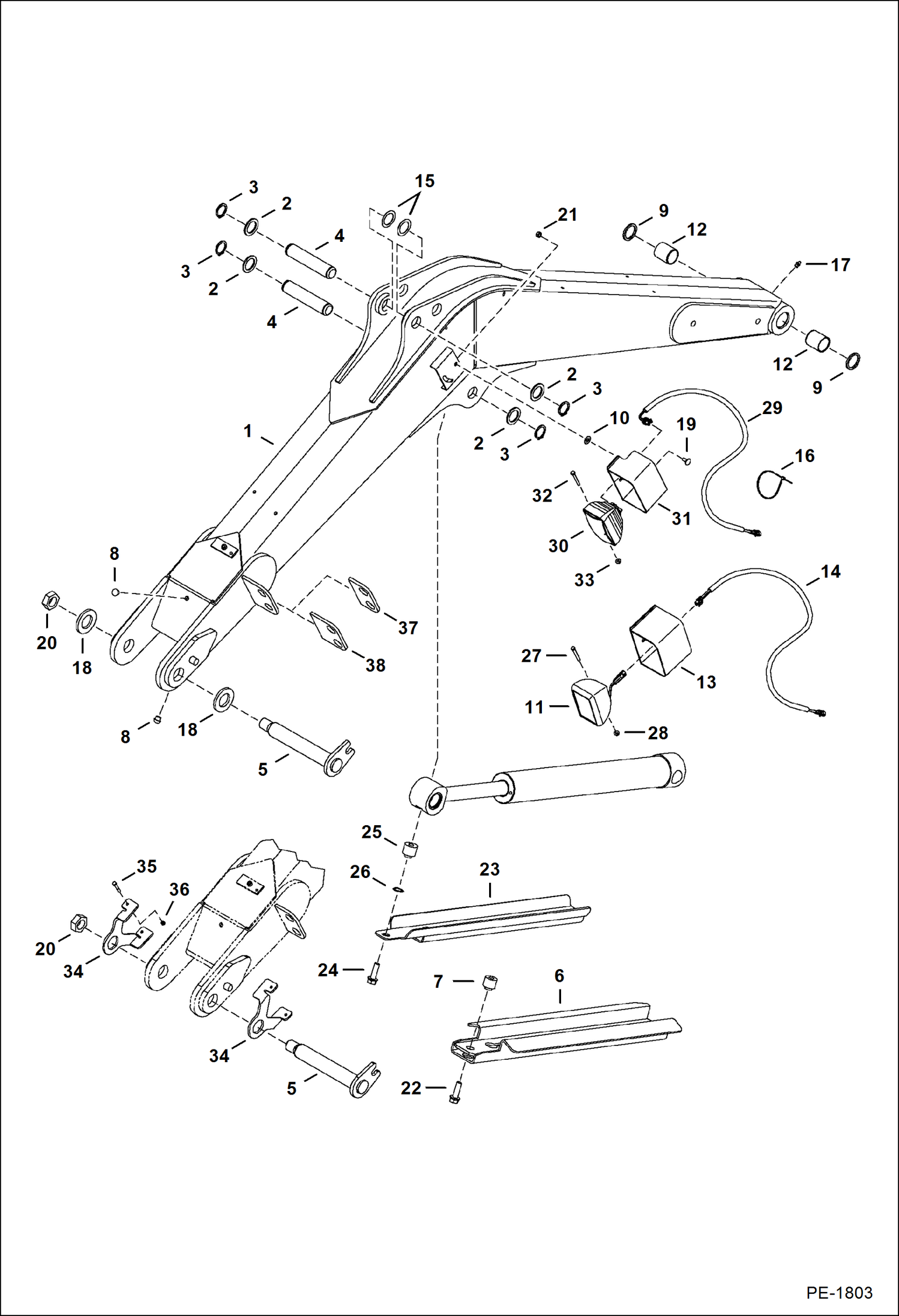

Схема запчастей Bobcat 430 - BOOM WORK EQUIPMENT

Артикул

Название

Примечание

Количество

1

BOOM See Illustration HYDRAULIC CIRCUITRY/ PE1848 NLA - W/Ref. 37 - Order 7139952 boom, Ref. 9 & 12, 7139955 & 7139956 tubelines, - If equipped with extendable arm, Also Order Ref. 34-36 to replace Re

1

7139952

BOOM, DIPPER ARM W/Ref. 38 - Also order Ref. 9 & 12 - If equipped with extendable arm, Also Order Ref. 34-36 to replace Ref. 18

2

6534111

WASHER

3

6534154

RING

4

6596216

PIN

5

6596238

PIN, PIVOT

6

SHIELD NLA - Order 7130856 shield - also order Ref. 24-26 - Was 6596493 - A

7

6596506

SPACER, SHIELD for Use W/Ref.6 (NLA/6596493 shield)

8

6597572

BUMPER

9

6660075

SEAL

10

6675859

RETAINER

11

6675938

LIGHT W/pigtail - Use W/Ref. 13

11

6667934

BULB Was 6677934 - D

11

6676724

BEZEL Was 6676203 - A

11

6676204

NUT

12

6815277

BUSHING Was 6803207 - B

13

HOUSING NLA - Order Ref. 30 - 33 - Was 6808258 - A

14

HARNESS NLA - work light - Order Ref. 29 - Was 6808415 - A

15

6811636

SPACER

16

6610510

TIE Was 1715312B - A

17

10H25

FITTING, GREASE 5 grease

18

1EM380

WASHER Use with non-extendable arm

19

28CM820

BOLT Was 21CM820 - B

20

39DM30

NUT

21

51DM8

NUT Was 4DM8 - B

22

59CM1245

BOLT for Use W/Ref.6 (NLA/6596493 shield)

23

7130856

SHIELD, W/A

24

7131273

SCREW for Use W/Ref. 23

25

7131109

SPACER for Use W/Ref. 23

26

6536803

WASHER spring washer - for Use W/Ref 23

27

17C532

BOLT 5 for light W/pigtail

28

61D5

NUT for light W/pigtail

29

7135896

HARNESS work light - 156'' (3962 mm) long

30

6691410

LIGHT W/O pigtail - Use W/Ref. 31

30

6692400

BULB

31

7133077

HOUSING, W/A W/notch in side

32

1CM655

SCREW for light W/O pigtail

33

51DM6

NUT for light W/O pigtail

34

7126461

BRACKET Use with extendable arm

35

1CM650

SCREW Use with extendable arm

36

53DM6

NUT Use with extendable arm

37

6628560

PLATE welded onto boom - 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

38

6597688

PLATE welded onto boom - 3.86'' (98 mm) x 4.95'' (125.8 mm)
