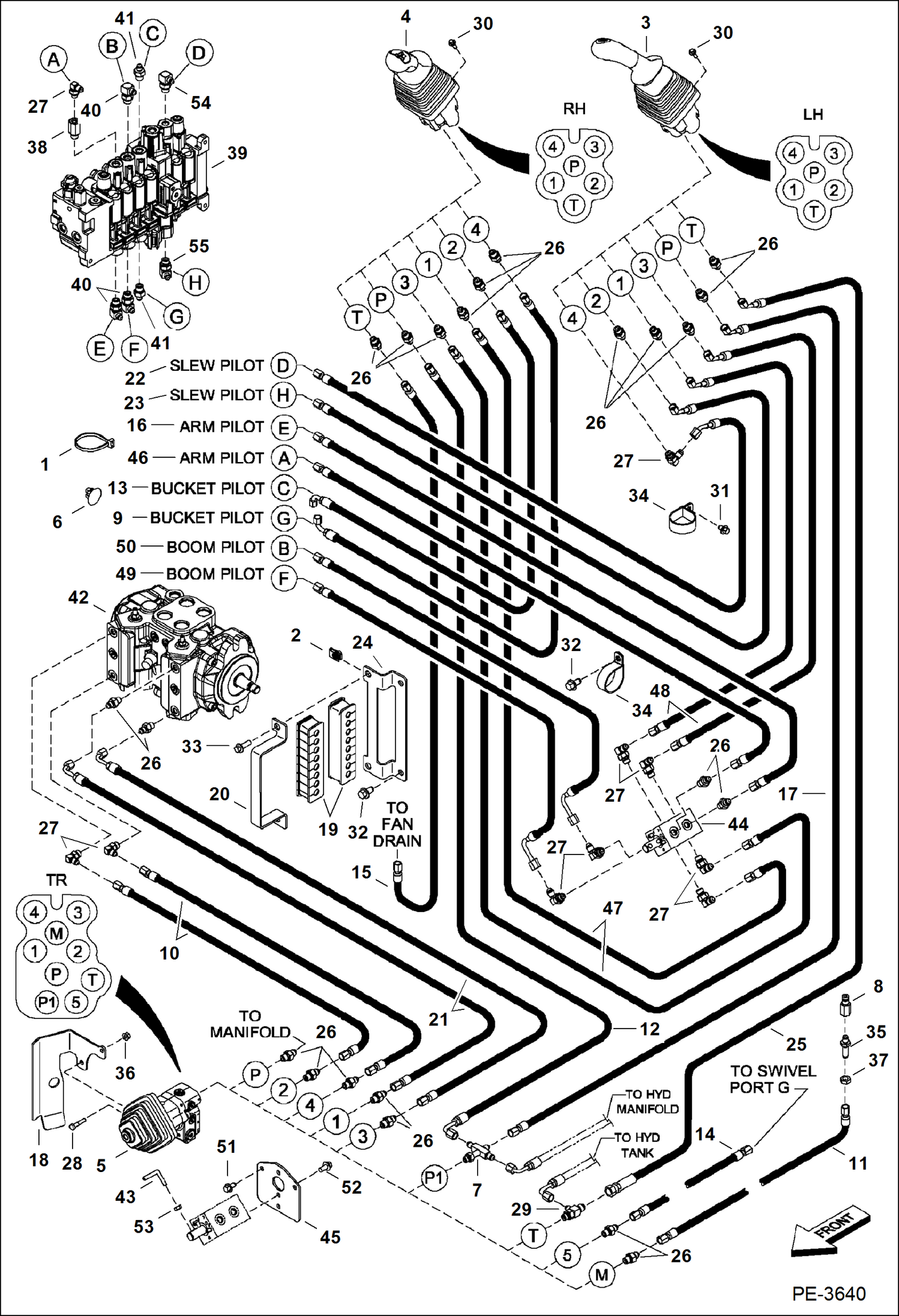

Запчасти Bobcat 430 HYDRAULIC/HYDROSTATIC CIRCUITRY (Pilot) (ISO/STD) HYDRAULIC/HYDROSTATIC SYSTEM

1

6624289

STRAP, TIE

2

6676169

NUT

3

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

4

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

5

6688970

VALVE See Illustration TRAVEL JOYSTICK/ PE2353

6

6691172

PLUG

7

6812829

CROSS

7

79K4

O RING 10

8

7000009

PLUG

9

7106588

HOSE

10

7106595

HOSE

11

7106597

HOSE

12

7106599

HOSE

13

7106603

HOSE

14

7106608

HOSE

15

7106611

HOSE

16

7106615

HOSE

17

7107672

HOSE

18

7126056

GUIDE

19

7133310

GUIDE, HOSE

20

7134800

BRACKET

21

7140546

HOSE

22

7142536

HOSE

23

7142538

HOSE

24

7144687

BRACKET

25

7145071

HOSE

26

15KB0404

FTG HYD S Connector

26

79K4

O RING 10

27

17KB0404

FTG HYD ELBOW 90

27

79K4

O RING 10

28

17C420

BOLT

29

21KB604

FITTING

29

79K4

O RING 10

30

26GM6020

SCREW

31

26GM8013

BOLT

32

26GM10020

BOLT

33

29CM825

BOLT

34

30H85

CLAMP

35

45K3

FITTING

36

83D4

NUT 10

37

86F3

LOCKNUT

38

6686900

ORIFICE

39

6689572

VALVE See Illustration CONTROL VALVE/ MS1476

40

7124150

ELBOW

40

79K6

O RING 10

41

15KB0406

FTG HYD S CONNECTOR

41

79K6

O RING 10

42

6697969

PUMP, HYD ASSY See Illustration HYDROSTATIC PUMP/ MS2659

43

6804251

HANDLE

44

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353

45

6814607

PLATE

46

7107646

HOSE

47

7107657

HOSE

48

7107665

HOSE

49

7141412

HOSE (1) straight & (1) 90 degree end

49

7106615

HOSE (2) straight ends

50

7141413

HOSE (1) straight & (1) 90 degree end

50

7106611

HOSE (2) straight ends

51

26GM8016

SCREW

52

29CM816

SCREW

53

53DM6

NUT Was 4DM6 - A

54

7124150

ELBOW

54

TEE See Illustration EUROPEAN ACCESSORIES/ NA2156 - for Europe slew lock option

54

79K6

O RING 10

55

7124150

ELBOW

55

TEE See Illustration EUROPEAN ACCESSORIES/ NA2156 - for Europe slew lock option

55

79K6

O RING 10
