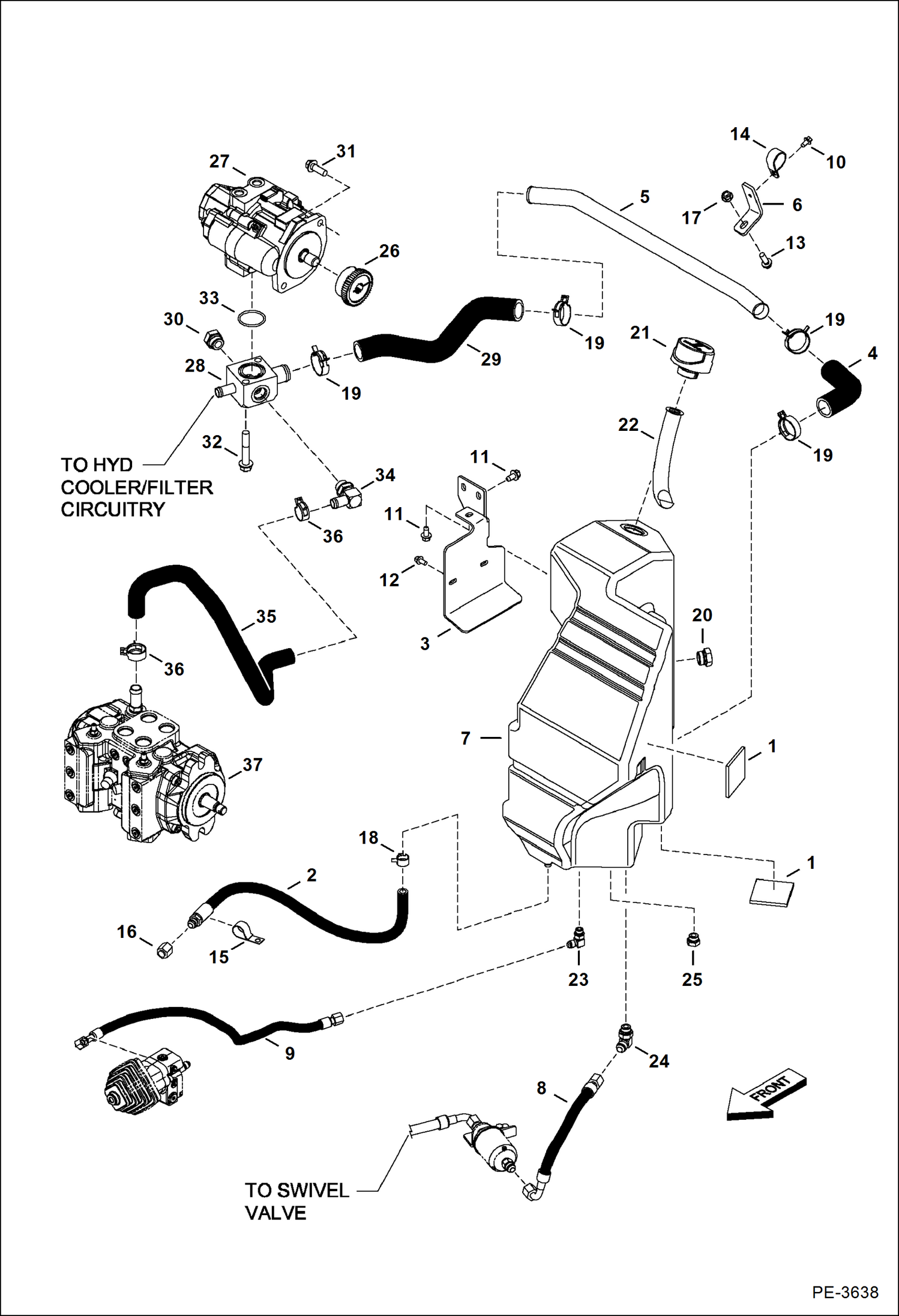

Запчасти Bobcat 430 HYDRAULIC/HYDROSTATIC CIRCUITRY (Tank & Pump) HYDRAULIC/HYDROSTATIC SYSTEM

1

6578278

PAD

2

6812176

HOSE

3

6814175

BRACKET

4

7159240

HOSE, HYD FORMED Was 6814655 - A

5

7101019

TUBE

6

7102965

BRACKET

7

6814617

TANK

8

7125155

HOSE

9

7145072

HOSE

10

26GM8016

SCREW

11

26GM10020

BOLT

12

29CM816

SCREW

13

29CM1030

BOLT

14

30H75

CLAMP

15

30HJ616

CLIP

16

36K6

CAP

17

43DM10

NUT

18

5HM20

CLAMP

19

5HM42

HOSECLAMP

20

6665915

GAUGE

21

6692836

CAP, HYDRAULIC TANK

22

7134222

SCREEN

23

17KB0606

FITTING

23

79K6

O RING 10

24

17KB0808

FITTING, HYD ELBOW

24

79K8

O RING 10

25

24K6

FITTING

25

79K8

O RING 10

26

6676535

COUPLER

27

6697946

PUMP, HYD PISTON See Illustration HYDRAULIC PISTON PUMP/ MS2054

28

6814414

MANIFOLD

29

7159242

HOSE, HYD FORMED Was 7101020 - A

30

24K8

PLUG

30

79K12

O RING 10

31

29CM1235

BOLT

32

29CM1270

BOLT

33

58K225

O RING 10

34

6814419

FITTING

34

79K12

O RING 10

35

7155775

HOSE, HYD FORMED

36

5HM29

HOSECLAMP

37

6697969

PUMP, HYD ASSY See Illustration HYDROSTATIC PUMP/ MS2659
