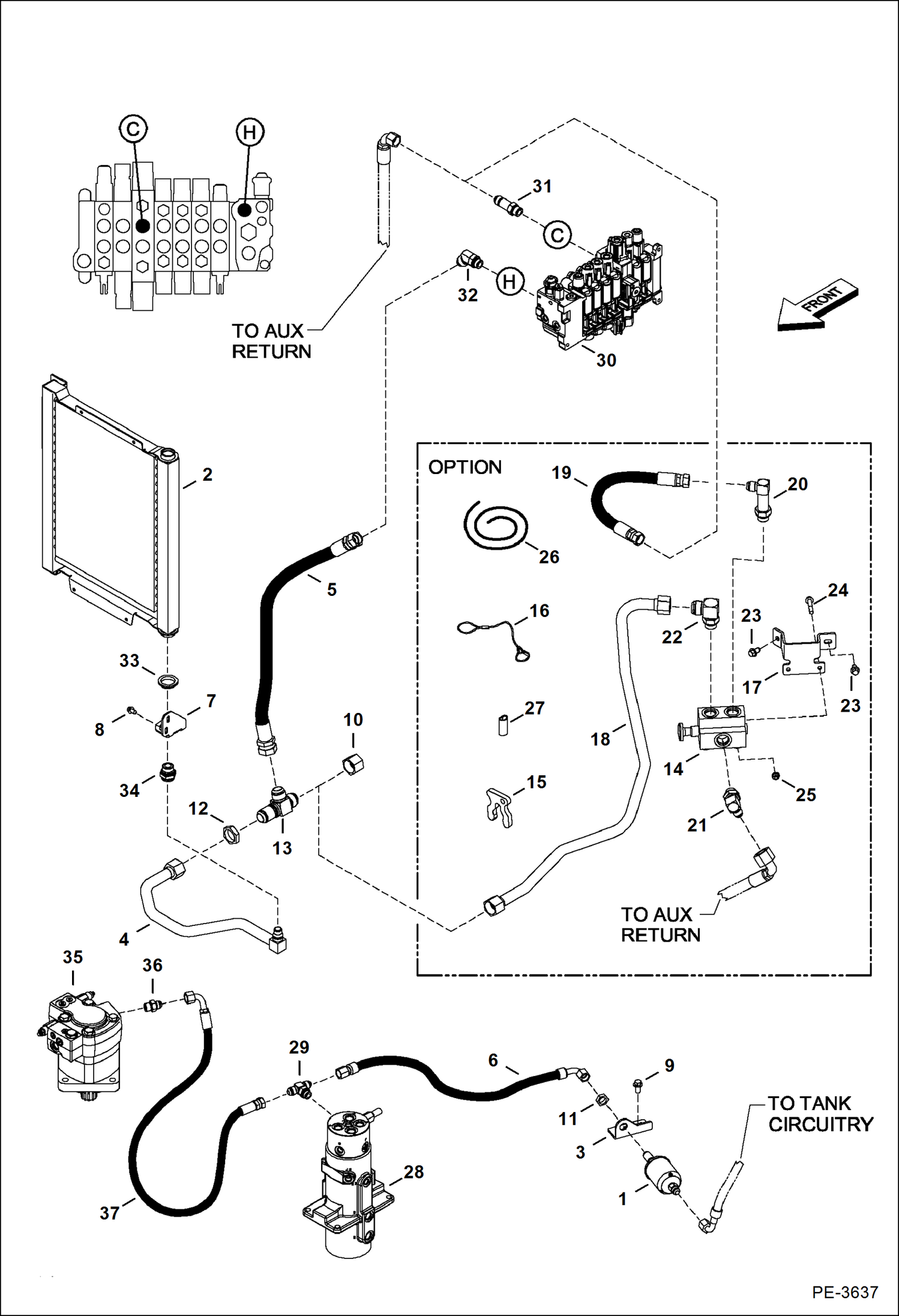

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Cooler & Direct to Tank Option) HYDRAULIC/HYDROSTATIC SYSTEM

1

6681012

FILTER, OIL HYD IN-LINE

2

6683316

EXCHANGER

3

6814286

BRACKET

4

6815879

TUBE

5

7104788

HOSE

6

7125154

HOSE

7

7147737

BRACKET, OIL COOLER

8

26GM8016

SCREW

9

29CM1020

BOLT

10

36K10

CAP

11

86F6

NUT

12

86F10

NUT

13

91K10

FITTING

14

6660267

VALVE See Illustration SELECTOR VALVE/ B13660

15

6808717

CLIP

16

WIRE ROPE NLA - 14'' (355 mm) long - Order Ref. 26 & 27

17

6814290

BRACKET

18

6815886

TUBELINE

19

7107131

HOSE

20

7107132

ELBOW

20

79K12

O RING 10

21

17KB1012

FITTING, HYD ELBOW

21

79K12

O RING 10

22

17KB1612

FITTING, HYD ELBOW

22

79K12

O RING 10

23

26GM10020

BOLT

24

29CM850

SCREW

25

43DM8

NUT

26

6558309

WIRE ROPE bulk - sold per foot

27

6558310

SLEEVE

28

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906

29

19KB0808

Fitting Hydraulic Branch Tee

29

79K8

O RING 10

30

6689572

VALVE See Illustration CONTROL VALVE/ MS1476

31

16KB1010

FITTING, HYD ELBOW

31

79K10

O RING 10

32

18KB1210

FITTING, HYD ELBOW

32

79K10

O RING 10

33

6681623

BUSHING

34

10L1212

ADAPTER

34

78K12

O-RING

35

7001957

MOTOR, DRIVE HYD SLEW See Illustration SWING MOTOR/ MS1847 - bearing not included with motor - Also Order (1) 6513681 bearing - Was 6687118 - A

36

15KB0808

FITTING, HYD CONNECTOR

36

79K8

O RING 10

37

6815035

HOSE
