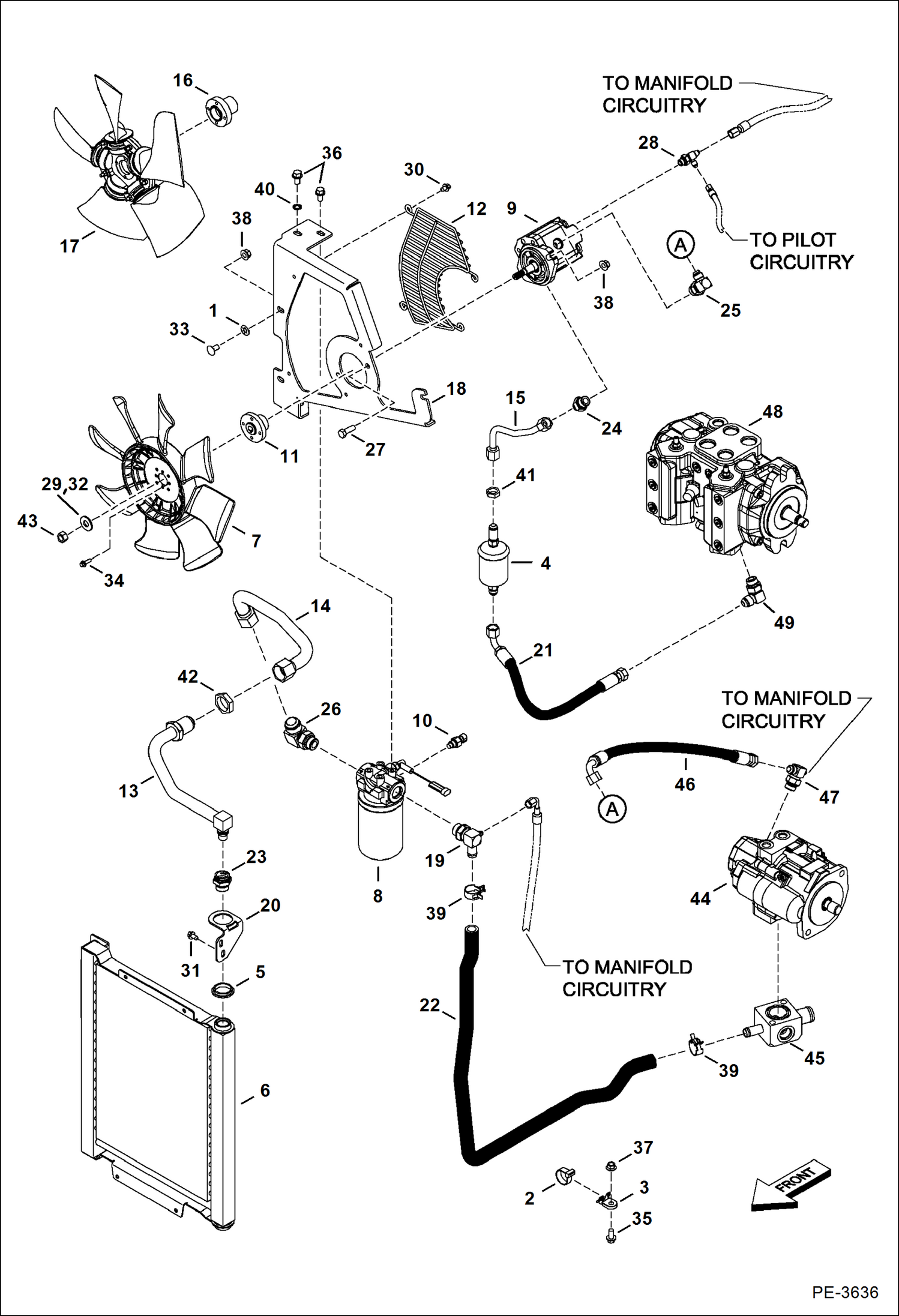

Запчасти Bobcat 430 HYDRAULIC/HYDROSTATIC CIRCUITRY (Cooler/Filter & Fan Motor) HYDRAULIC/HYDROSTATIC SYSTEM

1

6674264

RETAINER NUT

2

6678669

STRAP

3

6679034

MOUNT

4

6681012

FILTER, OIL HYD IN-LINE

5

6681623

BUSHING

6

6683316

EXCHANGER

7

6683810

FAN 8 blade

8

HYD FILTER ASSY NLA - assy - Order 6688385 filter assy & 6668819 filter - replace existing short filter (5.5'' long) with longer 6668819 filter (9'' long)

8

6668819

FILTER, OIL HYD 9.5'' (241,3 mm) long

9

6698368

MOTOR, FAN See Illustration FAN MOTOR/ MS2590

10

6727869

SENDER,HYD TEMP

11

6812390

HUB 1.42'' (36 mm) long - Use W/ 6683810 fan

12

6814288

GUARD

13

6815880

TUBE

14

6815883

TUBE

15

6815893

TUBE

15

7165282

TUBELINE, HYD

16

7117206

HUB 2.01'' (51 mm) long - ESA Only - Use W/ 7117208 fan

17

7117208

FAN 5 blade - ESA Only

18

MOUNT, FAN NLA - Order 7165327 mount and 7165282 tubeline - Was 7141918 - A

18

7165327

MOUNT, FAN

19

7144732

FITTING, ELBOW HYD

19

79K12

O RING 10

20

7147738

BRACKET, OIL COOLER

21

7155782

HOSE, HYD ASSY

22

7166145

HOSE, FORMED HYD Was 7156384 - A

23

10L1212

ADAPTER

23

78K12

O-RING

24

15KB0810

FITTING, HYD CONNECTOR

24

79K10

O RING 10

25

17KB0810

FITTING, HYD ELBOW

25

79K10

O RING 10

26

17KB1612

FITTING, HYD ELBOW

26

79K12

O RING 10

27

1CM1030

BOLT

28

21KB0406

FTG HYD STRAIGHT TEE

28

79K6

O RING 10

29

25E21

WASHER 5

30

26GM8013

BOLT

31

26GM8016

SCREW

32

27E8

WASHER 10

33

28CM1020

BOLT

34

29CM620

SCREW

35

29CM1020

BOLT

36

35C612

BOLT

37

43DM10

NUT

38

51DM10

NUT

39

5HM29

HOSECLAMP

40

6E6

WASHER

41

86F6

NUT

42

86F10

NUT

43

96D8

NUT

44

6697946

PUMP, HYD PISTON See Illustration HYDRAULIC PISTON PUMP/ MS2054

45

6814414

MANIFOLD

46

7104651

HOSE

47

7108783

TEE

47

79K10

O RING 10

48

6697969

PUMP, HYD ASSY See Illustration HYDROSTATIC PUMP/ MS2659

49

17KB0808

FITTING, HYD ELBOW

49

79K8

O RING 10
