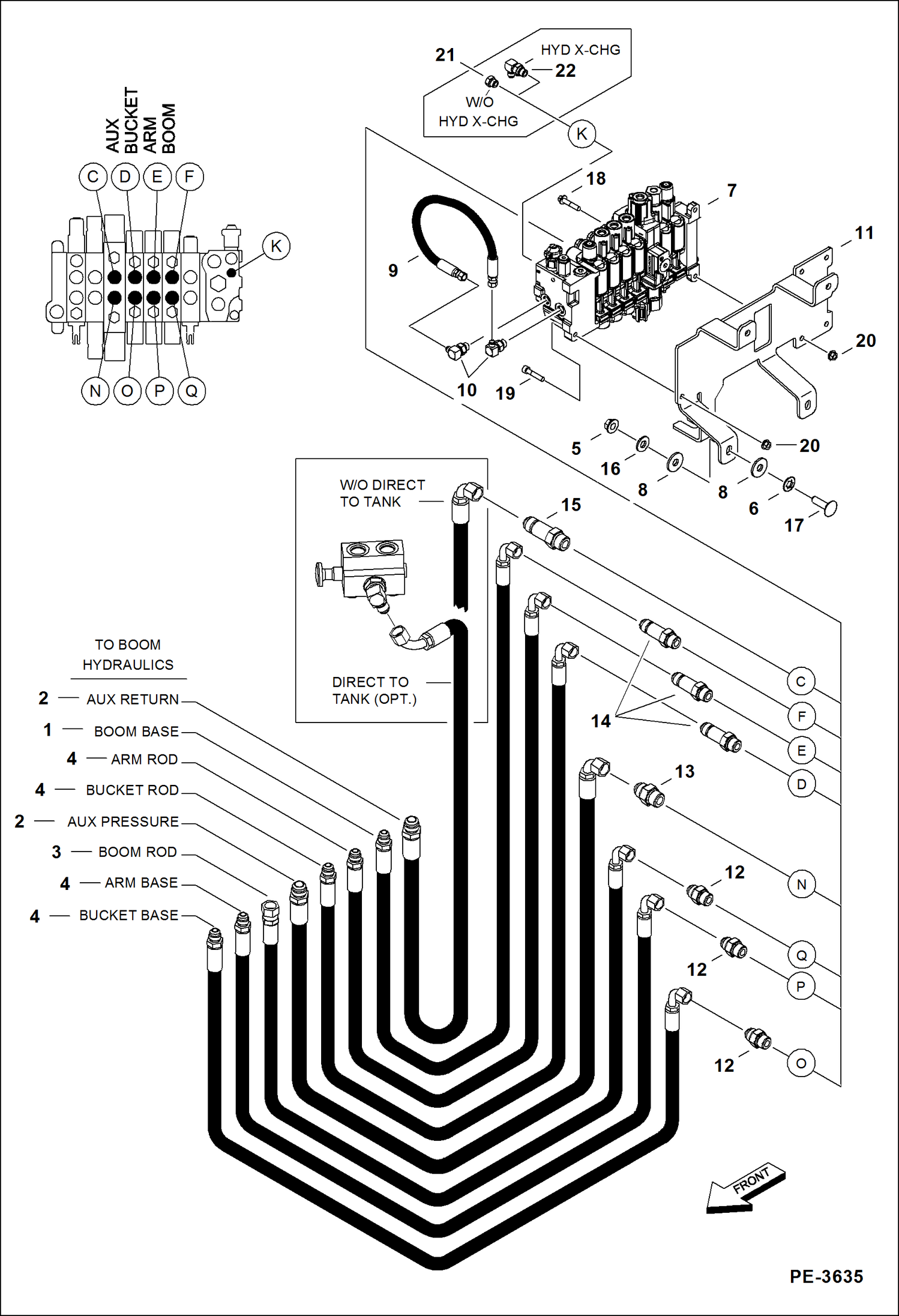

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Work Hoses & Control Valve) HYDRAULIC/HYDROSTATIC SYSTEM

1

6628581

HOSE

2

6807460

HOSE

2

HOSE See Illustration SECONDARY AUXILIARY/ NA2110 for secondary auxiliary option

3

6813914

HOSE

4

6815874

HOSE

5

51DM10

NUT

6

6674264

RETAINER NUT

7

6689572

VALVE See Illustration CONTROL VALVE/ MS1476

8

6806720

INSULATOR

9

7102958

HOSE

10

7124150

ELBOW

10

79K6

O RING 10

11

7150213

MOUNT, VALVE

12

15KB0808

FITTING, HYD CONNECTOR

12

79K8

O RING 10

13

15KB1010

FITTING, HYD CONNECTOR

13

79K10

O RING 10

14

16KB0808

FITTING, HYD CONNECTOR

14

79K8

O RING 10

15

16KB1010

FITTING, HYD ELBOW

15

79K10

O RING 10

16

17EM100

WASHER

17

21CM1035

BOLT

18

29CM835

BOLT

19

3GM840

SCREW

20

51DM8

NUT

21

24K5

PLUG

21

79K6

O RING 10

22

7124150

ELBOW See Illustration X-CHANGE/ PE3829

22

79K6

O RING 10
