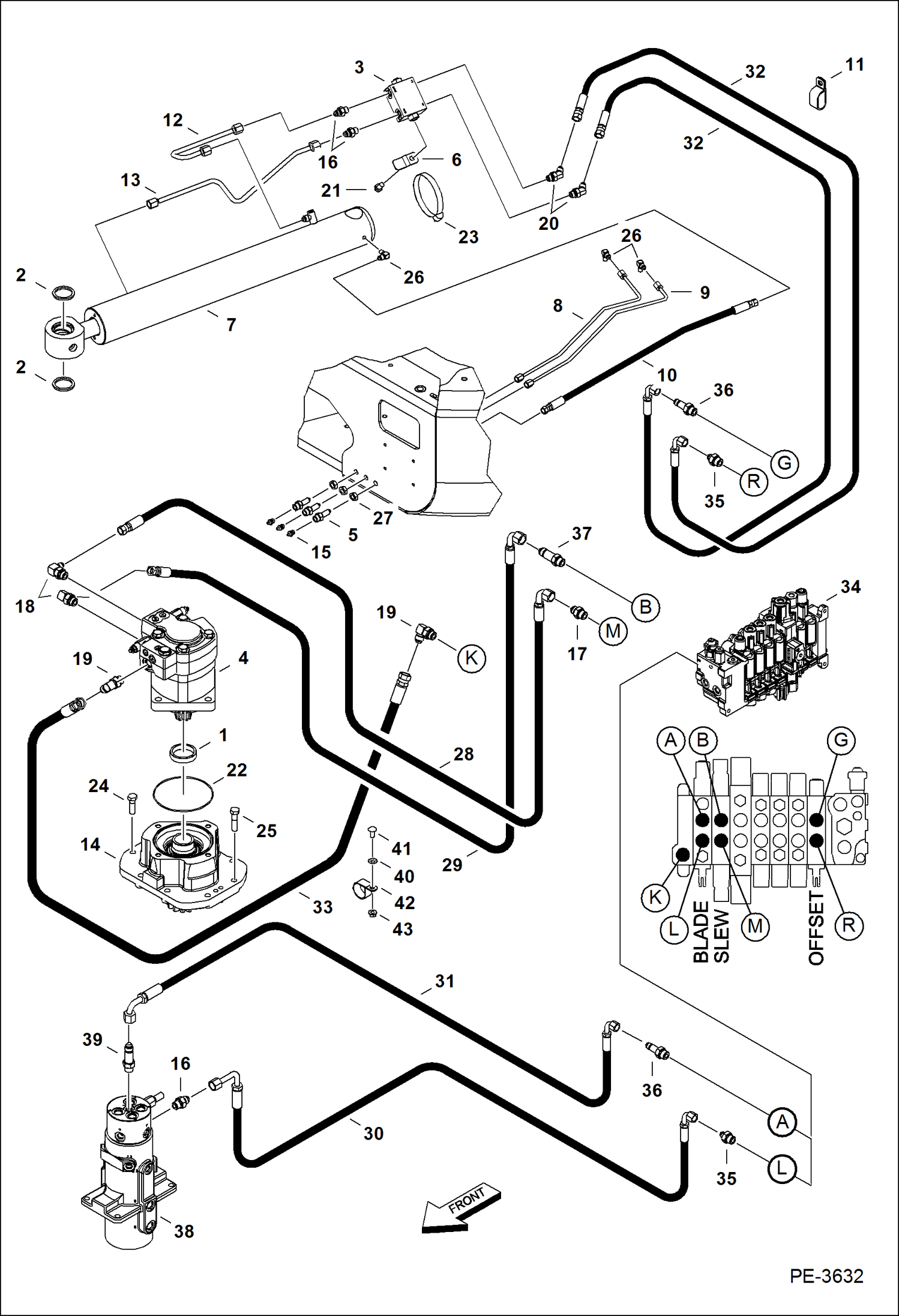

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Upper/Swing) HYDRAULIC/HYDROSTATIC SYSTEM

1

6513681

BEARING

2

6660075

SEAL

3

6676167

VALVE See Illustration LOCK VALVE/ C3475

4

7001957

MOTOR, DRIVE HYD SLEW See Illustration SWING MOTOR/ MS1847 - bearing not included with motor - Also Order (1) 6513681 bearing - Was 6687118 - A

5

6807184

FITTING

6

6807345

MOUNT

7

CYLINDER, SWING See Illustration SWING CYLINDER/ PE3653 - NLA - 26.41'' (670.8 mm) housing length - Was 6816319 - B

7

CYLINDER, SWING See Illustration SWING CYLINDER/ PE3653 - 25.91'' (658.1 mm) housing length

8

6812177

TUBELINE

9

6812178

TUBELINE

10

6812179

HOSE

11

31H38

CLAMP 1

12

7102604

TUBELINE

13

7102605

TUBELINE Use W/Ref. 7 NLA cylinder W/ 26.41'' (670.8 mm) housing length

13

7163136

TUBELINE, HYD Use W/Ref. 7 cylinder W/ 25.91'' (658.1 mm) housing length

14

7106387

CARRIER See Illustration MOTOR CARRIER/ PE2446

15

10H25

FITTING, GREASE 5

16

15KB0606

FITTING, HYD CONNECTOR

16

79K6

O RING 10

17

15KB0808

FITTING, HYD CONNECTOR

17

79K8

O RING 10

18

17KB0608

FITTING, HYD ELBOW

18

79K8

O RING 10

19

17KB0808

FITTING, HYD ELBOW

19

79K8

O RING 10

20

18KB0606

FITTING, HYD ELBOW

20

79K6

O RING 10

21

1CM1020

BOLT

22

25K30508

O-RING, 10

23

42H56

CLAMP

24

55CM1240

SCREW

25

55CM1250

SCREW

26

83F3

ELBOW 5

27

86F3

LOCKNUT

28

6815033

HOSE

29

6815034

HOSE

30

6815038

HOSE

31

6815575

HOSE

32

6815739

HOSE

33

7173062

HOSE, HYD ASSY Was 7104756 - A

34

6689572

VALVE See Illustration CONTROL VALVE/ MS1476

35

15KB0608

FITTING, HYD CONNECTOR

35

79K8

O RING 10

36

16KB0608

FITTING, HYD CONNECTOR

36

79K8

O RING 10

37

16KB0808

FITTING, HYD CONNECTOR

37

79K8

O RING 10

38

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906

39

16KB0606

FTG HYD L CONNECTOR

39

79K6

O RING 10

40

6675859

RETAINER

41

28CM820

BOLT

42

30H49

CLAMP

43

43DM8

NUT
