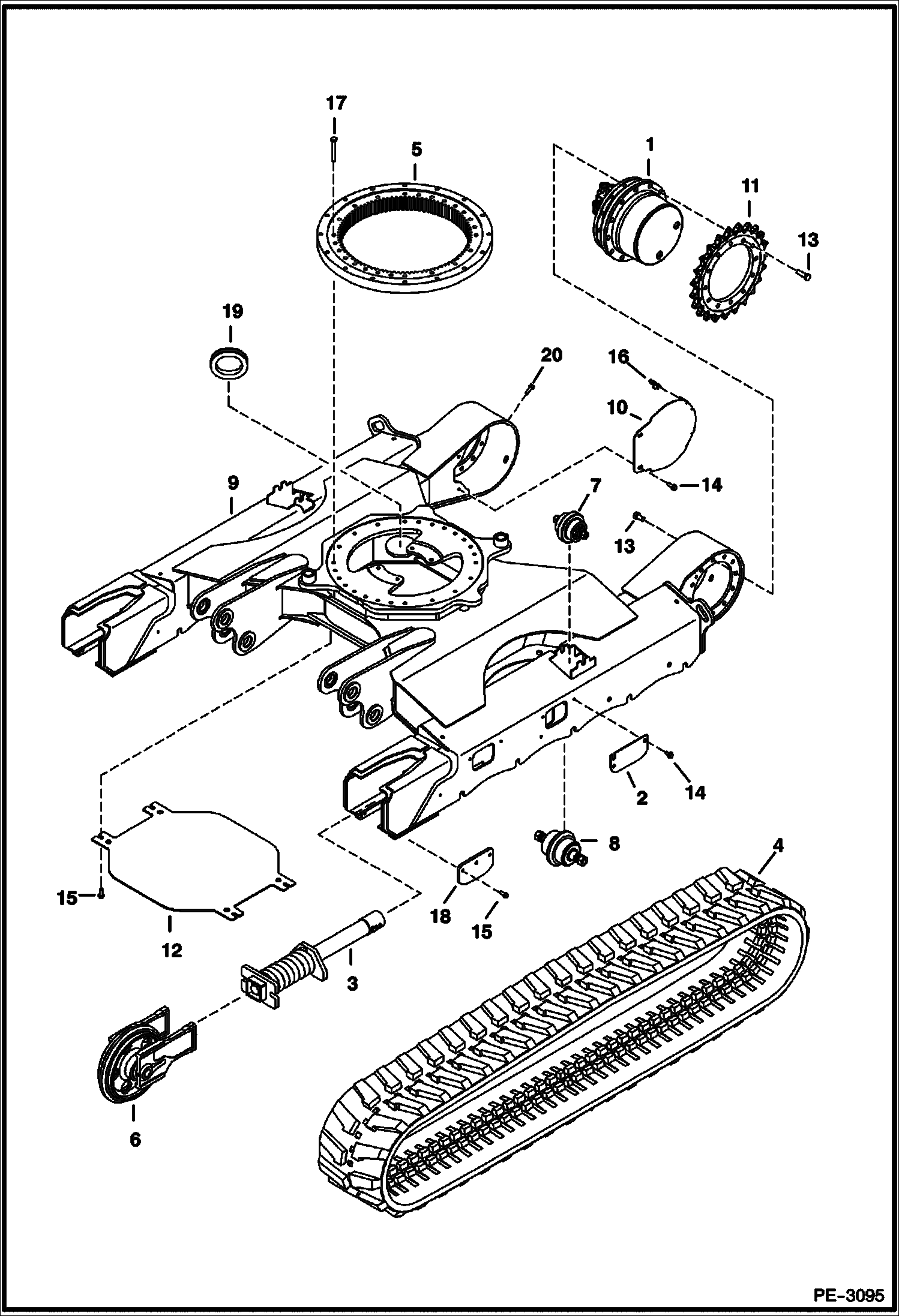

Запчасти Bobcat 430 UNDERCARRIAGE UNDERCARRIAGE

1

6683380

MOTOR, DRIVE HYD See Illustration TRAVEL MOTOR/ B19921 Was 6685454 - B,D

2

6596723

COVER

3

CYLINDER See Illustration TRACK TENSIONER/ PE2668

4

TRACK, RUBBER See Illustration TRACKS/ NA6199

4

TRACK, STEEL See Illustration TRACKS/ PE2456

5

6678952

RING, SLEW

6

IDLER ASSY See Illustration FRONT IDLER/ PE1801

7

ROLLER See Illustration TRACK ROLLER/ PE1800 assy

8

ROLLER See Illustration TRACK ROLLER/ PE1914 assy

9

7161764

UNDERCARRIAGE Was 7142044 - A

10

6816483

COVER

11

7199007

SPROCKET, MACHINED Was 7162768SUB - A

12

7129160

COVER

13

55CM1445

SCREW

14

26GM10020

BOLT

15

26GM10030

BOLT

16

6675722

NUT

17

7161099

BOLT Was 55CM1280 - A

18

6596396

PLATE guide - steel track

19

7127210

GROMMET

20

29CM1030

BOLT
