TRACK ROLLER (Top) (S/N 562511001 & Above, 5627 and Below)

Запчасти Bobcat 430 TRACK ROLLER (Top) (S/N 562511001 & Above, 5627 and Below) UNDERCARRIAGE

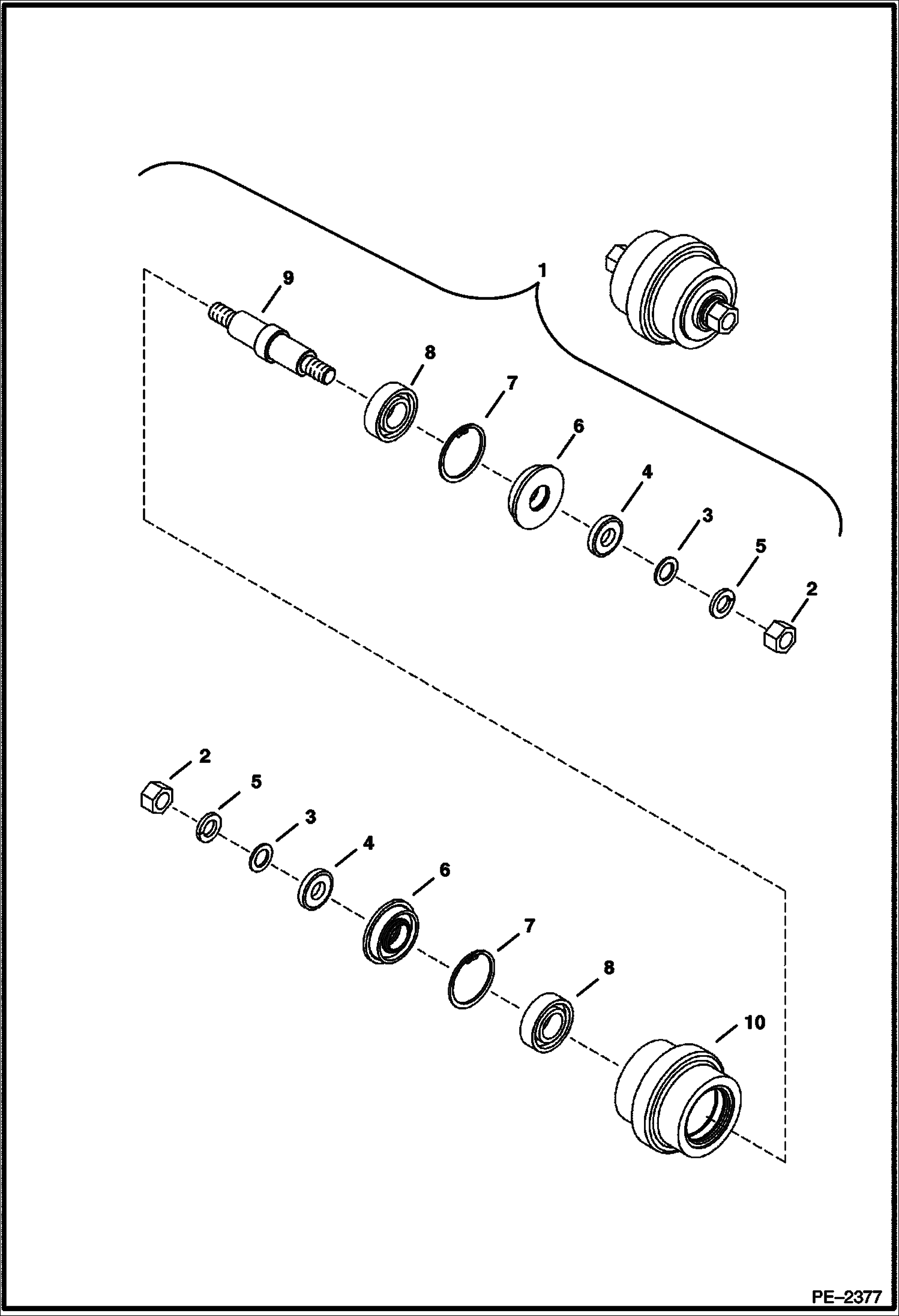

Схема запчастей Bobcat 430 - TRACK ROLLER (Top) (S/N 562511001 & Above, 5627 and Below) UNDERCARRIAGE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ROLLER See Illustration TRACK ROLLER/ PE1800 - NLA - Assy - Ref. 2-10 - Was 6814874 - A

2

1DM16

NUT

3

15EM160

WASHERS

4

6533873

SPACER

5

6EM160

WASHER

6

6681719

SEAL

7

7JM52

SNAP RING

8

6680289

BEARING

9

6807914

SHAFT

10

ROLLER NLA - rubber tracks - order 6815112
