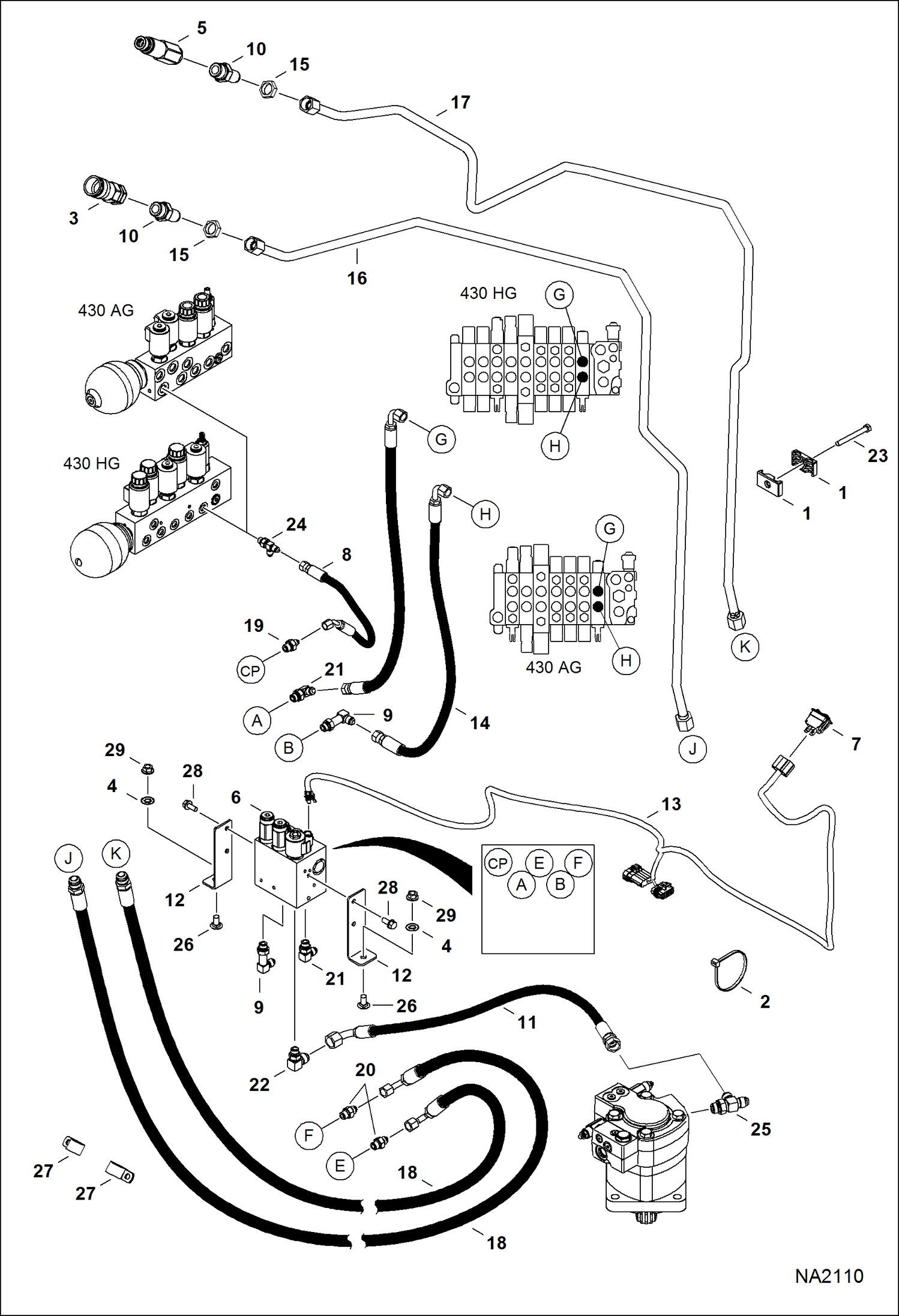

Запчасти Bobcat 430 SECONDARY AUXILIARY (Option) ACCESSORIES & OPTIONS

1

6577697

CLAMP

2

6624289

STRAP, TIE

3

6672960

COUPLER, FF FEMALE straight

4

6674264

RETAINER NUT

5

6674688

COUPLER, FF MALE straight

5

6679841

SEAL Was 6672026 - A

6

6679888

VALVE ASSY See Illustration SECONDARY AUXILIARY VALVE/ MS1471

7

6679906

SWITCH

8

6806995

HOSE

9

6812815

FITTING

9

79K6

O RING 10

10

6812816

ADAPTER

10

79K12

O RING 10

11

6815035

HOSE

12

6816892

BRACKET

13

6818394

HARNESS

14

6958350

HOSE

15

86F7

LOCK NUT

16

7159380

TUBELINE, HYD

17

7159381

TUBELINE, HYD

18

7163172

HOSE, ASSY HYD

19

15KB0406

FTG HYD S CONNECTOR

19

79K6

O RING 10

20

15KB0606

FITTING, HYD CONNECTOR

20

79K6

O RING 10

21

17KB0606

FITTING

21

79K6

O RING 10

22

17KB0806

FITTING, HYD ELBOW

22

79K6

O RING 10

23

1CM875

BOLT

24

21KB0406

FTG HYD STRAIGHT TEE

24

79K6

O RING 10

25

21KB0808

FTG HYD STRAIGHT TEE

25

79K8

O RING 10

26

28CM1020

BOLT

27

30H50

CLIP

28

31C512

BOLT

29

51DM10

NUT
