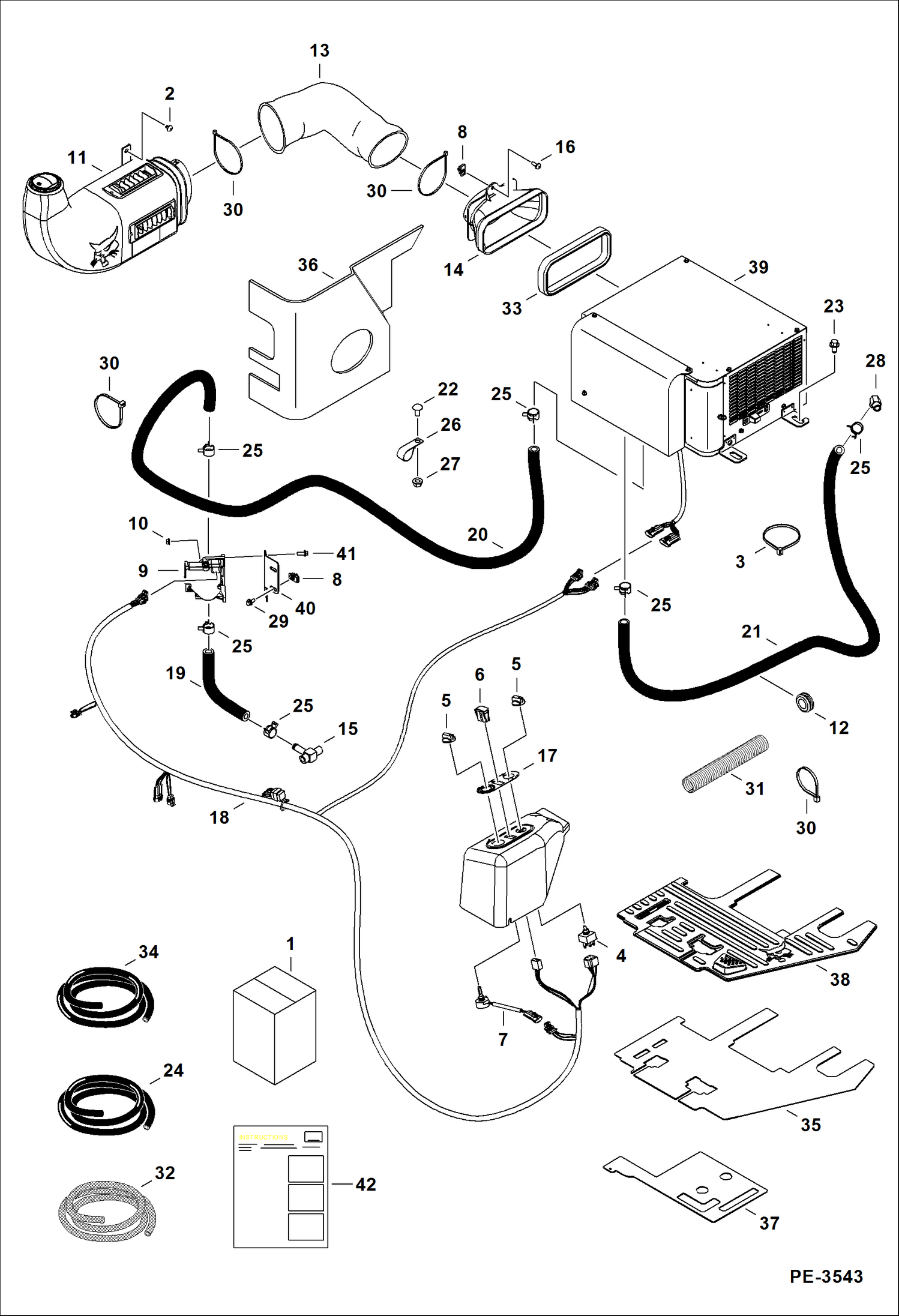

Запчасти Bobcat 430 HEATER (Heater Kit) ACCESSORIES & OPTIONS

1

7159164

HEATER KIT W/Ref. 2-42

2

6589675

SCREW

3

6610510

TIE nylon

4

6675176

SWITCH blower

5

6675177

KNOB

6

6675181

PLUG

7

6693148

RESISTOR temp control

8

6676026

NUT clip

9

7003456

VALVE, MOTORIZED ASSY - Was 6693147 - B

10

43DM6

NUT

11

DUCT See Illustration HEATER/HVAC/ PE2865 Order 6687777, 6680308 & 6680321

12

7136776

GROMMET

13

6681653

HOSE

14

6681881

DUCT W/Ref. 33

15

6682150

TEE

16

6803202

SCREW

17

6808433

DECAL heater

18

6814229

HARNESS

18

6670312

SWITCH, MAGNETIC relay

19

HOSE NLA - 9'' (228,6 mm) - Order Ref. 24

20

HOSE NLA - 78'' (1981,2 mm) - Order Ref. 24

21

HOSE NLA - 72'' (1828,8 mm) - Order Ref. 24

22

28CM1020

BOLT

23

26GM10020

BOLT

24

6565977

HOSE bulk - sold per foot - 160'' (4064 mm) in Ref. 1

25

5HM20

CLAMP

26

30HJ616

CLIP

27

43DM10

NUT

28

6731085

ELBOW

29

29CM612

BOLT, FLANGED

30

6624289

STRAP, TIE

31

CONDUIT NLA - 7.20'' (182,9 mm) - Order Ref. 32

32

6643249

CONDUIT bulk - sold per foot

33

SEAL NLA - 22'' (558,8 mm) - Order Ref. 34

34

6681884

SEAL bulk - sold per foot

35

6684544

UNDERLAYMENT

36

6684896

INSULATION RH console

37

7157774

INSULATION, FLOOR

38

7121607

FLOORMAT, CAB

39

7135616

HEATER BOX See Illustration HEATER/ MS1473

40

7140438

BRACKET

41

29CM616

BOLT

42

6904989

INSTRUCTIONS
