Запчасти Bobcat 430 EUROPEAN ACCESSORIES (Deluxe Control Kit) ACCESSORIES & OPTIONS

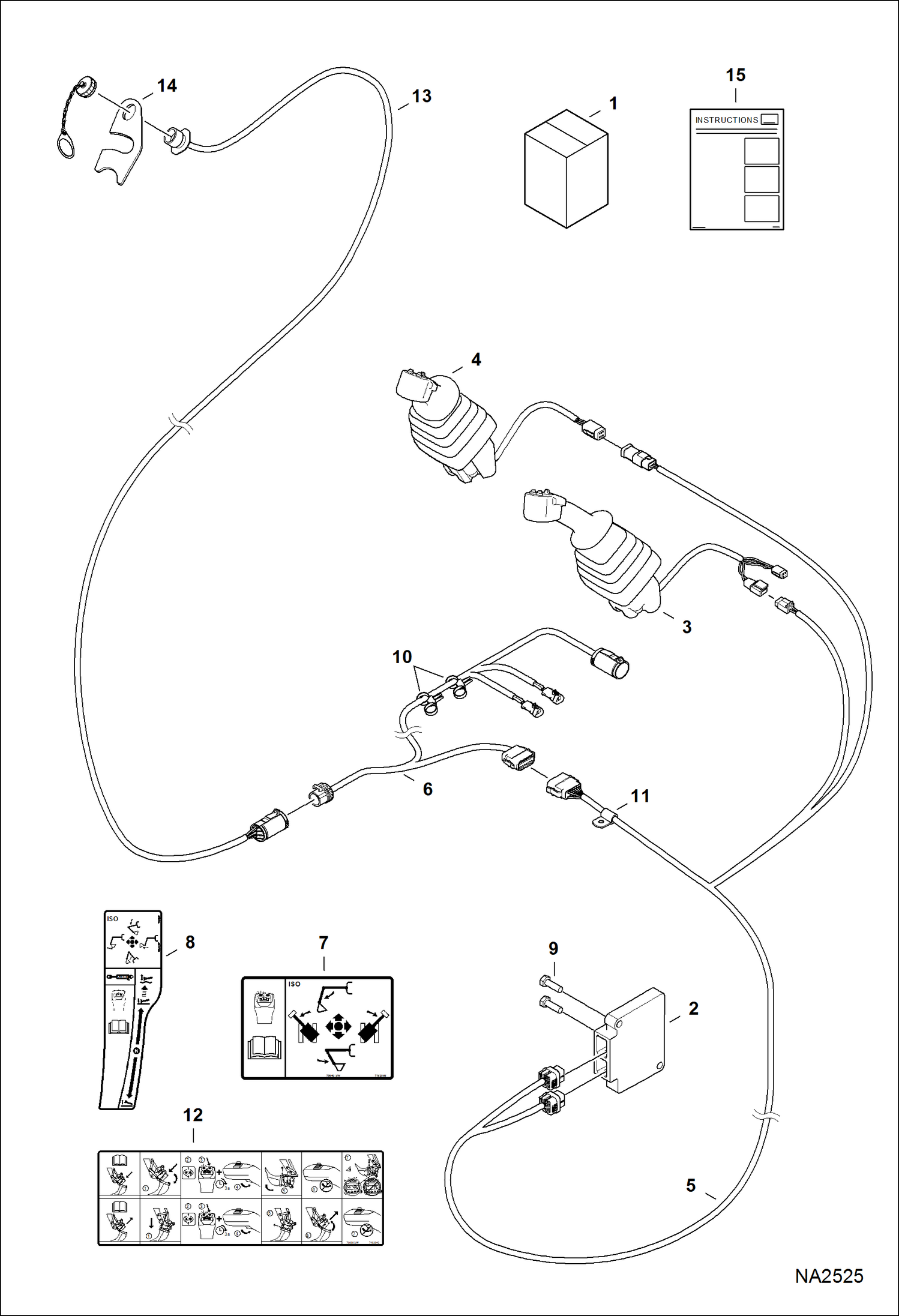

Схема запчастей Bobcat 430 - EUROPEAN ACCESSORIES (Deluxe Control Kit) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7169921

KIT, CONTROL ATTACH Ref. 2-15

2

7009046

CONTROLLER, AUX CONTROL

3

JOYSTICK, LH NLA - Was 7010038 - A

4

JOYSTICK, RH Was 7010039 - A

5

7169935

HARNESS, CONTROL ATTACH DLX

6

7177075

HARNESS, BOOM

7

7182066

DECAL, LH ISO

8

7182067

DECAL, RH ISO

9

1CM1016

SCREW

10

6678668

STRAP, DUAL TIE

11

30H15

CLIP Was 30H16 - D

12

7183846

DECAL, OPERATION

13

7179875

HARNESS, BOOM

14

7173975

MOUNT

15

6987445

INSTRUCTIONS

Выбрано товаров: 15
