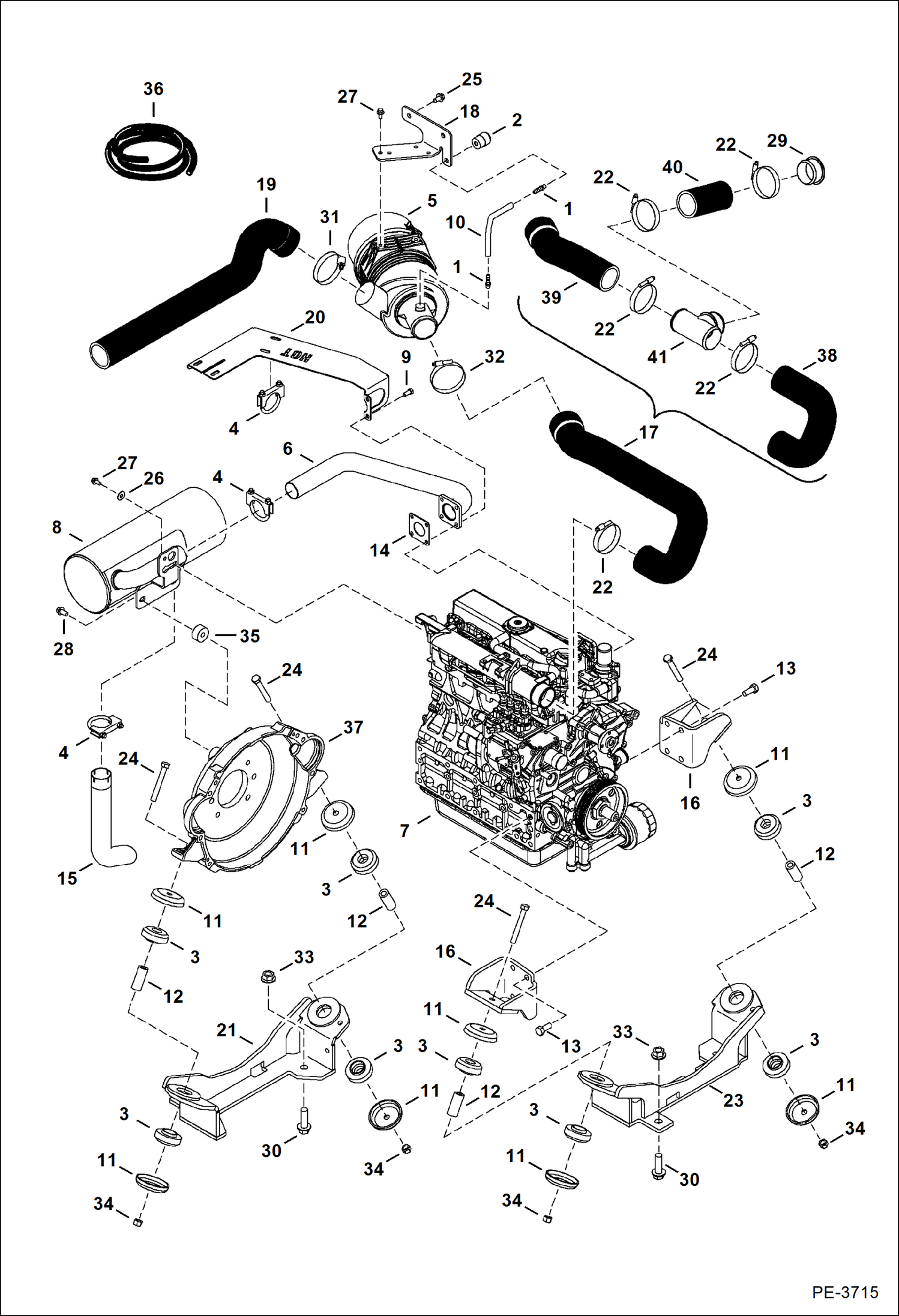

Запчасти Bobcat 430 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) POWER UNIT

1

6505813

CONNECTOR

2

6515007

GAUGE Was 6615007 - D

3

6688994

MOUNT engine

4

6677363

CLAMP, FULL CIRCLE

5

6678769

AIR CLEANER See Illustration AIR CLEANER/ B20074

6

7000322

TUBE, EXHAUST Was 6682483 - A

7

ENGINE, V2403-M-DI-E3B-BC-3 See Illustration ENGINE & GASKET KITS/ NA1577

8

7000320

MUFFLER, EXHAUST Was 7003024 - A

9

6701123

SCREW

10

HOSE NLA - Order 11'' (279,4 mm) of Ref. 37

11

7116851

CUP

12

7116850

SPACER

13

6719828

BOLT

14

6727752

GASKET

15

7000323

PIPE, TUBE EXHAUST Was 7140376 - A

16

6814278

MOUNT

17

6814623

HOSE

17

HOSE ASSY NLA - ESA Only - Order Ref. 22, 29, 38-41

18

6814640

BRACKET

19

7117207

HOSE

20

7127718

COVER EXHAUST exhaust

21

7116844

MOUNT

22

42HC300

CLAMP

22

42HC300

CLAMP

23

7116839

MOUNT

24

7CM1290

SCREW

25

26GM10020

BOLT

26

17EM80

WASHER

27

29CM816

SCREW

28

29CM1035

SCREW

29

7120204

CAP HOSE ESA Only

30

29CM1650

BOLT

31

42H44

HOSECLAM5

32

42HC325

CLAMP

33

51DM16

NUT

34

53DM12

NUT

35

7101016

SPACER

36

6557720

HOSE

37

7121429

HOUSING MACH

38

7120198

HOSE INTAKE ESA Only

39

7120199

HOSE INTAKE ESA Only

40

7160597

HOSE, AIR INTAKE ESA Only - Was 7120200 - D

41

7120203

TEE HOSE ESA Only
