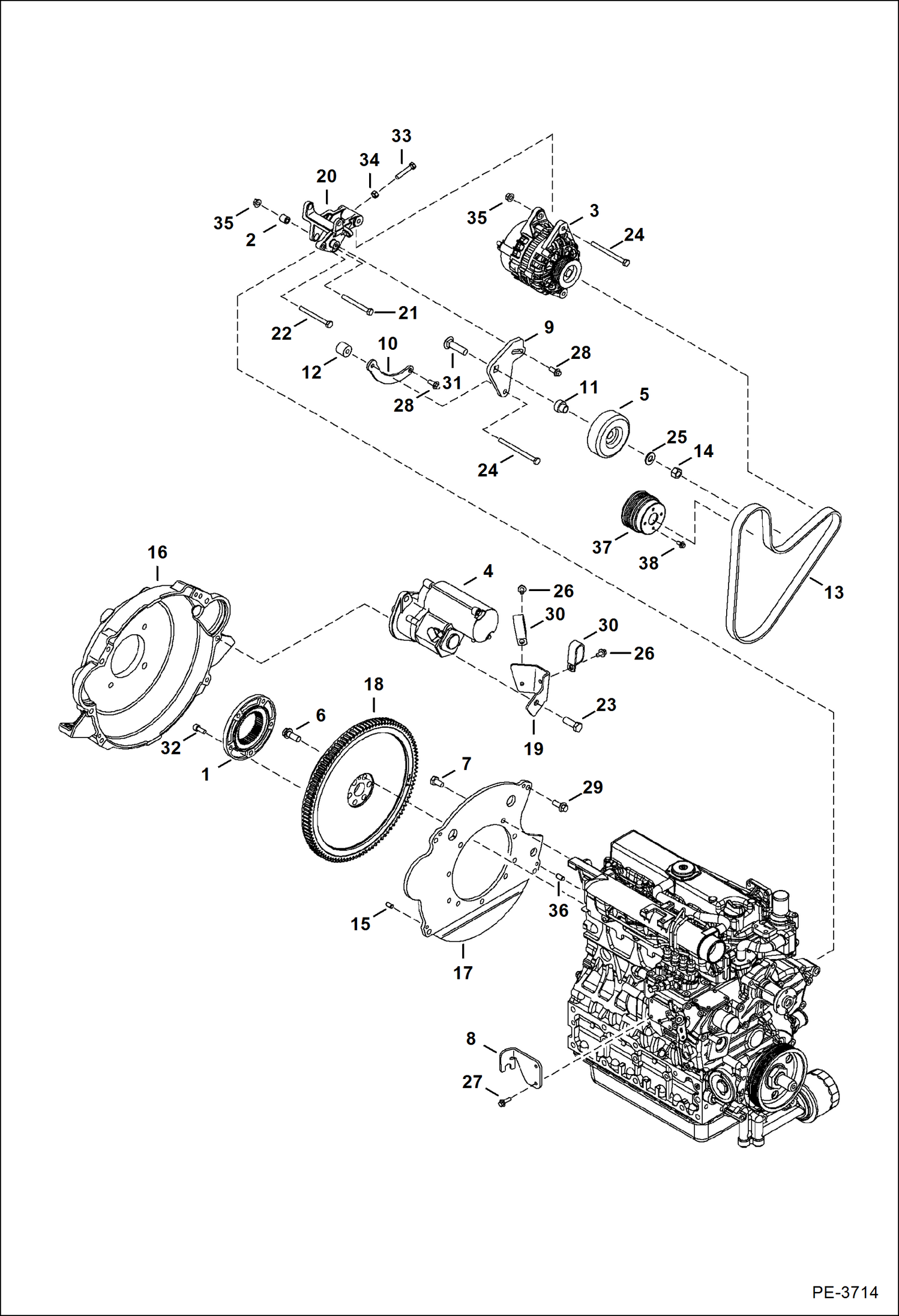

Запчасти Bobcat 430 ENGINE & ATTACHING PARTS (Starter & Alternator) POWER UNIT

1

6670757

COUPLER flange

2

6675838

BUSHING

3

6681857

ALTERNATOR See Illustration ALTERNATOR/ B22386

4

6681858

STARTER

5

6681942

IDLER

6

6598275

BOLT

7

6733378

SCREW

8

6814273

BRACKET

9

6814848

PLATE

10

6814859

TENSIONER

11

6814860

SPACER

12

6814861

SPACER

13

6697872

BELT

13

7101068

BELT for HVAC

14

95D8

NUT

15

7101341

PIN

16

7121429

HOUSING MACH

17

7126963

PLATE, FLYWHEEL

18

7161404

FLYWHEEL, ENG ASSY

18

6510470

RING GEAR

19

7102964

BUCKET

20

7103231

BRACKET

21

1CM880

BOLT

22

1CM885

BOLT

23

1CM1235

BOLT

24

1CM8110

HEX CAP S

25

25E21

WASHER 5

26

26GM8016

SCREW

27

29CM620

SCREW

28

29CM820

SCREW

29

29CM1025

BOLT

30

31H42

CLIP

31

10C832

BOLT Was 37C832 - D

32

3GM820

SCREW

33

4CM845

BOLT

34

4DM8

NUT

35

51DM8

NUT

36

23JM1024

PIN HARDENED PARALLE - Was 20JM1025 - B
