Запчасти Bobcat 430 ELECTRICAL (RH Console) ELECTRICAL SYSTEM

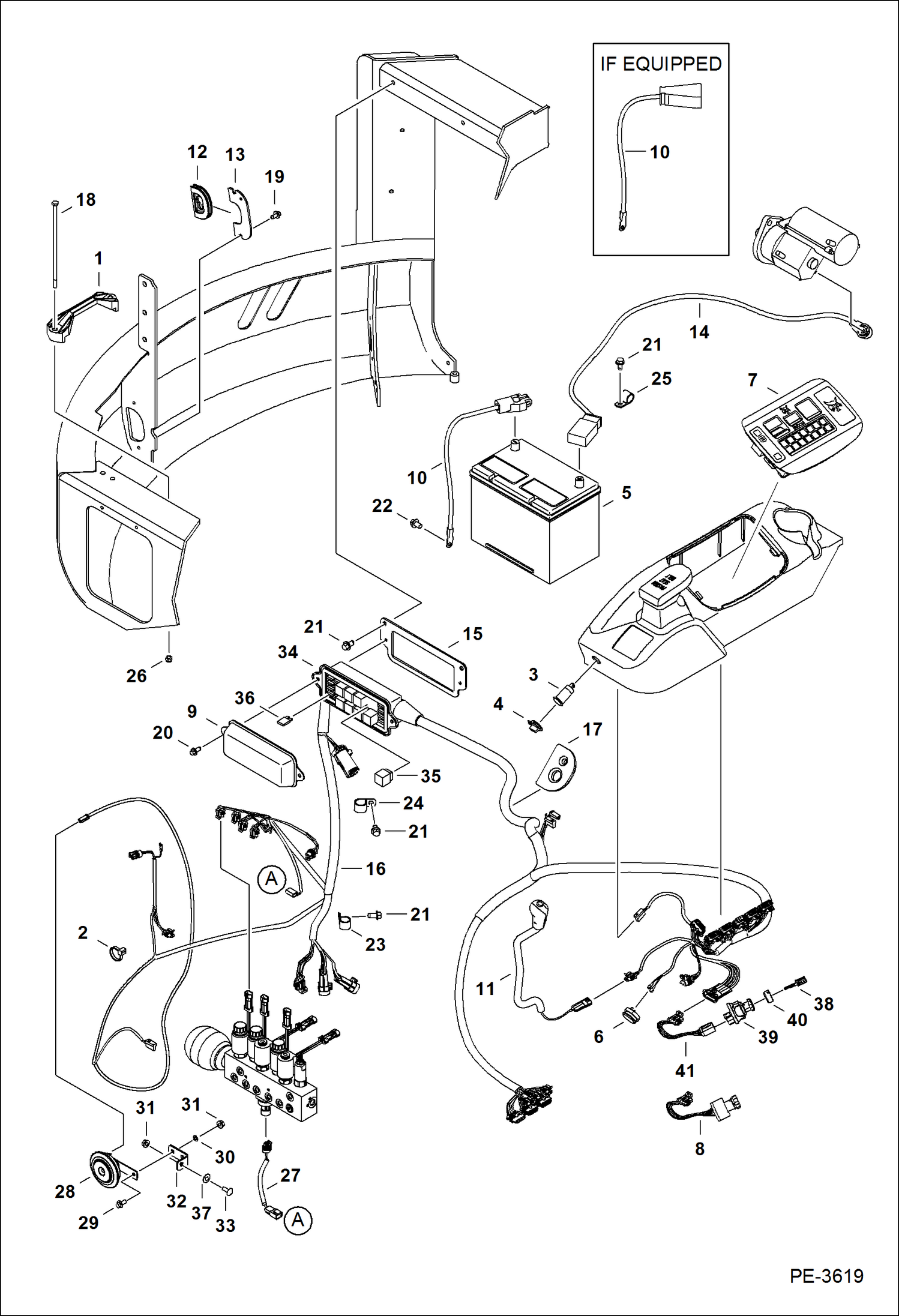

Схема запчастей Bobcat 430 - ELECTRICAL (RH Console) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6569203

CLAMP battery

2

6624289

STRAP, TIE

3

6664223

OUTLET

4

6664224

CAP

5

6674687

BATTERY, DRY 600 AMP

6

6675705

ALARM

7

6691432

CONTROLLER, KEY START See BTI395exc - key start

7

6691433

CONTROLLER, KEYLESS PANEL See BTI395exc - keyless start

8

SWITCH NLA - ignition W/attached harness - Order Ref. 39-41 - Was 6679842 - A

9

6716621

COVER

10

6807431

CABLE negative

11

BLADE LEVER NLA - Order components - Was 7117039 - A

11

6675721

SWITCH momentary

11

6675831

HANDLE front half

11

6675832

HANDLE back half

11

7117038

TUBE

11

SCREW NLA - #6 x 5/8 pan head

12

6810364

GROMMET

13

6810365

GROMMET PLATE plate

14

6812394

CABLE positive

15

7102810

BRACKET

16

7135276

HARNESS W/Ref. 9, 15, 37-39

17

7165623

GROMMET Was 6815653 - A

18

17C5152

BOLT

19

26GM8016

SCREW

20

26GM8016

SCREW Was 26GM8020 - B

21

26GM10020

BOLT

22

29CM1016

BOLT

23

30H46

CLIP

24

30H50

CLIP

25

30H65

CLIP

26

59D5

NUT 5

27

HARNESS not used on this model

28

6691276

ALARM, HORN mounted W/bolt in horizontal position

29

29CM816

SCREW

30

10EM80

WASHER

31

43DM8

NUT

32

7135027

BRACKET

33

28CM820

BOLT

34

6718659

HOUSING

35

6679820

RELAY

36

6654803

FUSE 5A

36

6654805

FUSE 10A

36

6654806

FUSE, 15A

36

6625575

FUSE, 20A

36

6702444

FUSE 25A 5

37

6675859

RETAINER

38

6693241

KEY 10 ignition - single key W/O ring

39

6693245

SWITCH, IGN W/O attached harness

40

7000328

ADAPTER, SWITCH IGN

41

6697965

HARNESS

Выбрано товаров: 51
