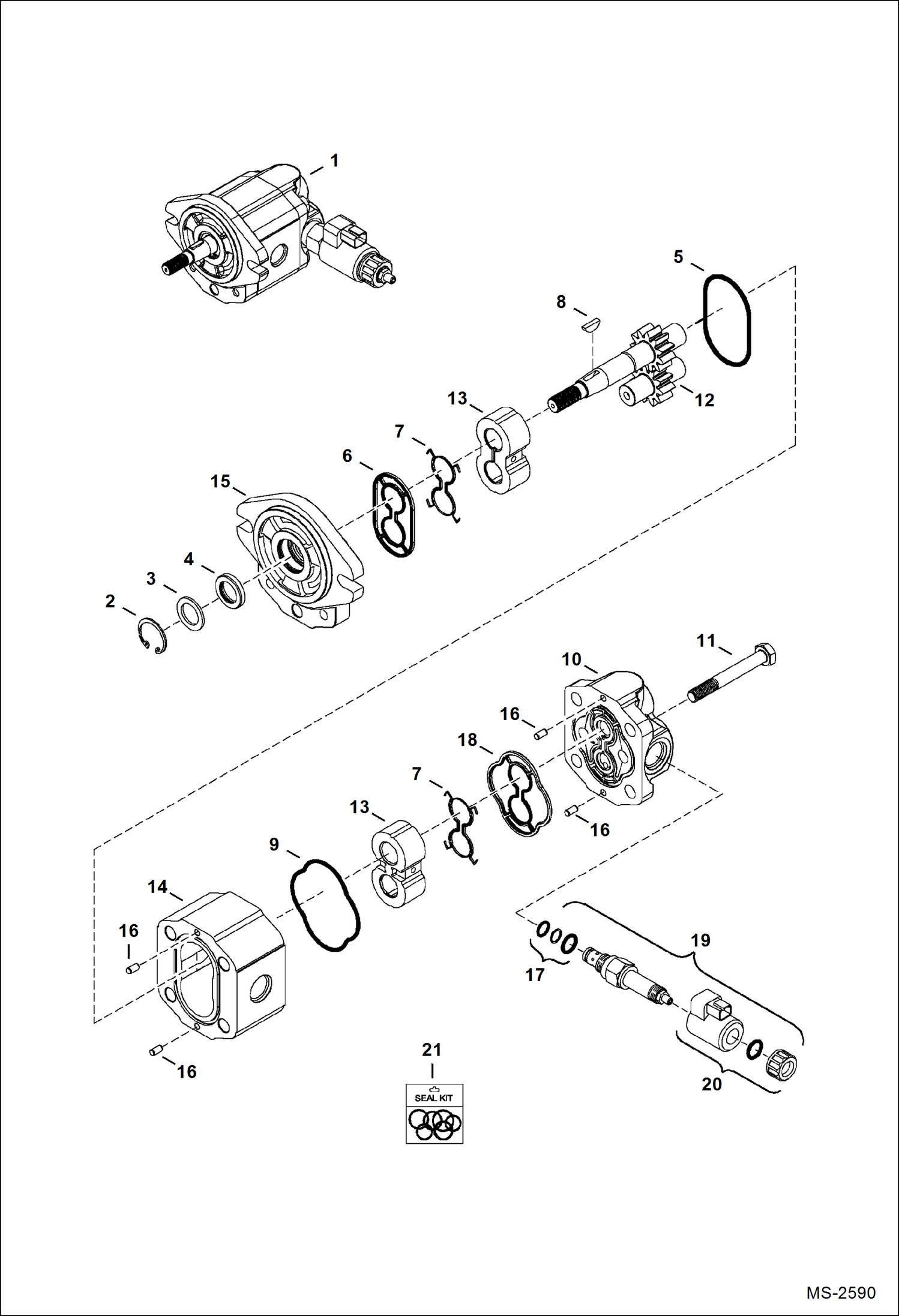

Запчасти Bobcat 430 FAN MOTOR HYDRAULIC SYSTEM

1

6698368

MOTOR, FAN

2

6686648

RING

3

6686650

WASHER

4

6686649

SEAL

5

O-RING NSS - Order Ref. 1

6

SEAL NSS - Order Ref. 1

7

RING NSS - Order Ref. 1

8

6686651

KEY

9

O-RING NSS - Order Ref. 1

10

COVER NSS - Order Ref. 1

11

BOLT NSS - Order Ref. 1

12

GEAR NSS - Order Ref. 1

13

BEARING NSS - Order Ref. 1

14

CASE NSS - Order Ref. 1

15

COVER NSS - Order Ref. 1

16

PIN NSS - Order Ref. 1

17

6683206

SEAL KIT

18

SEAL NSS - Order Ref. 1

19

6689059

VALVE, RELIEF

20

6689060

COIL ASSY

21

7001015

KIT, SEAL complete - Ref. 4-7, 9, 18

21

6686206

SEAL KIT shaft - Ref. 2-4
