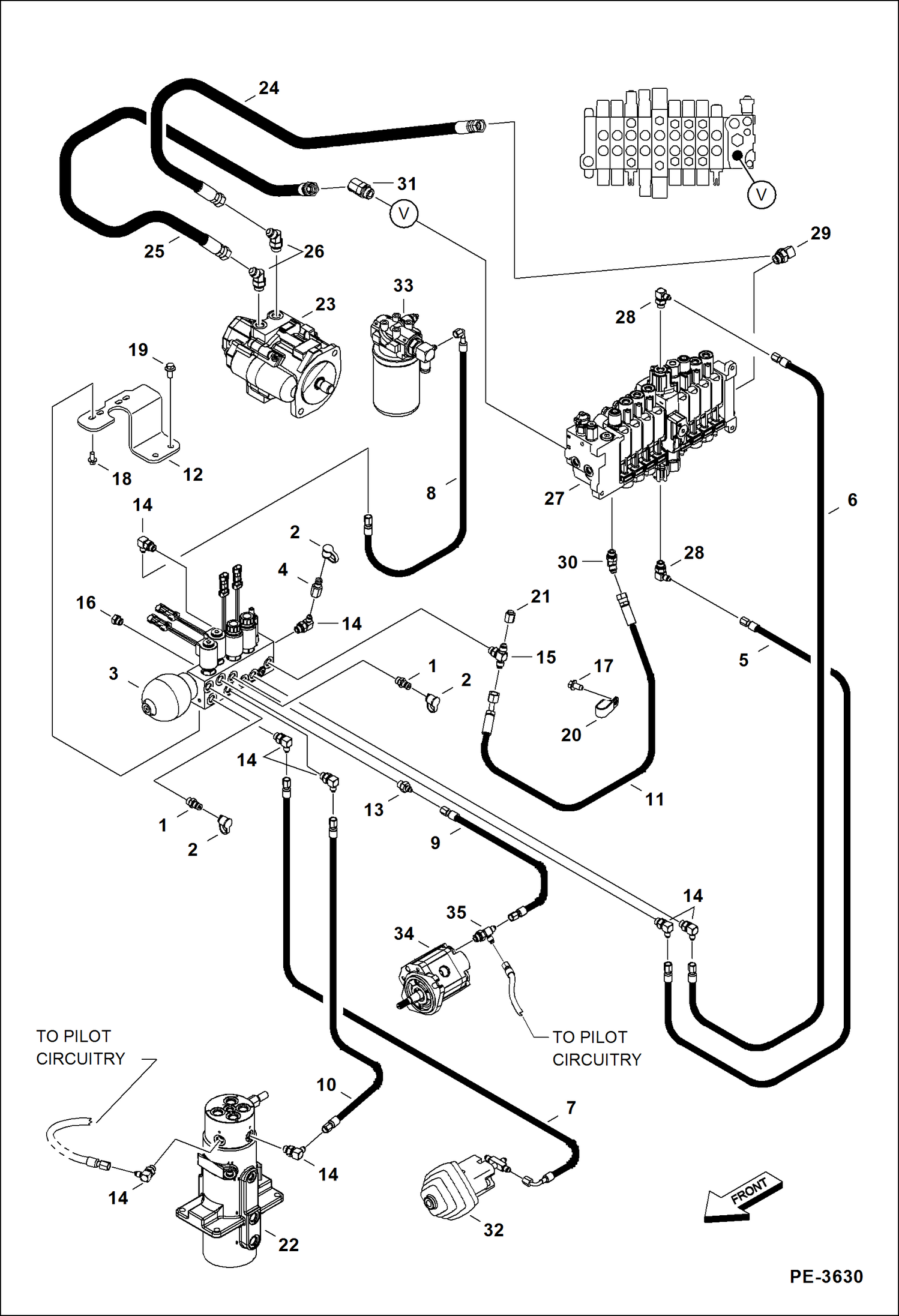

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Manifold & Pump) HYDRAULIC SYSTEM

1

6630168

COUPLER

2

6630367

CAP

3

6690054

MANIFOLD See Illustration MANIFOLD ASSY/ MS1465 W/O Angle Blade option

3

6692394

MANIFOLD See Illustration MANIFOLD ASSY/ MS1481 W/Angle Blade option

4

7000009

PLUG

5

7106597

HOSE

6

7106598

HOSE

7

7106599

HOSE

8

7106600

HOSE

9

7107657

HOSE

10

7107648

HOSE

11

7141411

HOSE

12

7150386

BRACKET, MANIFOLD HYD

13

15KB0406

FTG HYD S CONNECTOR

13

79K6

O RING 10

14

17KB0406

FITTING, HYD ELBOW

14

79K6

O RING 10

15

19KB0606

TEE

15

79K6

O RING 10

16

24K5

PLUG

16

79K6

O RING 10

17

26GM10020

BOLT

18

29CM816

SCREW

19

29CM1020

BOLT

20

31H38

CLAMP

21

36K5

CAP

22

6811778

SWIVEL See Illustration SWIVEL JOINT/ PE1906

23

6697946

PUMP, HYD PISTON See Illustration HYDRAULIC PISTON PUMP/ MS2054

24

7102581

HOSE

25

7104652

HOSE

26

18KB0808

FTG HYD ELBOW 45

26

79K8

O RING 10

27

6689571

VALVE ASSY See Illustration CONTROL VALVE/ MS1430

28

7124150

ELBOW

28

79K6

O RING 10

29

17KB0808

FITTING, HYD ELBOW

29

79K8

O RING 10

30

18KB0606

FITTING, HYD ELBOW

30

79K6

O RING 10

31

18KB1010

FITTING, HYD ELBOW

31

79K10

O RING 10

32

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

33

6688385

HYD FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ NA1844

34

6698368

MOTOR, FAN See Illustration FAN MOTOR/ MS2590

35

7157717

TEE

35

79K6

O RING 10
