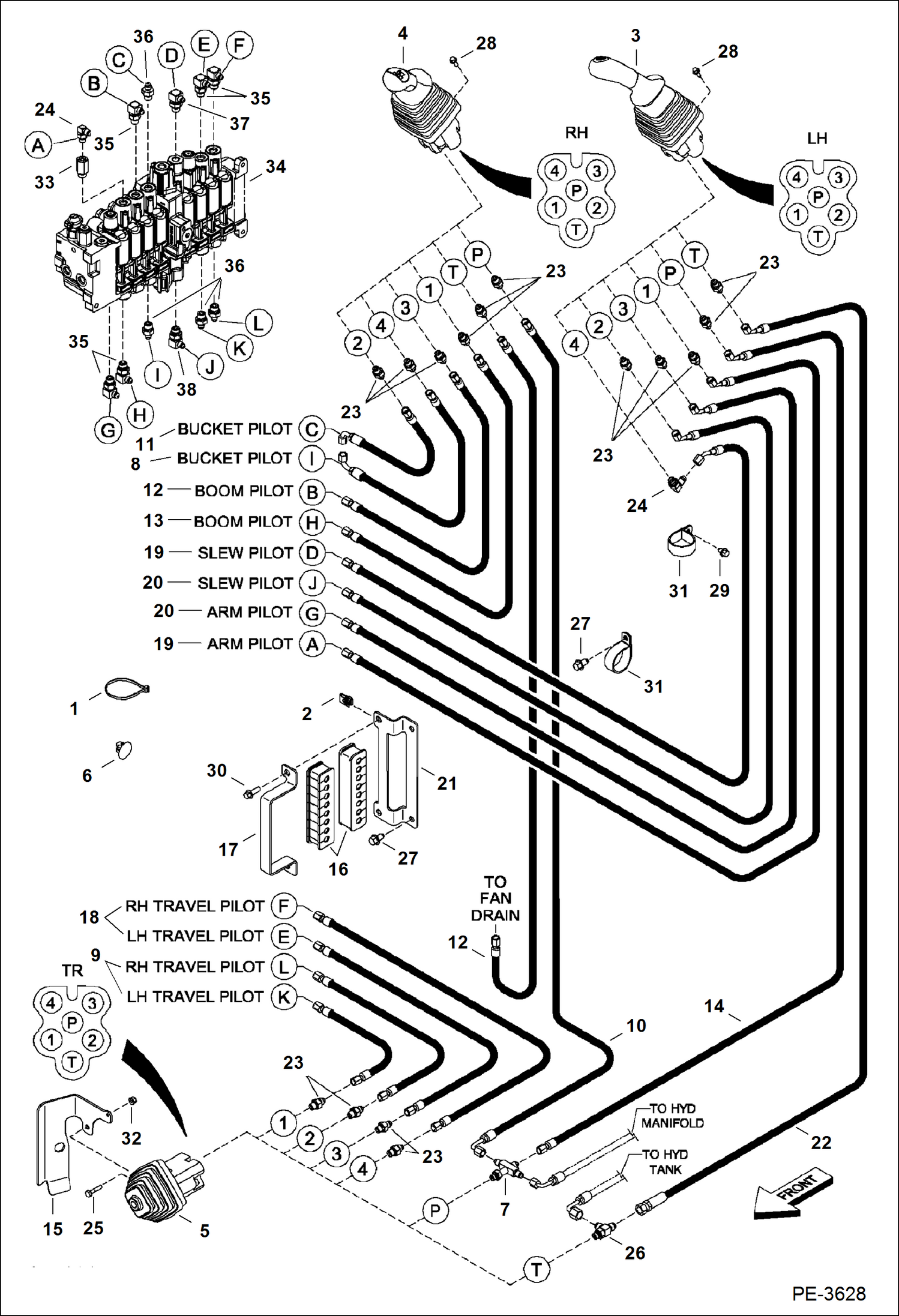

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Pilot) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6676169

NUT

3

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

4

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

5

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

6

6691172

PLUG

7

6812829

CROSS

7

79K4

O RING 10

8

7106588

HOSE

9

7106597

HOSE

10

7106599

HOSE

11

7106603

HOSE

12

7106611

HOSE

13

7106615

HOSE

14

7107672

HOSE

15

7126056

GUIDE

16

7133310

GUIDE, HOSE

17

7134800

BRACKET

18

7141873

HOSE

19

7142536

HOSE

20

7142538

HOSE

21

7144687

BRACKET

22

7145071

HOSE

23

15KB0404

FTG HYD S Connector

23

79K4

O RING 10

24

17KB0404

FTG HYD ELBOW 90

24

79K4

O RING 10

25

17C420

BOLT

26

21KB604

FITTING

26

79K4

O RING 10

27

26GM10020

BOLT

28

26GM6020

SCREW

29

26GM8013

BOLT

30

29CM825

BOLT

31

30H85

CLAMP

32

83D4

NUT 10

33

6686900

ORIFICE

34

6689571

VALVE ASSY See Illustration CONTROL VALVE/ MS1430

35

7124150

ELBOW

35

79K6

O RING 10

36

15KB0406

FTG HYD S CONNECTOR

36

79K6

O RING 10

37

7124150

ELBOW

37

TEE See Illustration EUROPEAN ACCESSORIES/ NA2153 - for Europe slew lock option

37

79K6

O RING 10

38

7124150

ELBOW

38

TEE See Illustration EUROPEAN ACCESSORIES/ NA2153 - for Europe slew lock option

38

79K6

O RING 10
