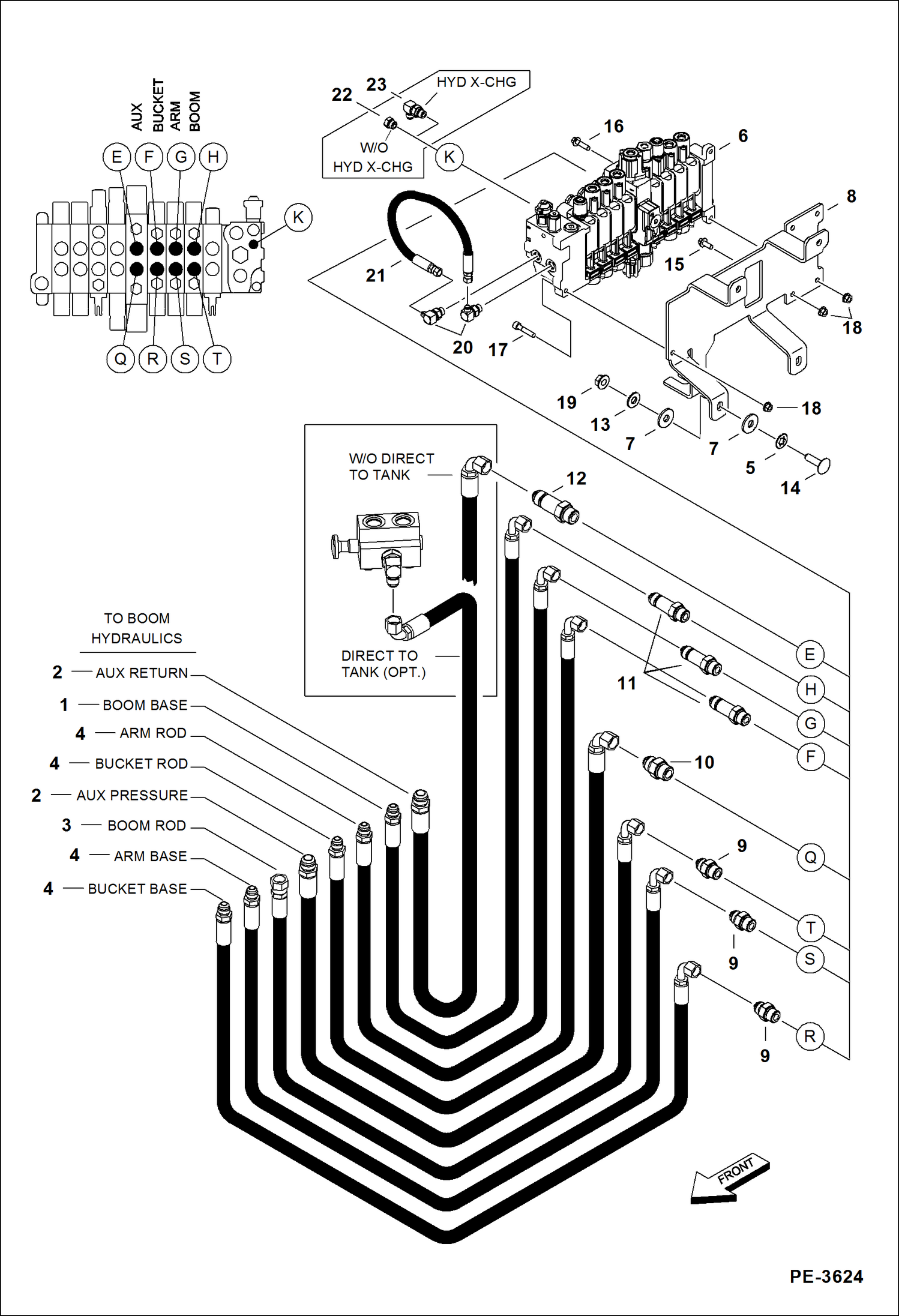

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Work Hoses & Control Valve) HYDRAULIC SYSTEM

1

6628581

HOSE

2

6807460

HOSE

2

HOSE See Illustration SECONDARY AUXILIARY/ NA2110 for secondary auxiliary option

3

6813914

HOSE

4

6815874

HOSE

5

6674264

RETAINER NUT

6

6689571

VALVE ASSY See Illustration CONTROL VALVE/ MS1430

7

6806720

INSULATOR

8

7150213

MOUNT, VALVE

9

15KB0808

FITTING, HYD CONNECTOR

9

79K8

O RING 10

10

15KB1010

FITTING, HYD CONNECTOR

10

79K10

O RING 10

11

16KB0808

FITTING, HYD CONNECTOR

11

79K8

O RING 10

12

16KB1010

FITTING, HYD ELBOW

12

79K10

O RING 10

13

17EM100

WASHER

14

21CM1035

BOLT

15

29CM820

SCREW

16

29CM830

CAPSCREW

17

3GM840

SCREW

18

51DM8

NUT

19

51DM10

NUT

20

7124150

ELBOW

20

79K6

O RING 10

21

7102958

HOSE

22

24K5

PLUG

22

79K6

O RING 10

23

7124150

ELBOW See Illustration X-CHANGE/ PE3828

23

79K6

O RING 10
