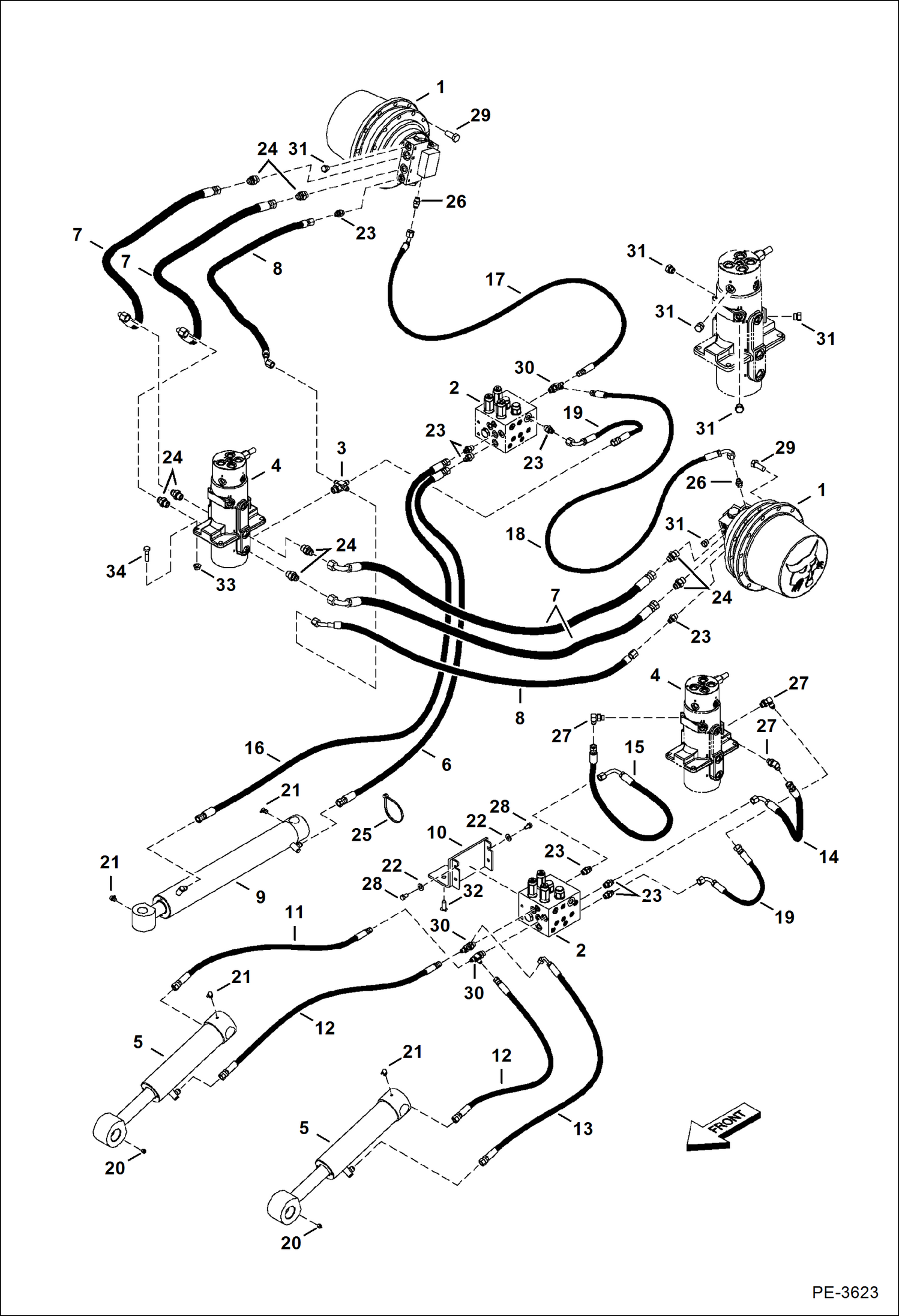

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Lower)(W/Angle Blade Option) HYDRAULIC SYSTEM

1

6691497

DRIVE MOTOR See Illustration TRAVEL MOTOR/ D2403

2

6691716

VALVE See Illustration ANGLE BLADE VALVE/ MS2585

3

6692917

TEE

3

79K8

O RING 10

4

6811778

SWIVEL See Illustration SWIVEL JOINT/ PE1906

5

7121065

CYL ASMBLY blade

6

7152118

HOSE, HYD

7

7101091

HOSE

8

7125150

HOSE

9

7134017

CYLINDER See Illustration ANGLE BLADE CYLINDER/ PE3358

10

7139102

MOUNT

11

7139106

HOSE

12

7139107

HOSE

13

7139108

HOSE

14

7139109

HOSE

15

7139110

HOSE

16

7152119

HOSE, HYD

17

7143783

HOSE

18

7143784

HOSE

19

7143793

HOSE

20

10H25

FITTING, GREASE 5

21

12H15

FITTING, GREASE 5

22

15EM80

WASHER

23

15KB0606

FITTING, HYD CONNECTOR

23

79K6

O RING 10

24

15KB0808

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

6678669

STRAP

26

NIPPLE See Illustration TRAVEL MOTOR/ D2403

27

17KB0606

FITTING

27

79K6

O RING 10

28

55CM816

BOLT

29

55CM1435

SCREW

30

21KB0406

FTG HYD STRAIGHT TEE

30

79K6

O RING 10

31

24K5

PLUG

31

79K6

O RING 10

32

26GM10030

BOLT

33

43DM10

NUT

34

53CM1040

SCREW
