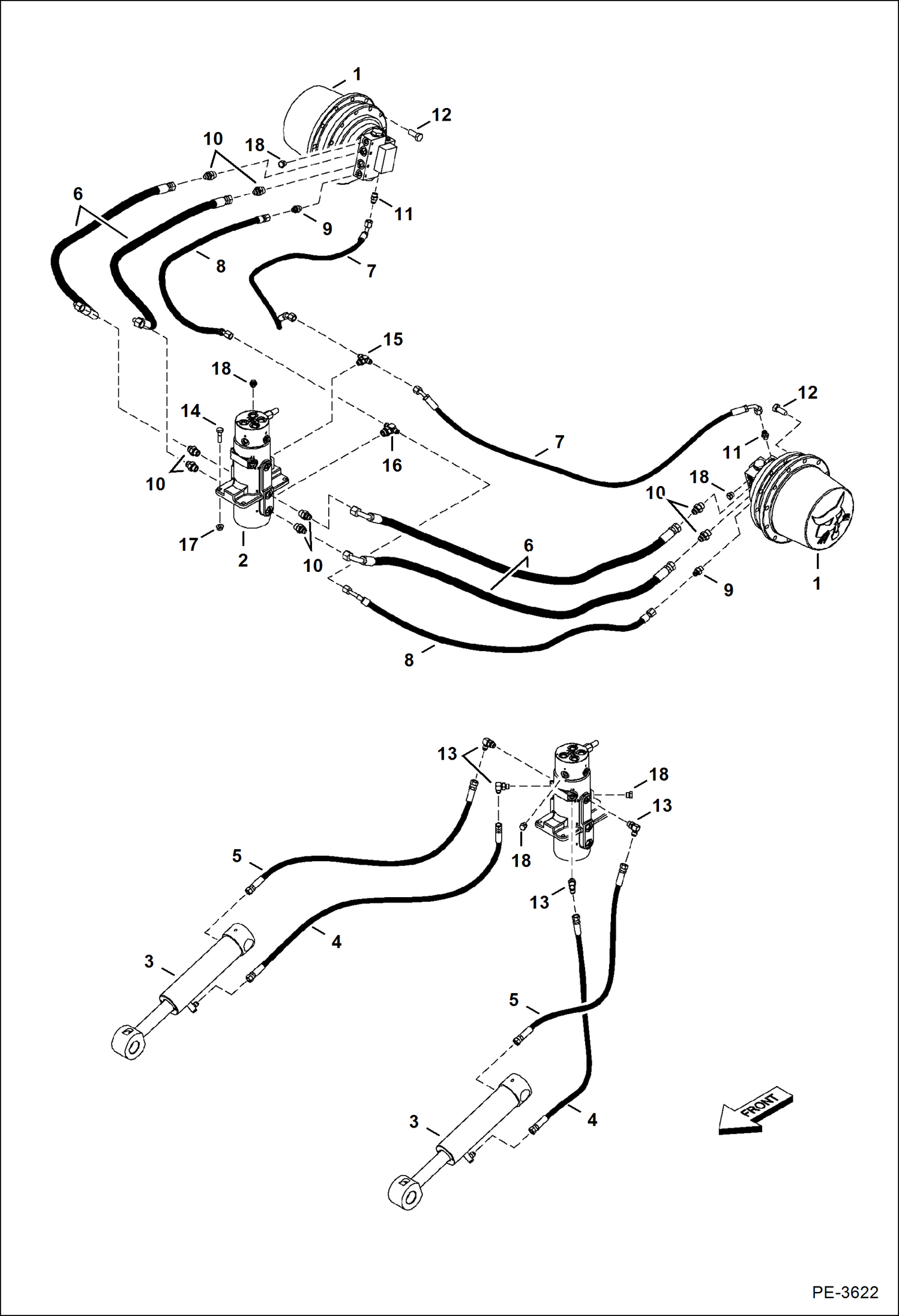

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Lower) HYDRAULIC SYSTEM

1

6691497

DRIVE MOTOR See Illustration TRAVEL MOTOR/ D2403

2

6811778

SWIVEL See Illustration SWIVEL JOINT/ PE1906 - assy

3

7121065

CYL ASMBLY See Illustration BLADE CYLINDER/ PE1978

4

6812230

HOSE

5

6812231

HOSE

6

7101091

HOSE

7

7105228

HOSE

8

7125150

HOSE

9

15KB0606

FITTING, HYD CONNECTOR

9

79K6

O RING 10

10

15KB0808

FITTING, HYD CONNECTOR

10

79K8

O RING 10

11

ADAPTOR See Illustration TRAVEL MOTOR/ D2403

12

55CM1435

SCREW

13

17KB0606

FITTING

13

79K6

O RING 10

14

53CM1040

SCREW

15

19KB0606

TEE

15

79K6

O RING 10

16

19KB0608

UNION

16

79K8

O RING 10

17

43DM10

NUT

18

24K5

PLUG

18

79K6

O RING 10
