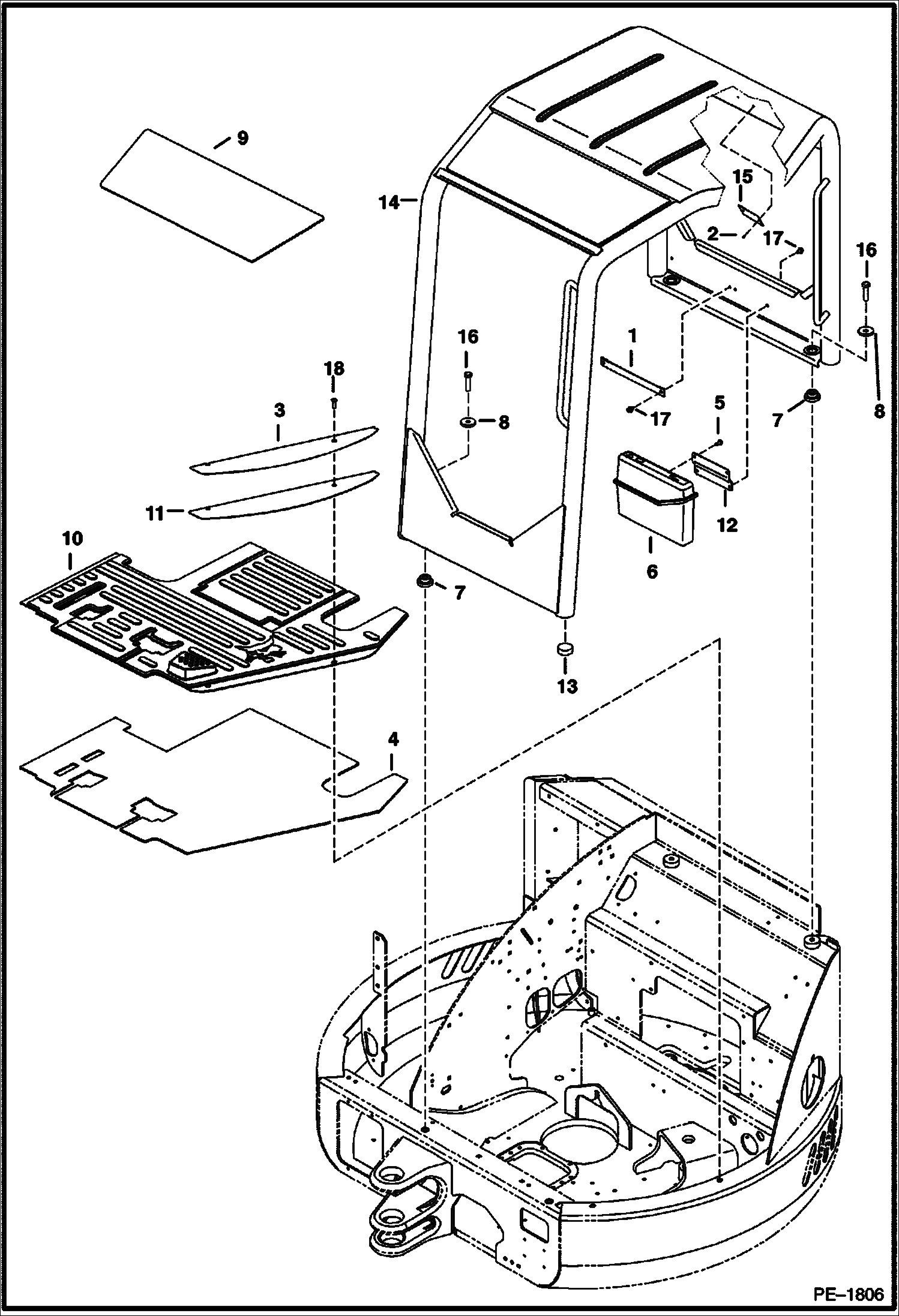

Запчасти Bobcat 430 OPERATOR CANOPY MAIN FRAME

1

6589347

STRAP

2

6630207

RIVET 5

3

6680293

TREAD

4

6684561

FLOORMAT

5

6702642

SCREW

6

6708827

CONTAINER

7

7001052

MOUNT, ENG Was 6804026 - A

8

6805244

WASHER

9

6812030

WINDOW Use 6808882 adhesive, 7102268 primer, & 7110861 cleaner

10

7121606

FLOORMAT, CANOPY Was 6812711 - A

11

6812714

PLATE

12

6813083

BRACKET

13

6816135

INSULATION

14

CANOPY See Illustration CANOPY KIT/ PE3337 - NLA - Was 6818380 - A

15

6818403

PLATE

16

10CM1455

BOLT

17

26GM8016

SCREW

18

27CM1030

BOLT
