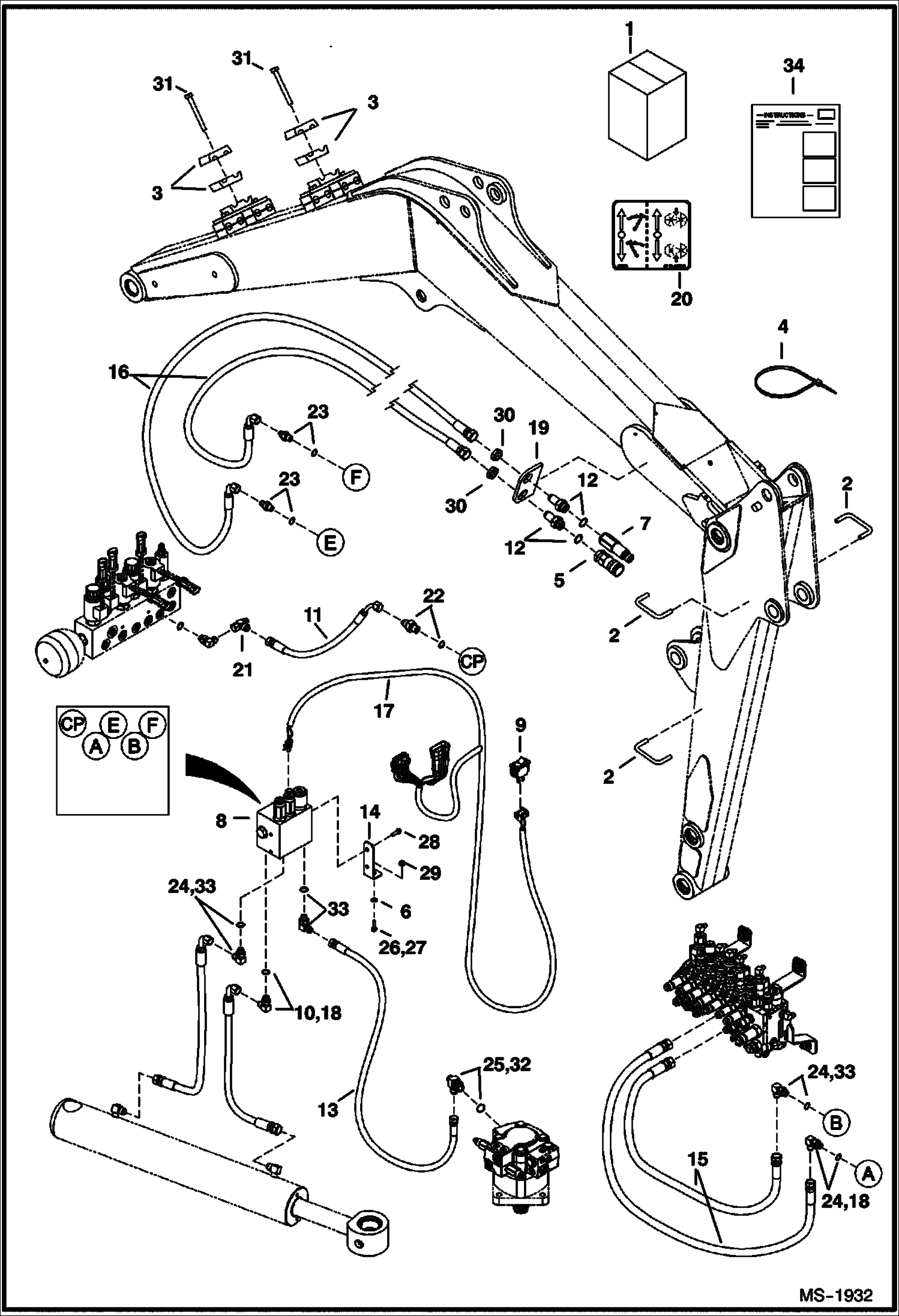

Запчасти Bobcat 430 SECONDARY AUXILIARY KIT ACCESSORIES & OPTIONS

1

7128299

KIT, AUX SECONDARY Ref 2-34 - Was 6816880 - A

2

6586391

GUIDE weld-on

3

6592506

CLAMP

4

6624289

STRAP, TIE

5

6672960

COUPLER, FF FEMALE straight

6

6674264

RETAINER NUT

7

6674688

COUPLER, FF MALE straight

8

6679888

VALVE ASSY See Illustration SECONDARY AUXILIARY VALVE/ MS1471

9

6679906

SWITCH

10

6812815

FITTING for 430 models

10

79K6

O RING 10

11

6806995

HOSE

12

6812816

ADAPTER hose

12

79K12

O RING 10

13

6815035

HOSE

14

6816892

BRACKET

15

7103893

HOSE

16

6816894

HOSE

17

6818394

HARNESS

18

7103659

FITTING for 435 models

18

79K6

O RING 10

19

6958354

PLATE

20

6958363

DECAL

21

13K3

TEE

22

15KB0406

FTG HYD S CONNECTOR

22

79K6

O RING 10

23

15KB0606

FITTING, HYD CONNECTOR

23

79K6

O RING 10

24

17KB0606

FITTING

24

79K6

O RING 10

25

13K6

TEE for 435 models

26

28CM1020

BOLT

27

29CM1020

BOLT

28

35C510

BOLT

29

51DM10

NUT

30

86F7

LOCK NUT

31

1CM8100

SCREW

32

21KB0808

FTG HYD STRAIGHT TEE for 430 models

32

79K8

O RING 10

33

17KB0806

FITTING, HYD ELBOW for 435 models

33

79K6

O RING 10

34

6904858

INSTRUCTIONS
