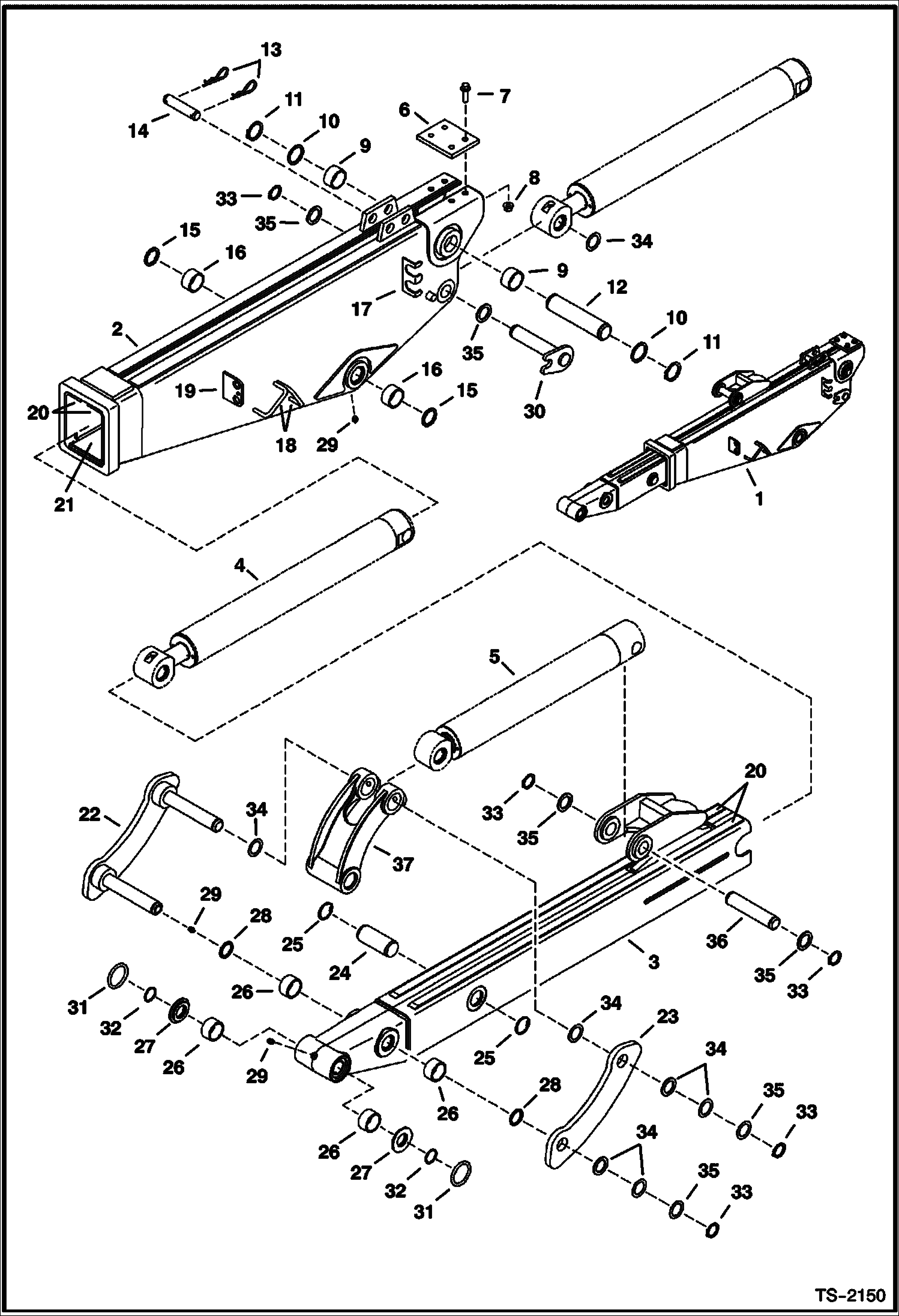

Запчасти Bobcat 430 EXTENDABLE ARM ACCESSORIES & OPTIONS

1

7110540

ARM W/A Ref. 2, 3, 6-14, 16-21 & 24-27 - Does Not Include Ref. 4 extension cyl. - Was 6812292 - A

2

DIPPER ARM NLA - outer W/ 2.31''(58,6mm) center to center of holes in arm lock plates- Order Ref. 1 - Was 6810387 - A

2

7111558

DIPPER ARM outer W/ 3.81''(96,7mm) center to center of holes in arm lock plates - W/Ref. 17-21 - Also Order Ref. 9, 15 & 16

3

INNER ARM NLA - W/fabricated bucket cyl. mount - Order Ref. 1 - Was 7110539 - A

3

7107359

ARM, INNER EXTENDABLE W/cast bucket cyl. mount - Also Order Ref. 26-28 & 32

4

6810433

CYLINDER See Illustration EXTENDABLE ARM CYLINDER/ NA2431 extension

5

7148457

CYLINDER See Illustration BUCKET CYLINDER/ PE1979A bucket - Was 7110562 - A

6

6805396

PLATE

7

30CM1240

BOLT

8

51DM12

NUT

9

6806122

SPACER

10

6628547

WASHER

11

6668787

RING

12

6805847

PIN extension cyl. base

13

6675029

PIN retaining

14

6805348

PIN locking

15

6660075

SEAL dust

16

6815277

BUSHING Was 6803207 - A

17

6805848

BRACKET weld on

18

6586391

GUIDE weld-on

19

6803509

PLATE weld on

20

6805382

STRIP wear - weld on

21

6805389

STRIP wear - weld on

22

7173236

LINK, GUIDE W/A Was 7131038 - A

23

7173237

LINK, GUIDE W/A Was 7131041 - A

24

6805381

PIN extension cyl. rod end

25

8JM45

SNAP RING

26

6803213

BUSHING, PRESS FIT 2'' (51 mm) long

27

6810627

WASHER

28

6652915

SEAL, OIL dust

29

10H25

FITTING, GREASE 5

30

6805845

PIN arm mounting

31

6811260

O-RING

32

25K40112

O RING 10

33

6534154

RING

34

6811636

SPACER

35

6534111

WASHER

36

6596216

PIN

37

LINK See Illustration BUCKET LINK & X-CHANGE/ PE3260 bucket
