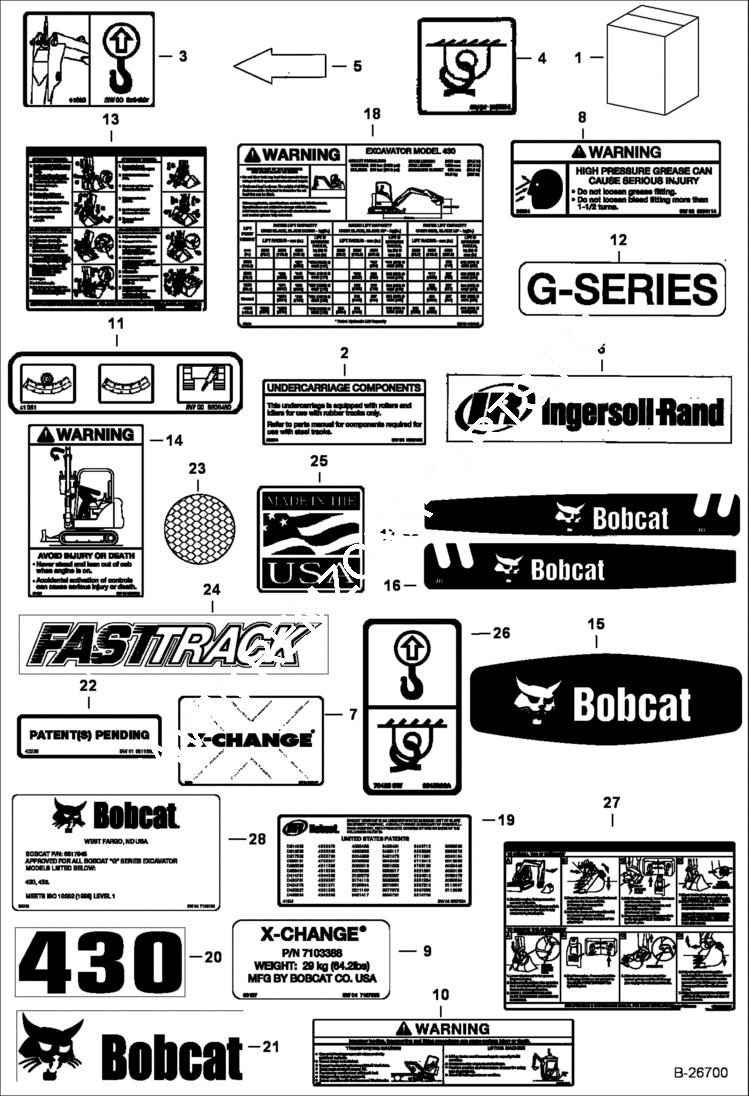

Запчасти Bobcat 430 DECALS (Outside) ACCESSORIES & OPTIONS

1

6986668

KIT DECAL See Illustration DECALS/ B25033 includes Ref. 2-28 - Also includes Ref. 2-27 on this page

1

7126817AR

KIT TRANS DECAL

1

7126817BR

KIT TRANS DECAL

1

7126817JP

KIT TRANS DECAL

1

7126816AR

KIT TRANSLATION

1

7126816BR

KIT TRANSLATION

2

6589129

DECAL track-rubber

3

6594897

DECAL boom lift

4

6595014

DECAL tie down

5

6533899

DECAL arrow

6

DECAL NLA - IR Logo - Black - Was 6735864 - A

7

6803760

DECAL X-Change

8

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

9

7107953

DECAL pin-on X-Change

9

7142034

DECAL hydraulic X-Change

10

6808185

DECAL warning

11

6808480

DECAL remote grease

12

6817056

DECAL G series

13

7102651

DECAL using pin-on X-Change

14

6809829

DECAL warning

15

6812258

DECAL rear logo

16

6813506

DECAL RH logo

17

6813507

DECAL LH logo

18

7107910

DECAL lift capacity

18

7107911

DECAL lift capacity - long arm

18

7107912

DECAL lift capacity - extendable arm

19

DECAL NLA - patent - Was 6557224 - C

20

6815021

DECAL 430

21

6815489

DECAL logo - 402 mm (15.81'') long

21

6727324

DECAL, LOGO BOBCAT AND HEAD 210 mm (8.25'') long

22

DECAL NLA - patent pending - Was 6810666 - A

23

7106627

DECAL, REFLECTIVE reflective

24

6815981

DECAL fast track

25

DECAL NLA - Was 7136123 - A

26

6815993

DECAL, LIFT tie down

27

7134587

DECAL, X-CHANGE using hydraulic X-Change

28

7103193

DECAL top guard - not in kit

28

7103194

DECAL spcl apps canopy - not in kit

28

7103195

DECAL spcl apps cab - not in kit
