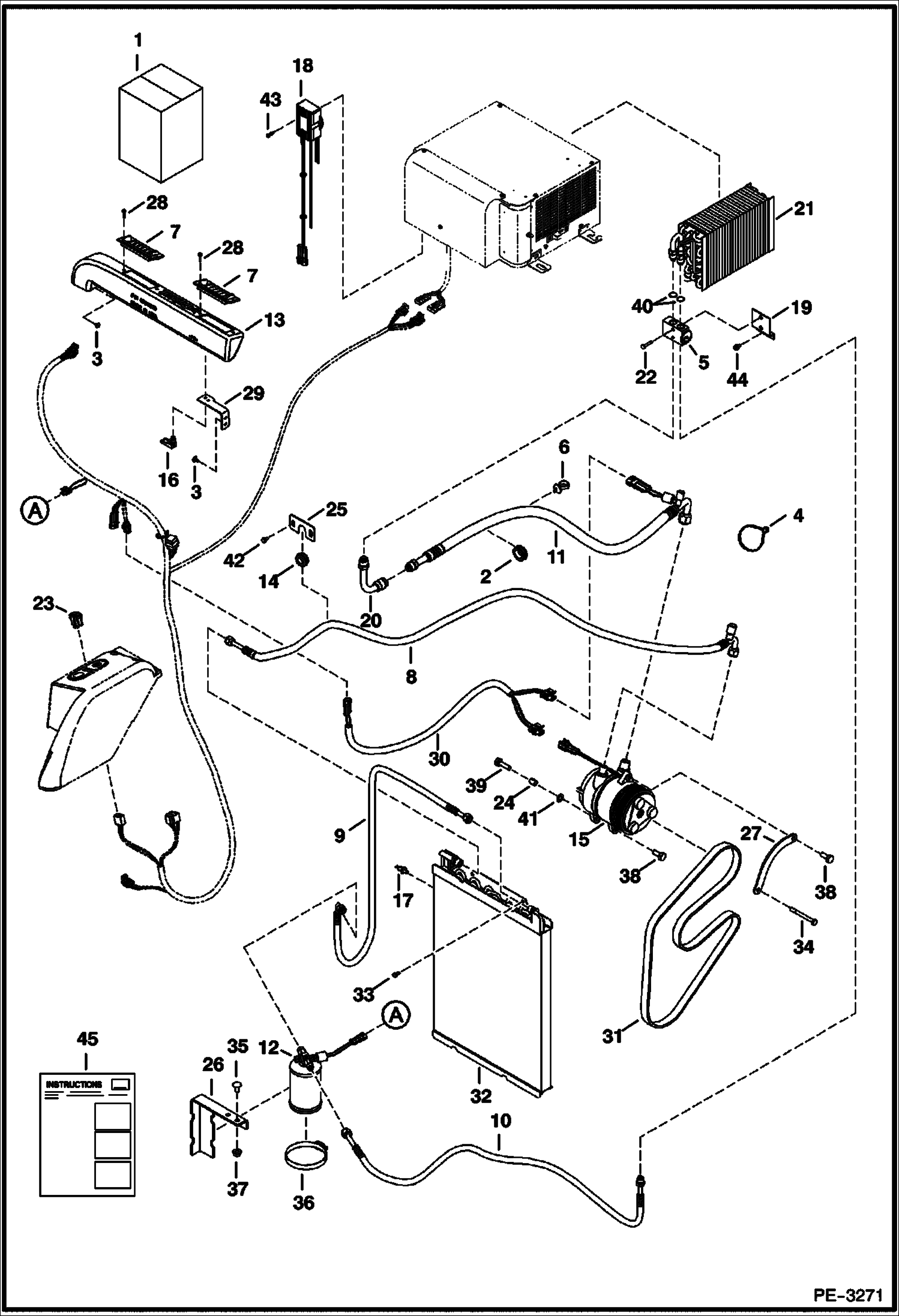

Запчасти Bobcat 430 A/C KIT (S/N 563012706 & Above) ACCESSORIES & OPTIONS

1

7137272

KIT A/C UPGRADE W/Ref 2-41 & 45 - for heater box W/front access filter

2

6515603

GROMMET

3

6589675

SCREW

4

6624289

STRAP, TIE

5

6675534

BLOCK, VALVE A/C

6

6675734

STRAP, TIE

7

6676713

LOUVER

8

6680303

HOSE

8

7001433

CAP, END charge port cap

8

7009977

O-RING #8 - Was 6675538 - A

9

6680304

HOSE

9

7009976

O-RING #6 - Was 6675824 - A

10

6680305

HOSE

10

7009976

O-RING #6 - Was 6675824 - A

11

6680306

HOSE W/ switch 6679085

11

6679085

SWITCH LPCO

11

7001433

CAP, END charge port cap

11

7009978

O-RING #10 - Was 6675825 - A

12

6680311

RECEIVER W/ switch 6686358

12

SWITCH NLA - HPCO - Was 6686358 - A

13

6680976

DUCT

14

6681567

GROMMET

15

6681716

COMPRESSOR, A/C

16

6681878

LATCH

17

6682990

CLIP

18

6683004

THERMOSTAT

19

6684559

BRACKET

20

6684649

ADAPTER

20

79K10

O RING 10

21

6691533

EVAPORATOR

22

6691534

SCREW

23

7169112

SWITCH, ROCKER A/C Was 6719176 - A

24

6732732

BUSHING

25

6813191

PLATE

26

7164894

BRACKET, DRIER Was 6813715 - A

27

6813975

PLATE

28

6814024

SCREW

29

6814194

BRACKET

30

6814228

HARNESS

31

6815018

BELT

31

7101068

BELT not used on this model - used on newer models

32

7135618

CONDENSER

33

1CM610

BOLT

34

1CM880

BOLT

35

28CM1020

BOLT

36

42H56

CLAMP

37

43DM10

NUT

38

5CM1025

BOLT

39

5CM1030

BOLT

40

7009977

O-RING #8 - Was 6675538 - A

41

29E6

WASHER Was 28E6 - A

42

26GM8013

BOLT not in kit

43

6684556

SCREW not in kit

44

6691532

SCREW not in kit

45

6904992

INSTRUCTIONS
