Запчасти Bobcat 430 A/C KIT (S/N 563012705 & Below) ACCESSORIES & OPTIONS

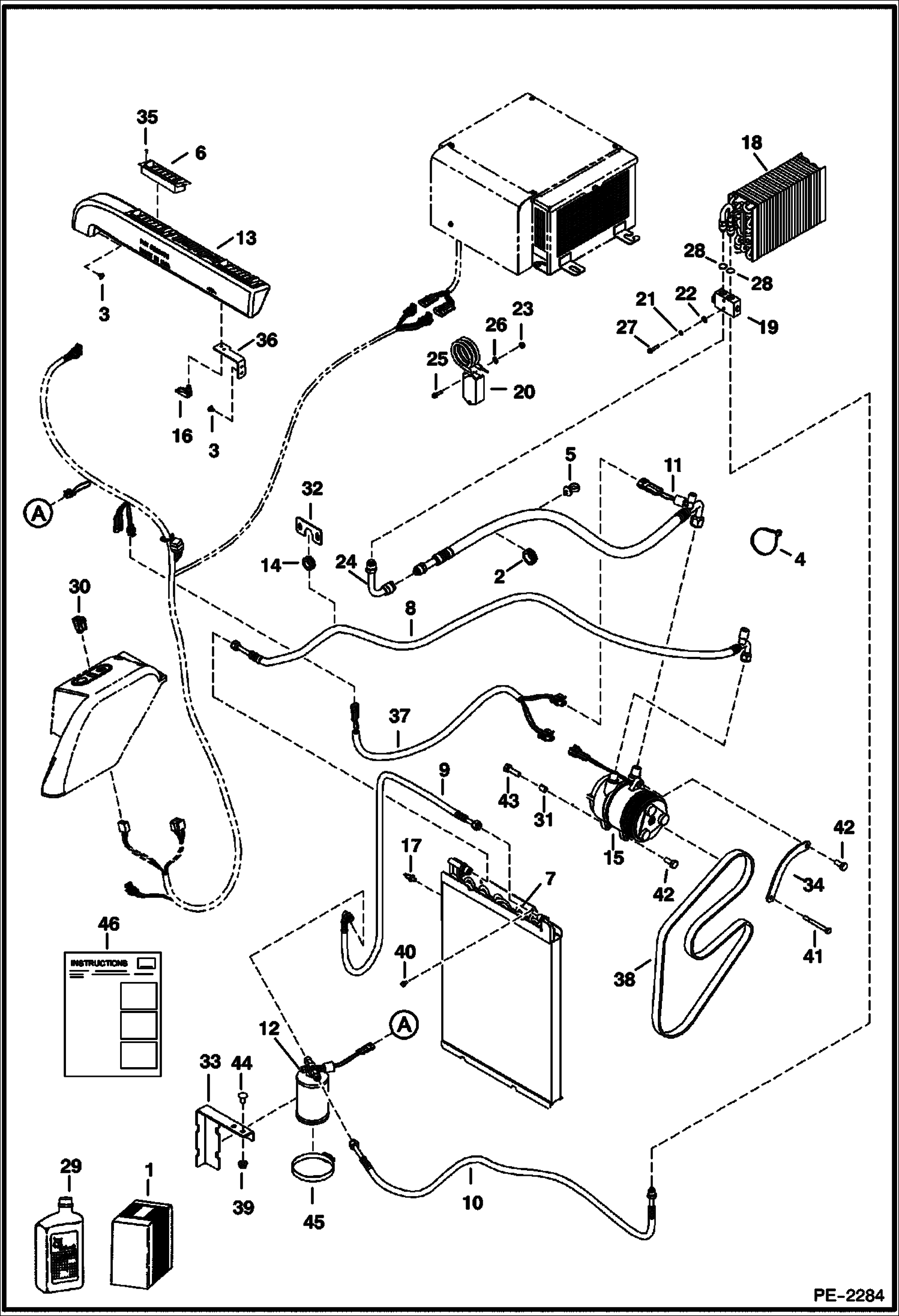

Схема запчастей Bobcat 430 - A/C KIT (S/N 563012705 & Below) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6817109

A/C UPGRADE KIT for heater box W/top access filter

2

6515603

GROMMET

3

6589675

SCREW

4

6624289

STRAP, TIE

5

6675734

STRAP, TIE button head

6

6676713

LOUVER

7

7135618

CONDENSER Was 6678831 - A

8

6680303

HOSE

8

7001433

CAP, END charge port cap

8

7009977

O-RING #8 - Was 6675538 - A

9

6680304

HOSE

9

7009976

O-RING #6 - Was 6675824 - A

10

6680305

HOSE

10

7009976

O-RING #6 - Was 6675824 - A

11

6680306

HOSE W/ switch 6679085

11

6679085

SWITCH

11

7001433

CAP, END charge port cap

11

7009978

O-RING #10 - Was 6675825 - A

12

6680311

RECEIVER W/ switch 6686358

12

SWITCH NLA - HPCO - Was 6686358 - A

13

6680976

DUCT

14

6681567

GROMMET

15

6681716

COMPRESSOR, A/C

16

6681878

LATCH

17

6682990

CLIP

18

6683909

COIL

19

6683910

VALVE

20

6683911

SWITCH, THERMOSTAT thermostat

21

6684499

WASHER lock

22

6684500

WASHER flat

23

6684520

NUT

24

6684649

ADAPTER

25

6685114

SCREW

26

6685115

WASHER flat

27

6685116

SCREW

28

6685117

O-RING

29

6685118

OIL

30

7169112

SWITCH, ROCKER A/C Was 6719176 - A

31

6732732

BUSHING

32

6813191

PLATE

33

7164894

BRACKET, DRIER Was 6813715 - A

34

6813975

PLATE

35

6814024

SCREW

36

6814194

BRACKET

37

6814228

HARNESS

38

6815018

BELT

39

43DM10

NUT

40

1CM610

BOLT

41

1CM880

BOLT

42

5CM1025

BOLT

43

5CM1030

BOLT

44

28CM1020

BOLT

45

42H56

CLAMP

46

6902640

INSTRUCTIONS

Выбрано товаров: 54
