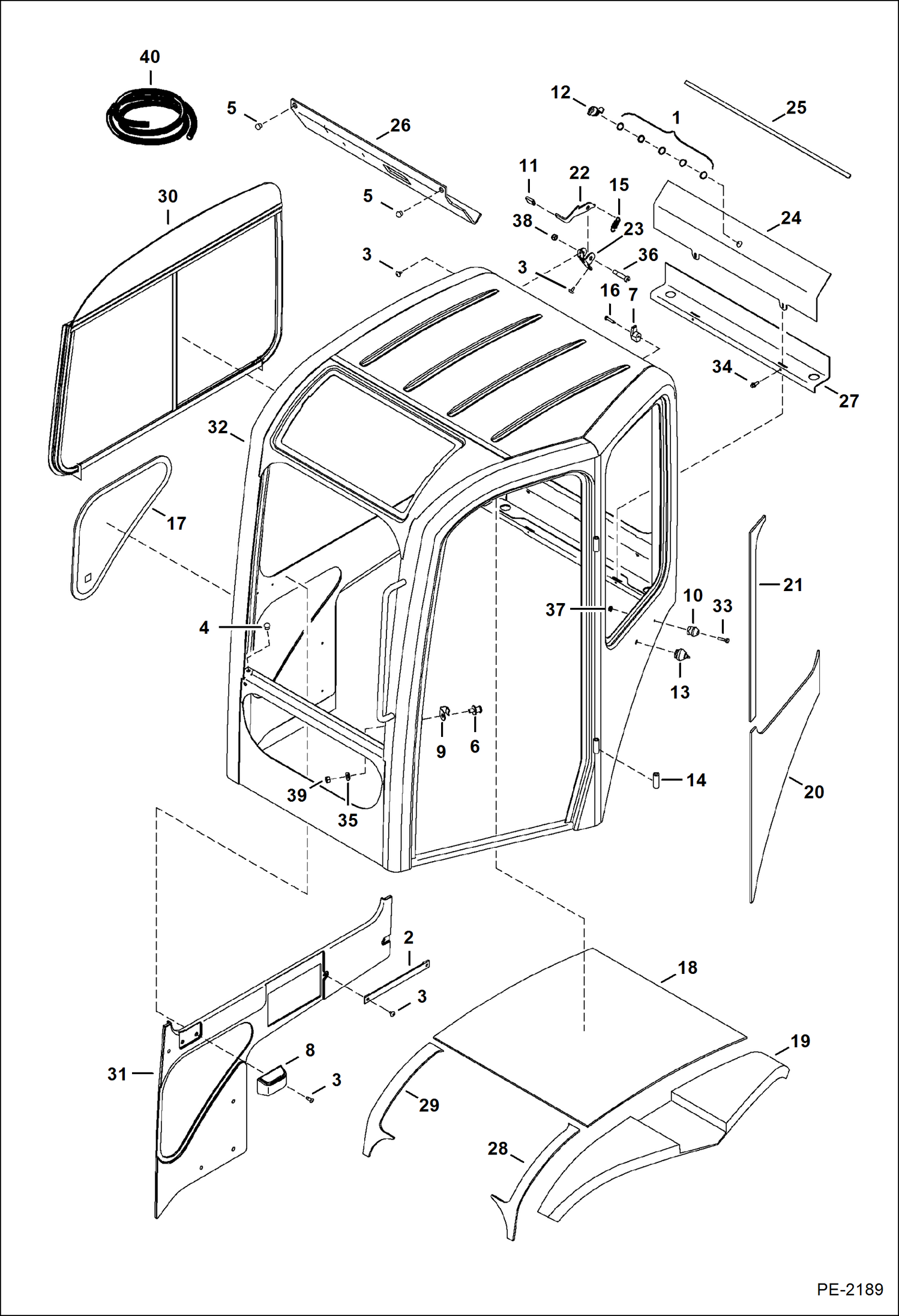

Запчасти Bobcat 430 OPERATOR CAB (RH Window & Insulation) MAIN FRAME

1

6536802

WASHER

2

6589347

STRAP

3

6589675

SCREW

4

6597572

BUMPER

5

6630207

RIVET 5

6

6654170

STRIKER BOLT See Illustration OPERATOR CAB/ PE1905 for door with 1 piece glass

6

6689007

STRIKER BOLT See Illustration OPERATOR CAB/ PE2793 for door with center rib & 2 piece glass

7

6658289

HOOK

8

6664075

ASH TRAY

9

6664083

COVER See Illustration OPERATOR CAB/ PE1905 for door with 1 piece glass

9

6688999

STRIKER GUARD See Illustration OPERATOR CAB/ PE2793 for door with center rib & 2 piece glass

10

6675385

PLUG See Illustration OPERATOR CAB/ PE1905 hold open - for door with 1 piece glass

11

6677500

HANDLE

12

6681922

LATCH

13

6689001

STRIKER See Illustration OPERATOR CAB/ PE2793 hold open - for door with center rib & 2 piece glass

14

6719341

HINGE

15

6714210

SPRING

16

6808424

SCREW

17

6811792

WINDOW RH - Use 6808882 adhesive, 7102268 primer, & 7110861 cleaner

18

6813567

INSULATION door

19

6813568

INSULATION

20

7117116

INSULATION SIDE Was 7102644 - A

21

6814241

INSULATION

22

6814721

HANDLE

23

6814724

LATCH

24

6814958

COVER rear

25

SEAL NLA - 30'' (762 mm) long - Order Ref. 40

26

6815626

INSULATION

27

6816115

PAD

28

6818275

INSULATION RH - front

29

6818276

INSULATION LH - front

30

WINDOW See Illustration OPERATOR CAB/ PE2297

31

7101010

INSULATION

32

CAB W/A See Illustration CAB KIT/ PE3335 NLA - welded assy - Was 7134857 - A

33

17C416

BOLT

34

26GM6020

SCREW

35

27E6

WASHER 5

36

1303190

PIN, CLEVIS Was 38C000620B - B

37

55D4

NUT

38

1306637

CLIP Was 59D000005B - B

39

61D7

NUT

40

6648416

SEAL BULK /FT bulk - sold per foot
