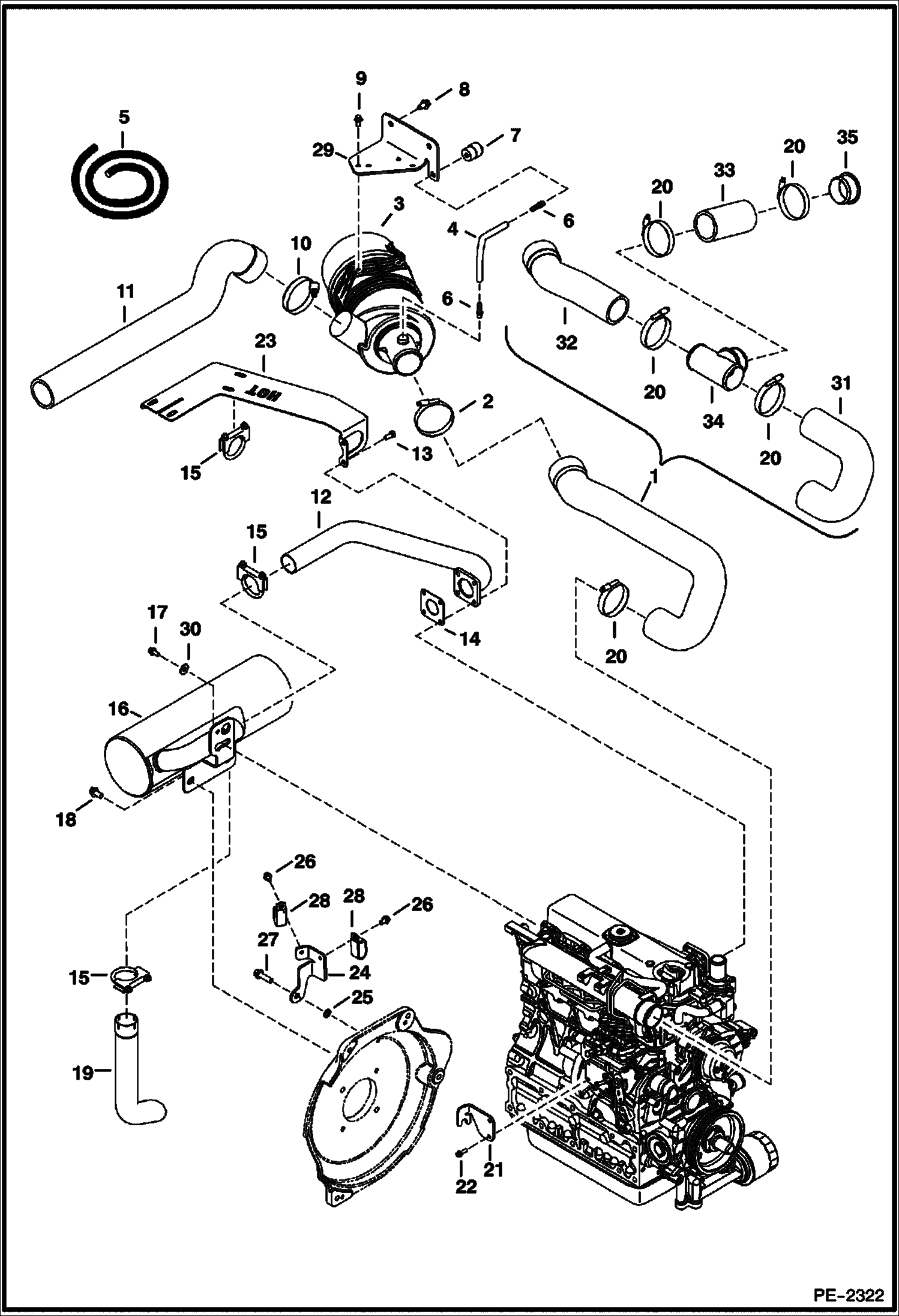

Запчасти Bobcat 430 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler) POWER UNIT

1

6814623

HOSE

1

HOSE ASSY NLA - Europe sound requirement - Order Ref 20, 31-35

2

42HC325

CLAMP

3

6678769

AIR CLEANER

4

HOSE NLA - use 13.5'' (343mm) of Ref. 5

5

6557720

HOSE bulk - sold per foot

6

6505813

CONNECTOR

7

6515007

GAUGE

8

26GM10020

BOLT

9

29CM816

SCREW

9

12D8

NUT

10

42H40

HOSECLAM5

11

6816123

HOSE

11

7117207

HOSE Europe sound requirement - used with 7120147 plate

12

7000322

TUBE, EXHAUST Was 6682483 - A

13

6701123

SCREW

14

6727752

GASKET

15

6677363

CLAMP, FULL CIRCLE

15

6677363

CLAMP, FULL CIRCLE

16

MUFFLER, EXHAUST NLA - Order 7000320 muffler & 7000323 pipe - Was 6689041 - A

16

7000320

MUFFLER, EXHAUST Was 7171576 - A

17

29CM816

SCREW

18

29CM1020

BOLT

19

7000323

PIPE, TUBE EXHAUST Was 7140376 - A

20

42HC300

CLAMP

20

42HC300

CLAMP Europe sound requirement

21

6814273

BRACKET throttle

22

29CM620

SCREW

23

COVER NLA - exhaust - Order 7127718 - Was 6817602 - A

23

7127718

COVER EXHAUST exhaust

24

7102968

BRACKET

25

15EM100

WASHER

26

26GM8016

SCREW

27

29CM1035

SCREW

28

31H42

CLIP

29

6814640

BRACKET

30

17EM80

WASHER Was 27E000005B - A

31

7120198

HOSE INTAKE Europe sound requirement

32

7120199

HOSE INTAKE Europe sound requirement

33

7120200

HOSE INTAKE Europe sound requirement

34

7120203

TEE HOSE Europe sound requirement

35

7120204

CAP HOSE Europe sound requirement
