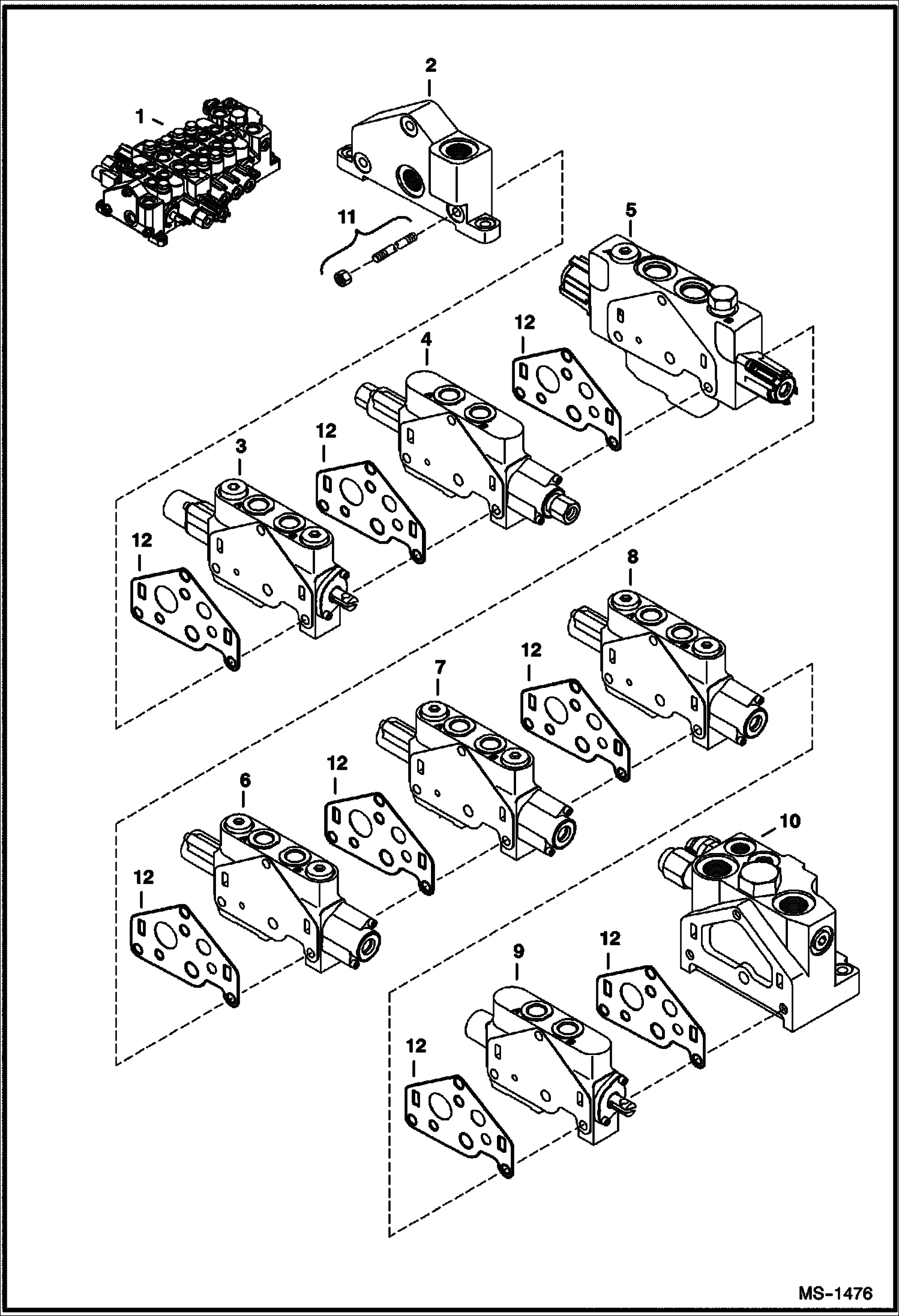

Запчасти Bobcat 430 CONTROL VALVE (7 Work Section) (S/N 563012776 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

1

6689572

VALVE W/Ref 2-12

2

6687052

VALVE outlet - Was 6691129 - A

3

6689609

VALVE SECTION See Illustration VALVE SECTION/ MS1436 blade

4

6687048

VALVE SECTION See Illustration VALVE SECTION/ MS1437 - slew - Was 6692409 - A

5

6691124

VALVE SECTION See Illustration VALVE SECTION/ MS1432 aux

6

6692407

VALVE SECTION See Illustration VALVE SECTION/ MS1438 bucket

7

6689607

VALVE SECTION See Illustration VALVE SECTION/ MS1438A arm

8

6689606

VALVE SECTION See Illustration VALVE SECTION/ MS1438B boom

9

6692406

VALVE SECTION See Illustration VALVE SECTION/ MS1433 offset

10

6687041

VALVE See Illustration VALVE SECTION/ MS1431 inlet - Was 6691118 - A

11

6692403

KIT tie rod

12

6687070

GASKET, SECTION VALVE
