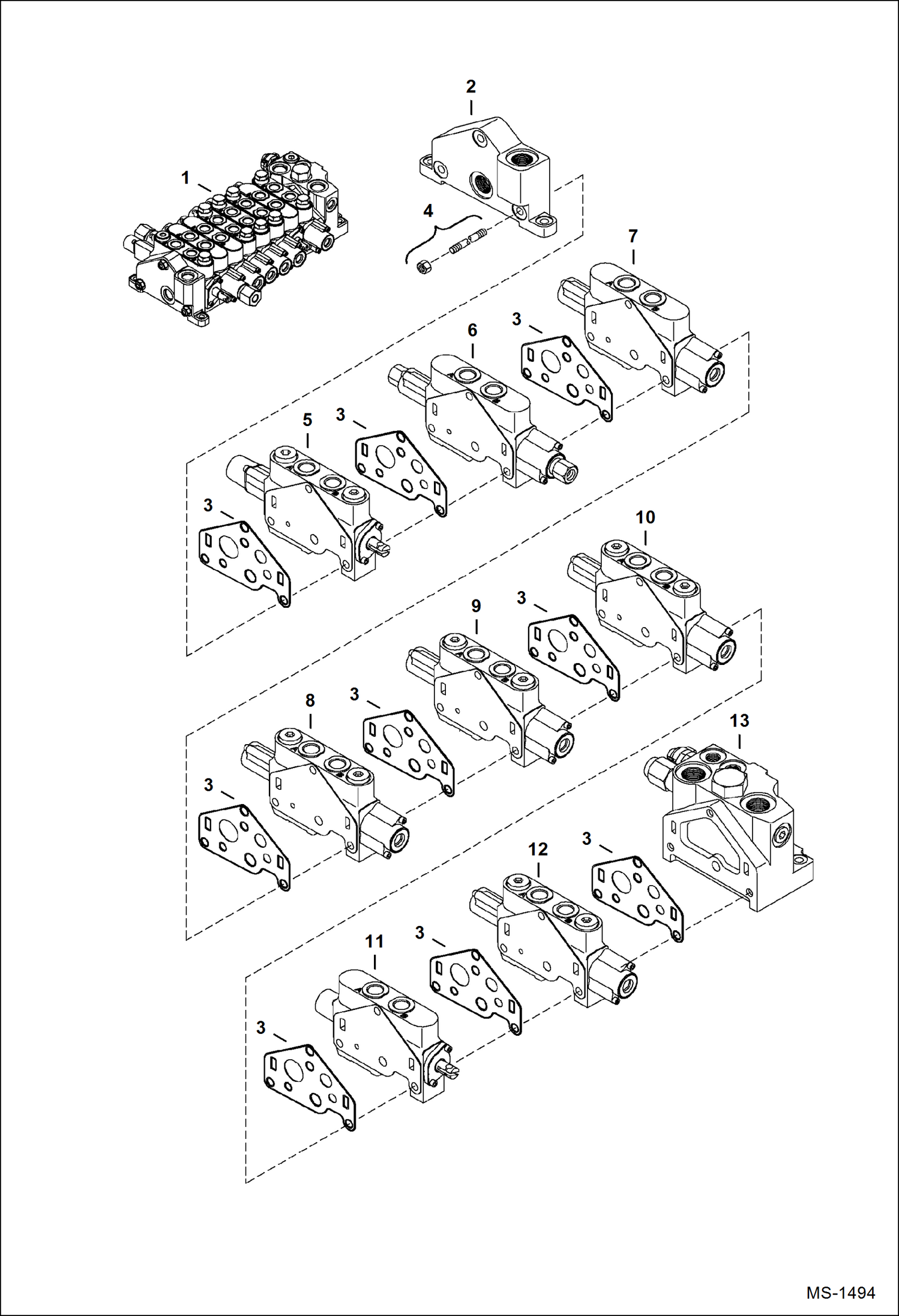

Запчасти Bobcat 430 CONTROL VALVE (8 Work Section) (S/N 563012775 & Below) HYDRAULIC/HYDROSTATIC SYSTEM

1

6689183

VALVE, CONTROL Was 6687152 - A

2

6687052

VALVE outlet - Was 6691129 - A

3

6687070

GASKET, SECTION VALVE plate

4

6687872

KIT tie rod

5

VALVE SECTION See Illustration VALVE SECTION/ MS1436 - blade

6

VALVE SECTION See Illustration VALVE SECTION/ MS1437 - slew

7

VALVE SECTION See Illustration VALVE SECTION/ MS1483 - auxiliary

8

VALVE SECTION See Illustration VALVE SECTION/ MS1438 - bucket

9

VALVE SECTION See Illustration VALVE SECTION/ MS1438A - arm

10

VALVE SECTION See Illustration VALVE SECTION/ MS1438B - boom

11

VALVE SECTION See Illustration VALVE SECTION/ MS1433 - offset

12

VALVE SECTION See Illustration VALVE SECTION/ MS1484 - auxiliary

13

VALVE SECTION See Illustration VALVE SECTION/ MS1431 - inlet
