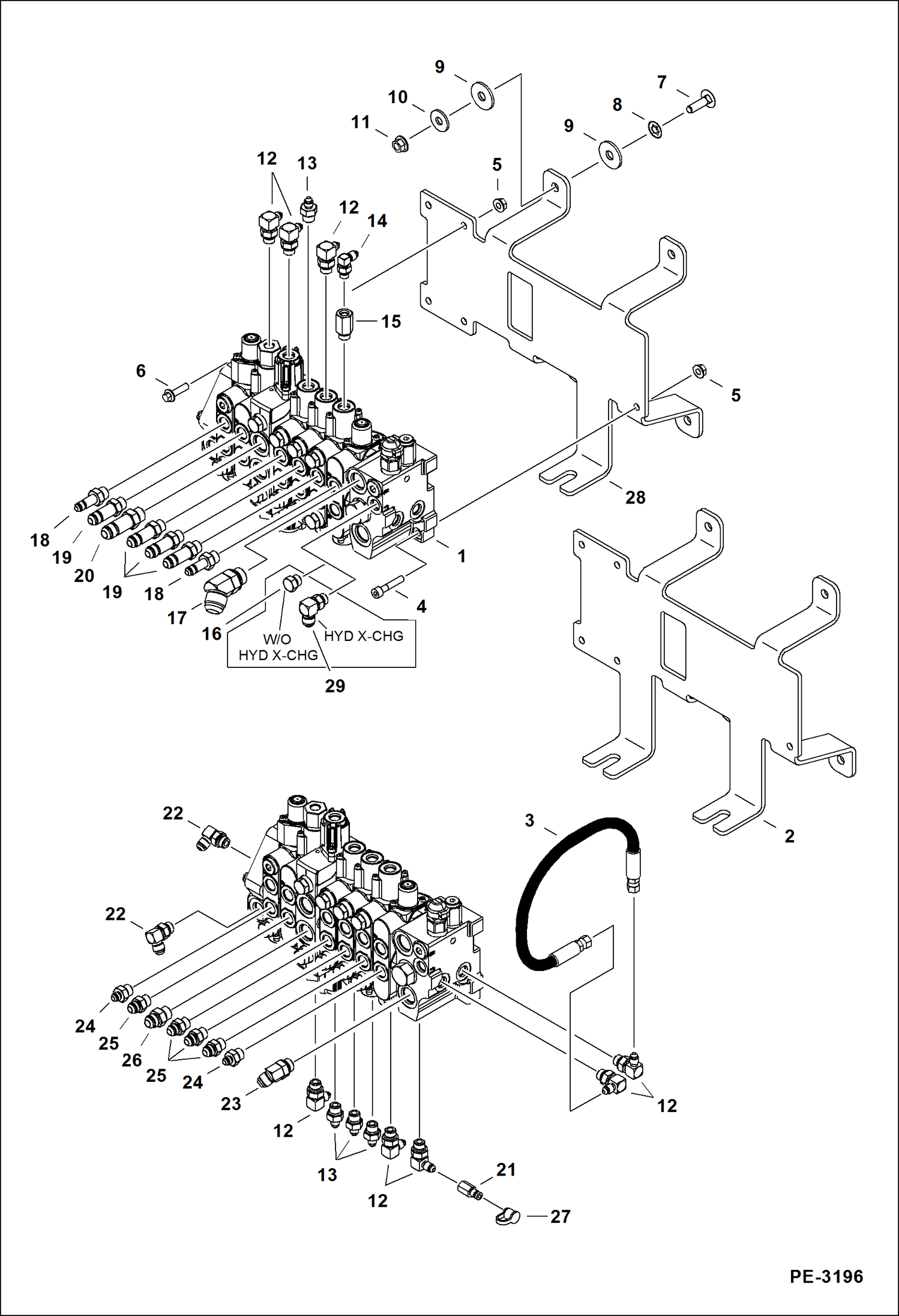

Запчасти Bobcat 430 HYDRAULIC CONTROL VALVE (7 Work Section) (S/N 563012776 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

1

6689572

VALVE See Illustration CONTROL VALVE/ MS1476

2

7143287

MOUNT

3

7102958

HOSE

4

3GM840

SCREW

5

43DM8

NUT

5

51DM8

NUT

6

29CM830

CAPSCREW

6

29CM835

BOLT

7

21CM1035

BOLT

8

6674264

RETAINER NUT

9

6806720

INSULATOR

10

17EM100

WASHER

11

51DM10

NUT

12

7124150

ELBOW

12

79K6

O RING 10

13

15KB0406

FTG HYD S CONNECTOR

13

79K6

O RING 10

14

17KB0404

FTG HYD ELBOW 90

14

79K4

O RING 10

15

6686900

ORIFICE

15

79K6

O RING 10

16

24K5

PLUG

16

79K6

O RING 10

17

18KB1210

FITTING, HYD ELBOW

17

79K6

O RING 10

18

16KB0608

FITTING, HYD CONNECTOR

18

79K8

O RING 10

19

16KB0808

FITTING, HYD CONNECTOR

19

79K8

O RING 10

20

16KB1010

FITTING, HYD ELBOW

20

79K10

O RING 10

21

7000009

PLUG

22

17KB0808

FITTING, HYD ELBOW

22

79K8

O RING 10

23

18KB1010

FITTING, HYD ELBOW

23

79K10

O RING 10

24

15KB0608

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

15KB0808

FITTING, HYD CONNECTOR

25

79K8

O RING 10

26

15KB1010

FITTING, HYD CONNECTOR

26

79K10

O RING 10

27

6630367

CAP

28

7147333

MOUNT, VALVE

28

7150213

MOUNT, VALVE

29

7124150

ELBOW See Illustration X-CHANGE/ PE3238

29

79K6

O RING 10
