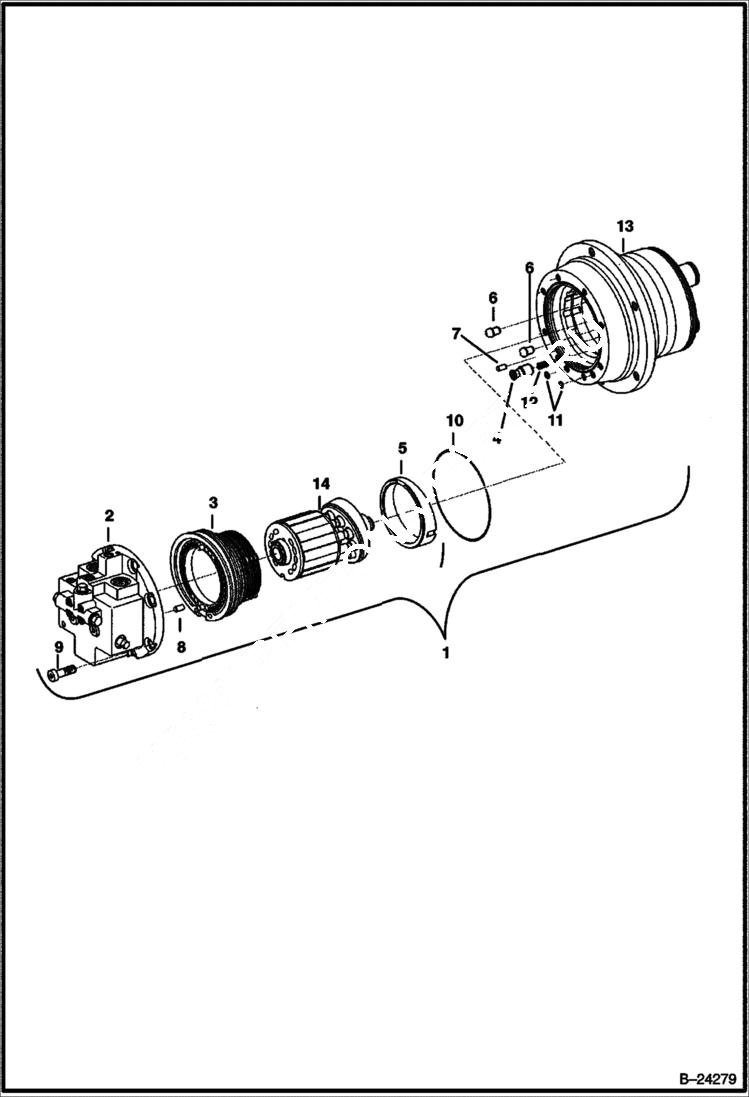

Запчасти Bobcat 430 TRAVEL MOTOR (Rotary Group) HYDRAULIC/HYDROSTATIC SYSTEM

1

MOTOR NLA - W/Ref 2-14 - Use 6683380 - Was 6686290 - A

2

6686298

PORT PLATE

3

6686598

RING See Illustration TRAVEL MOTOR/ B27335 pressure

4

6686300

PISTON

5

RING

6

6686302

SWIVEL BALL

7

6686303

PIN cylinder

8

6682919

PIN cylinder

9

6686304

SCREW socket

10

6686305

O-RING

11

6686936

GASKET gasket - Was 6686306 - A

12

6686307

SPRING pressure

13

AXLE See Illustration TRAVEL MOTOR/ B19921 NLA - Order components - Was 6686308 - A

14

6686297

ROTARY GROUP
