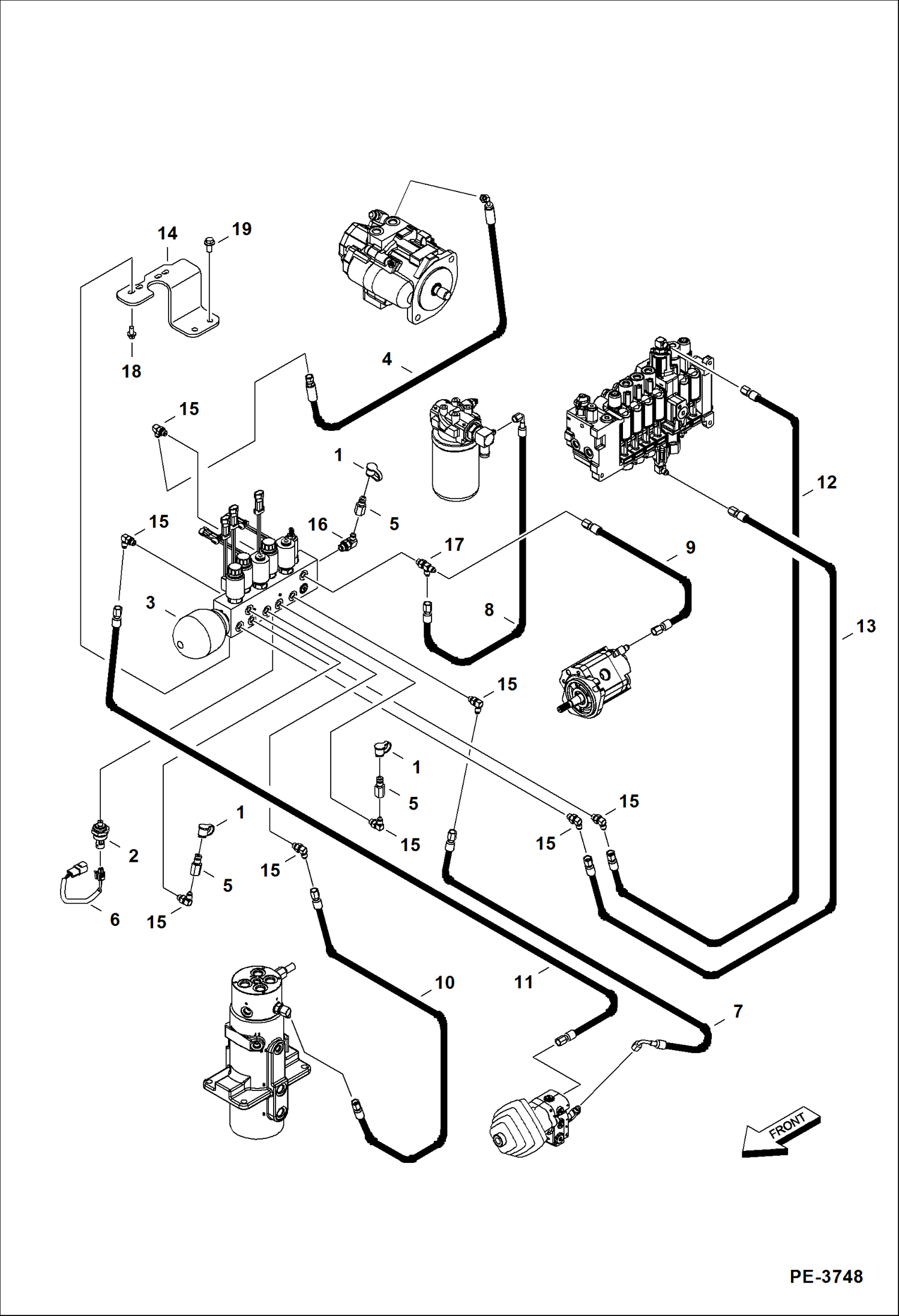

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Manifold) (S/N 563014293 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

1

6630367

CAP

2

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

3

6685165

MANIFOLD See Illustration MANIFOLD ASSY/ MS1935

4

6817255

HOSE

5

7000009

PLUG

6

7105174

HARNESS

7

7106599

HOSE

8

7106600

HOSE

9

7106615

HOSE

10

7107648

HOSE

11

7107650

HOSE

12

7141872

HOSE

13

7141873

HOSE

14

7150386

BRACKET, MANIFOLD HYD

15

17KB0404

FTG HYD ELBOW 90

15

79K4

O RING 10

16

17KB0406

FITTING, HYD ELBOW

16

79K6

O RING 10

17

21KB0404

FITTING, HYD TEE

17

79K4

O RING 10

18

29CM816

SCREW

19

29CM1020

BOLT
