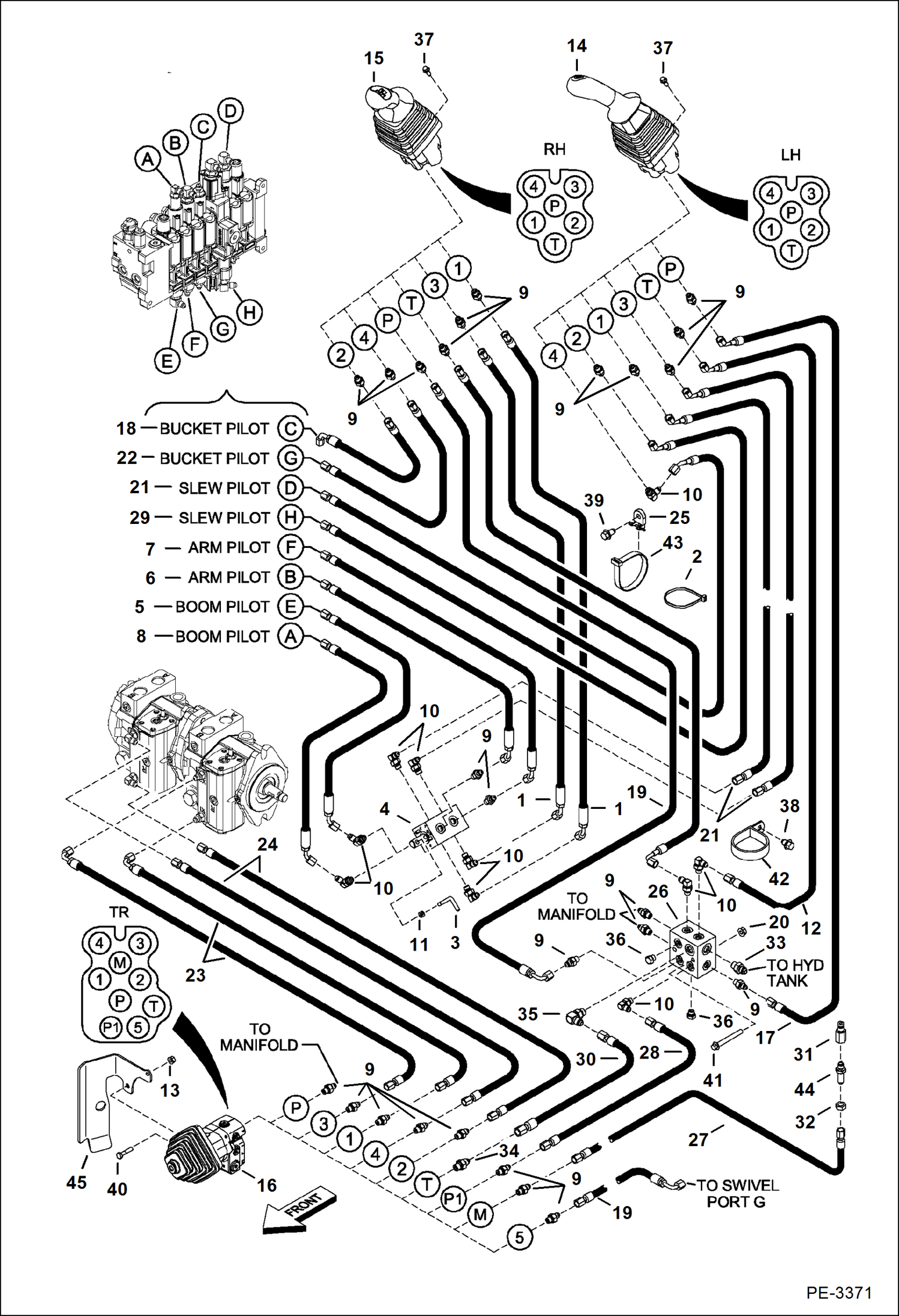

Запчасти Bobcat 430 HYDRAULIC/HYDROSTATIC CIRCUITRY (Pilot) (ISO/STD) (S/N 563012776-563014292) HYDRAULIC/HYDROSTATIC SYSTEM

1

7107657

HOSE

2

6624289

STRAP, TIE

3

6804251

HANDLE

4

6805768

VALVE

5

6807478

HOSE

6

6807478

HOSE

7

7107648

HOSE

8

7125156

HOSE

9

15KB0404

FTG HYD S Connector

9

79K4

O RING 10

10

17KB0404

FTG HYD ELBOW 90

10

79K4

O RING 10

11

53DM6

NUT Was 1DM6 - A

12

7106592

HOSE

13

83D4

NUT 10

14

6677894

JOYSTICK W/Horn

15

6677895

JOYSTICK W/Pwm switch

16

6688970

VALVE

17

7106613

HOSE

18

7106587

HOSE

19

7106608

HOSE

20

51DM8

NUT

21

7107665

HOSE

22

7107646

HOSE

23

7107649

HOSE

24

7107650

HOSE

25

6679034

MOUNT

26

6814985

BLOCK port

27

7106597

HOSE

28

7106604

HOSE

29

7107644

HOSE

30

7107651

HOSE

31

7000009

PLUG

32

86F3

LOCKNUT

33

15KB0606

FITTING, HYD CONNECTOR

33

79K6

O RING 10

34

15KB0604

FTG HYD S CONNECTOR

34

79K4

O RING 10

35

17KB0606

FITTING

35

79K6

O RING 10

36

24K3

PLUG

36

79K4

O RING 10

37

26GM6020

SCREW

38

26GM10016

SCREW

39

26GM10020

BOLT

40

17C420

BOLT

41

29CM870

BOLT

42

30H85

CLAMP

43

6685156

RETAINER cable tie

44

45K3

FITTING straight

45

7126056

GUIDE
