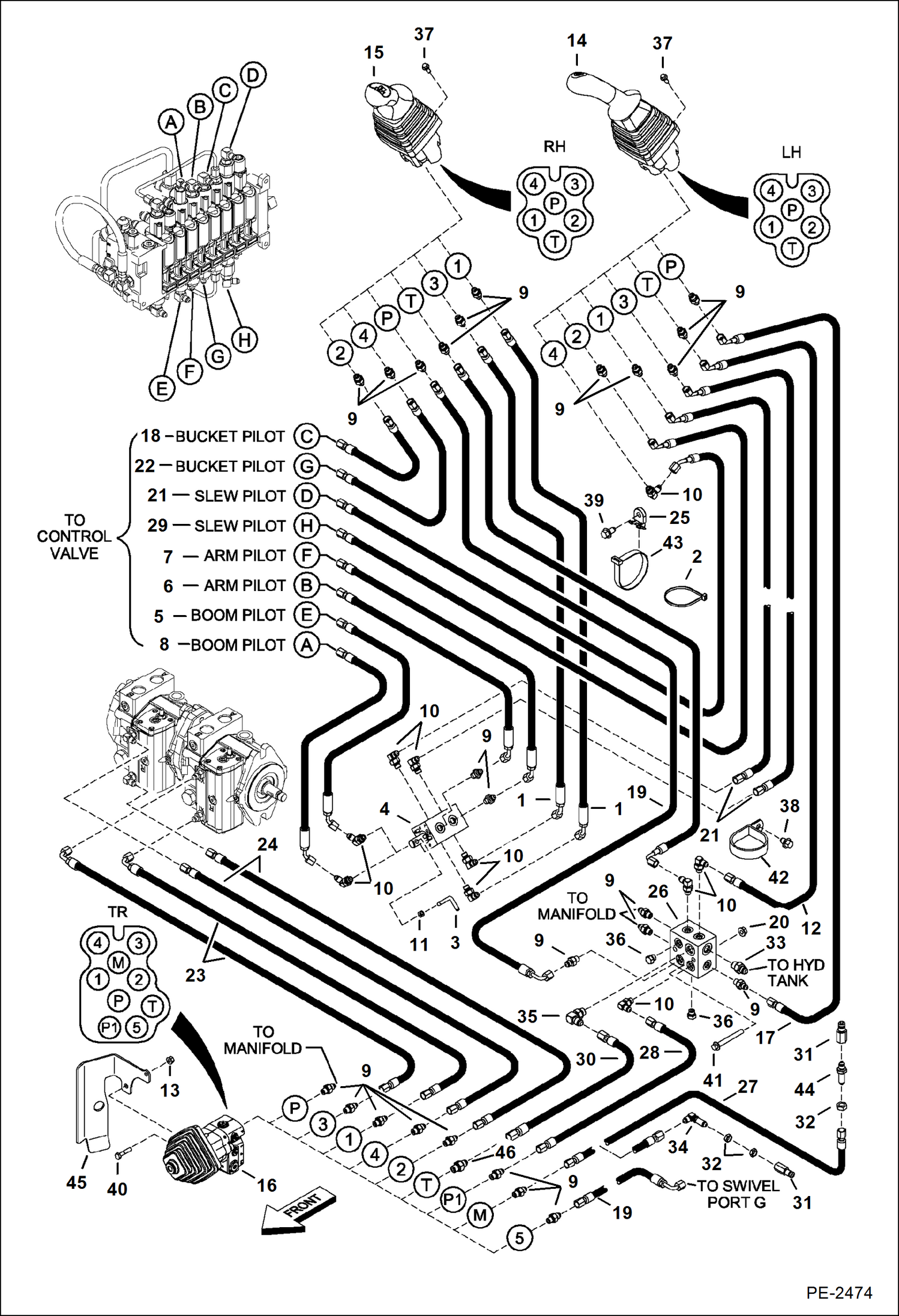

Запчасти Bobcat 430 HYDRAULIC/HYDROSTATIC CIRCUITRY (Pilot) (ISO/STD) (S/N 563012775 & Below) HYDRAULIC/HYDROSTATIC SYSTEM

1

7107657

HOSE Was 6577775 - B

2

6624289

STRAP, TIE

3

6804251

HANDLE

4

6805768

VALVE

5

6807478

HOSE

6

6812855

HOSE Was 6807478 - D

7

7107648

HOSE Was 6813790 - B

8

7125156

HOSE Was 6817266 - B

9

15KB0404

FTG HYD S Connector

9

79K4

O RING 10

10

17KB0404

FTG HYD ELBOW 90

10

79K4

O RING 10

11

53DM6

NUT Was 1DM6 - A

12

7106592

HOSE Was 6578185 - B

13

83D4

NUT 10 Was 43DM6 - B

14

6677894

JOYSTICK W/Horn

15

6677895

JOYSTICK W/Pwm switch

16

6688970

VALVE assy - Was 6685047 - A

17

7106613

HOSE Was 6803091 - B

18

7107647

HOSE Was 6806794 - B

19

7106608

HOSE Was 6807946 & 6814210 - B

20

51DM8

NUT

21

7107665

HOSE Was 6813882 - B

22

7107646

HOSE Was 6813884 - B

23

7107649

HOSE Was 6813888 - B

24

7107650

HOSE Was 6813889 - B

25

6679034

MOUNT Was 30H000100B - B

26

6814985

BLOCK port

27

7106597

HOSE Was 6815220 - B

28

7106604

HOSE Was 6815261 - B

29

7107644

HOSE Was 6815465 - B

30

7107651

HOSE Was 6817066 - B

31

7000009

PLUG

32

86F3

LOCKNUT

32

86F3

LOCKNUT

33

15KB0606

FITTING, HYD CONNECTOR

33

79K6

O RING 10

34

88F3

ELBOW 5

35

17KB0606

FITTING

35

79K6

O RING 10

36

24K3

PLUG

36

79K4

O RING 10

37

26GM6020

SCREW

38

26GM10016

SCREW

39

26GM10020

BOLT

40

17C420

BOLT Was 1CM630 - B

41

29CM870

BOLT

42

30H85

CLAMP

43

6685156

RETAINER cable tie

44

45K3

FITTING straight

45

7126056

GUIDE

46

15KB0604

FTG HYD S CONNECTOR

46

79K4

O RING 10
