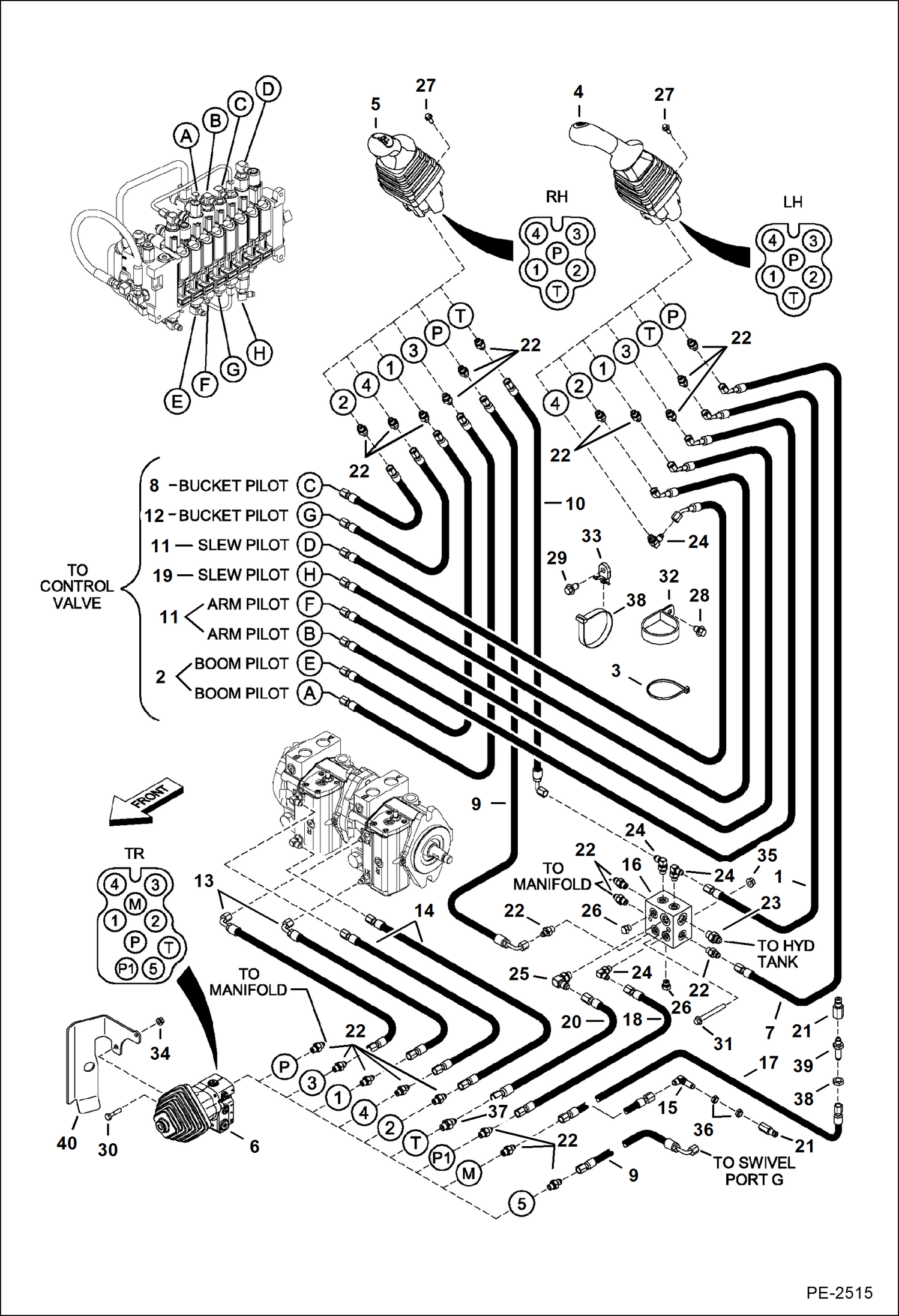

Запчасти Bobcat 430 HYDRAULIC/HYDROSTATIC CIRCUITRY (Pilot) (S/N 563012775 & Below) HYDRAULIC/HYDROSTATIC SYSTEM

1

7106592

HOSE Was 6578185 - B

2

7106590

HOSE Was 6597811 - B

3

6624289

STRAP, TIE

4

6677894

JOYSTICK

5

6677895

JOYSTICK

6

6688970

VALVE assy - Was 6685047 - A

7

7106613

HOSE Was 6803091 - B

8

7107647

HOSE 2 straight ends - use with 90 degree elbow in valve - Was 6806794 - B

8

7106587

HOSE 1 straight & 1 90 degree end - use with staight adapter in valve

9

7106608

HOSE Was 6807946 - B

10

7107648

HOSE Was 6813790 - B

11

7107665

HOSE Was 6813882 - B

12

7107646

HOSE Was 6813884 - B

13

7107649

HOSE Was 6813888 - B

14

7107650

HOSE Was 6813889 - B

15

88F3

ELBOW 5

16

6814985

BLOCK

17

7106597

HOSE Was 6815220 - B

18

7106604

HOSE Was 6815261 - B

19

7107644

HOSE Was 6815465 - B

20

6817066

HOSE Use W/15KB404 adapter in travel control

20

7107651

HOSE Use W/15KB604 adapter in travel control

21

7000009

PLUG

22

15KB0404

FTG HYD S Connector

23

15KB0606

FITTING, HYD CONNECTOR

24

17KB0404

FTG HYD ELBOW 90

25

17KB0606

FITTING

26

24K3

PLUG

27

26GM6020

SCREW

28

26GM10016

SCREW

29

26GM10020

BOLT

30

17C420

BOLT Was 1CM630 - B

31

29CM870

BOLT

32

30H85

CLAMP

33

6679034

MOUNT Was 30H100 - B

34

83D4

NUT 10 Was 43DM6 - B

35

51DM8

NUT

36

86F3

LOCKNUT

36

86F3

LOCKNUT

37

15KB0404

FTG HYD S Connector W/Ref. 20 (6817066 hose)

37

15KB0604

FTG HYD S CONNECTOR Use W/Ref. 20 (7107651 hose)

38

6685156

RETAINER cable tie

39

45K3

FITTING straight

40

7126056

GUIDE
