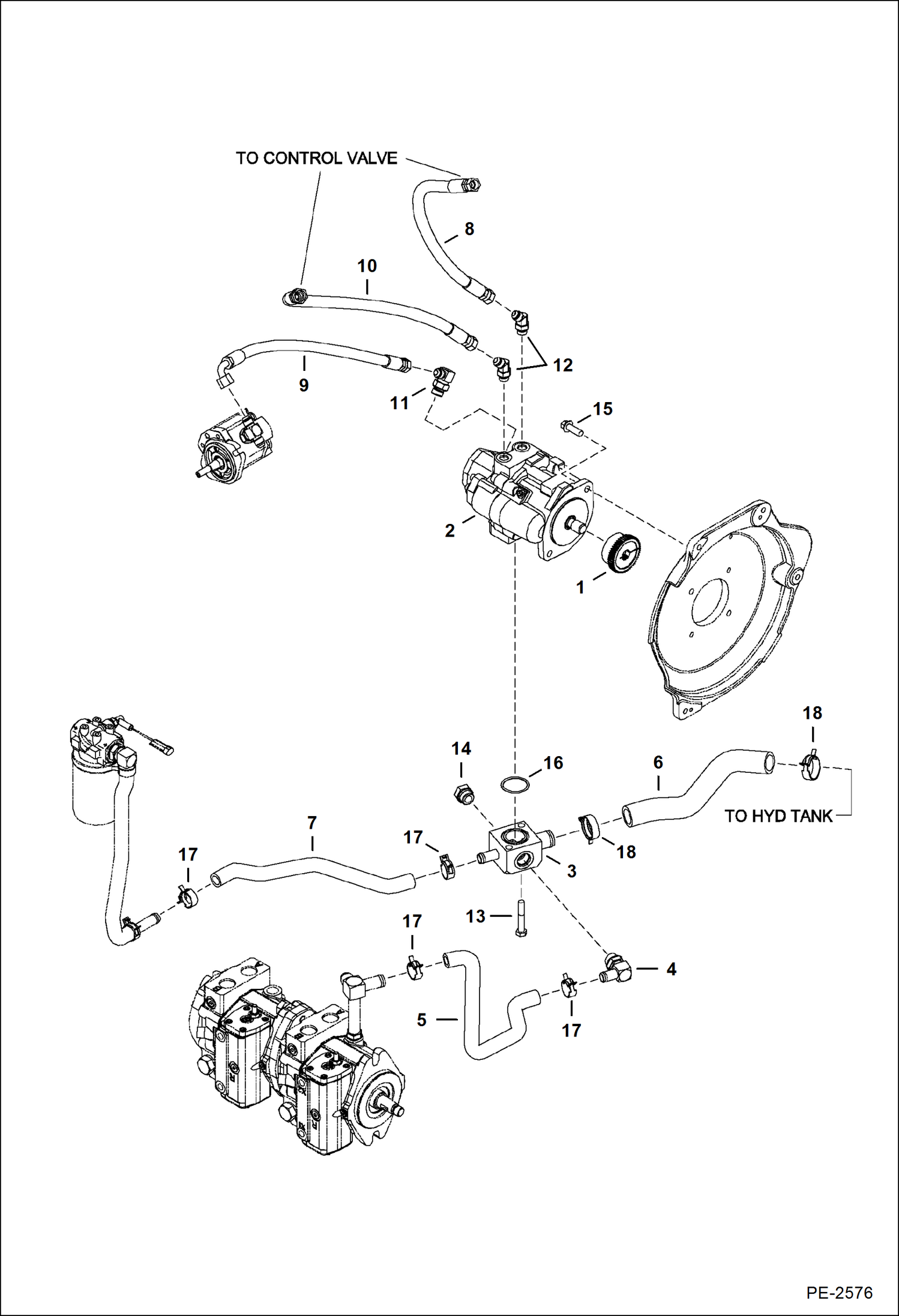

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Hydraulic Pump) HYDRAULIC/HYDROSTATIC SYSTEM

1

6676535

COUPLER

2

6698085

PUMP Was 6685836 - A

3

6814414

MANIFOLD

4

6814419

FITTING

4

79K12

O RING 10

5

6814657

HOSE

6

7159242

HOSE, HYD FORMED Was 7101020 - A

7

7101112

HOSE See Illustration HYDRAULIC CIRCUITRY/ PE2977

8

7102581

HOSE

9

7104651

HOSE

10

7104652

HOSE

11

17KB0810

FITTING, HYD ELBOW

11

7108783

TEE

11

79K10

O RING 10

12

18KB0808

FTG HYD ELBOW 45

12

79K8

O RING 10

13

29CM1270

BOLT Was 1CM1270

14

24K8

PLUG

14

79K12

O RING 10

15

29CM1235

BOLT

16

58K225

O RING 10

17

5HM29

HOSECLAMP

18

5HM42

HOSECLAMP
